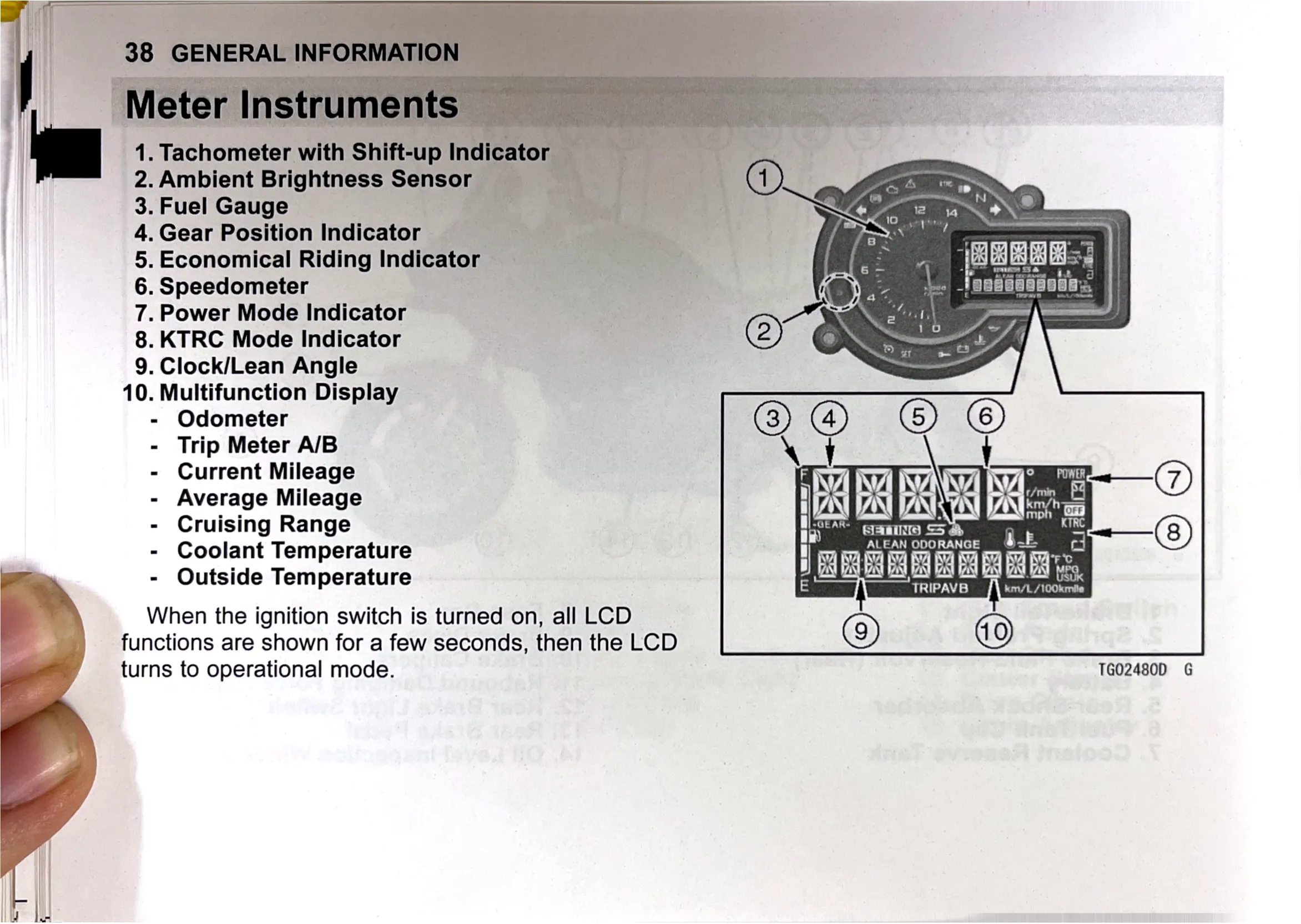

1. Tachometer with Shift-up Indicator
2. Ambient Brightness Sensor
3. Fuel Gauge
4. Gear Position Indicator
5. Economical Riding Indicator
6. Speedometer
7. Power Mode Indicator
8. KTRC Mode Indicator
9. Clock/Lean Angle
10. Multifunction Display

- Odometer

- Trip Meter A/B

- Current Mileage
- Average Mileage
; Cruising Range SiR ace et ae

- Coolant Temperature Hl sai fy m4 Na BA 7A 2 wv.

- Outside Temperature J CEE CEES ie,
When the ignition switch is turned on, all LCD

functions are shown for a few seconds, then the LCD

turns to operational mode. TGO2480D G
