GENERAL INFORMATION 41

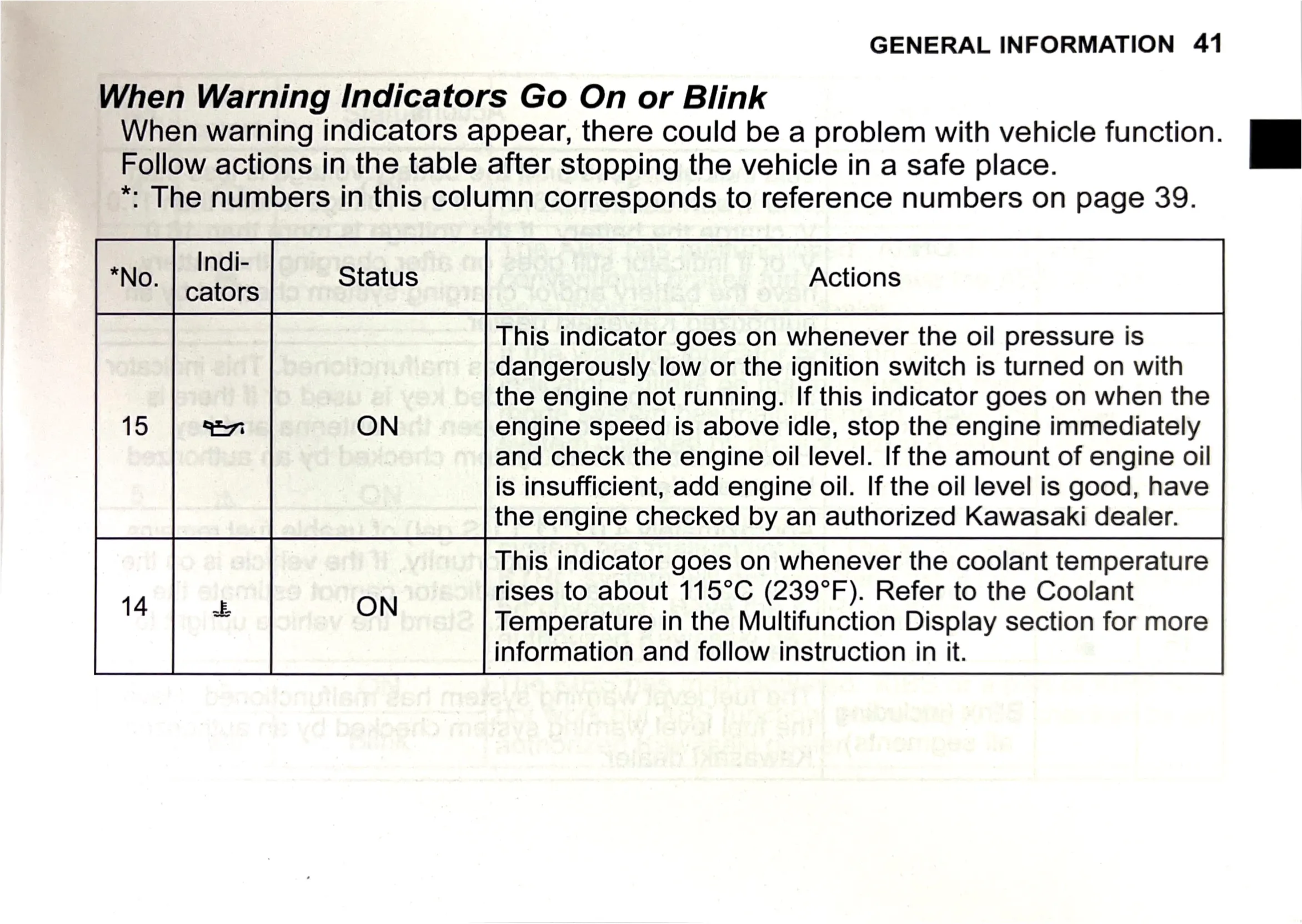

When Warning Indicators Go On or Blink
When warning indicators appear, there could be a problem with vehicle function. P|
Follow actions in the table after stopping the vehicle in a safe place.
*: The numbers in this column corresponds to reference numbers on page 39.

Indi-

cators Status Actions

*No.

This indicator goes on whenever the oil pressure is
dangerously low or the ignition switch is turned on with
the engine not running. If this indicator goes on when the
15 ei ON engine speed is above idle, stop the engine immediately
and check the engine oil level. If the amount of engine oil
is insufficient, add engine oil. If the oil level is good, have
the engine checked by an authorized Kawasaki dealer.

This indicator goes on whenever the coolant temperature
rises to about 115°C (239°F). Refer to the Coolant
Temperature in the Multifunction Display section for more
information and follow instruction in it.

14 ok ON
