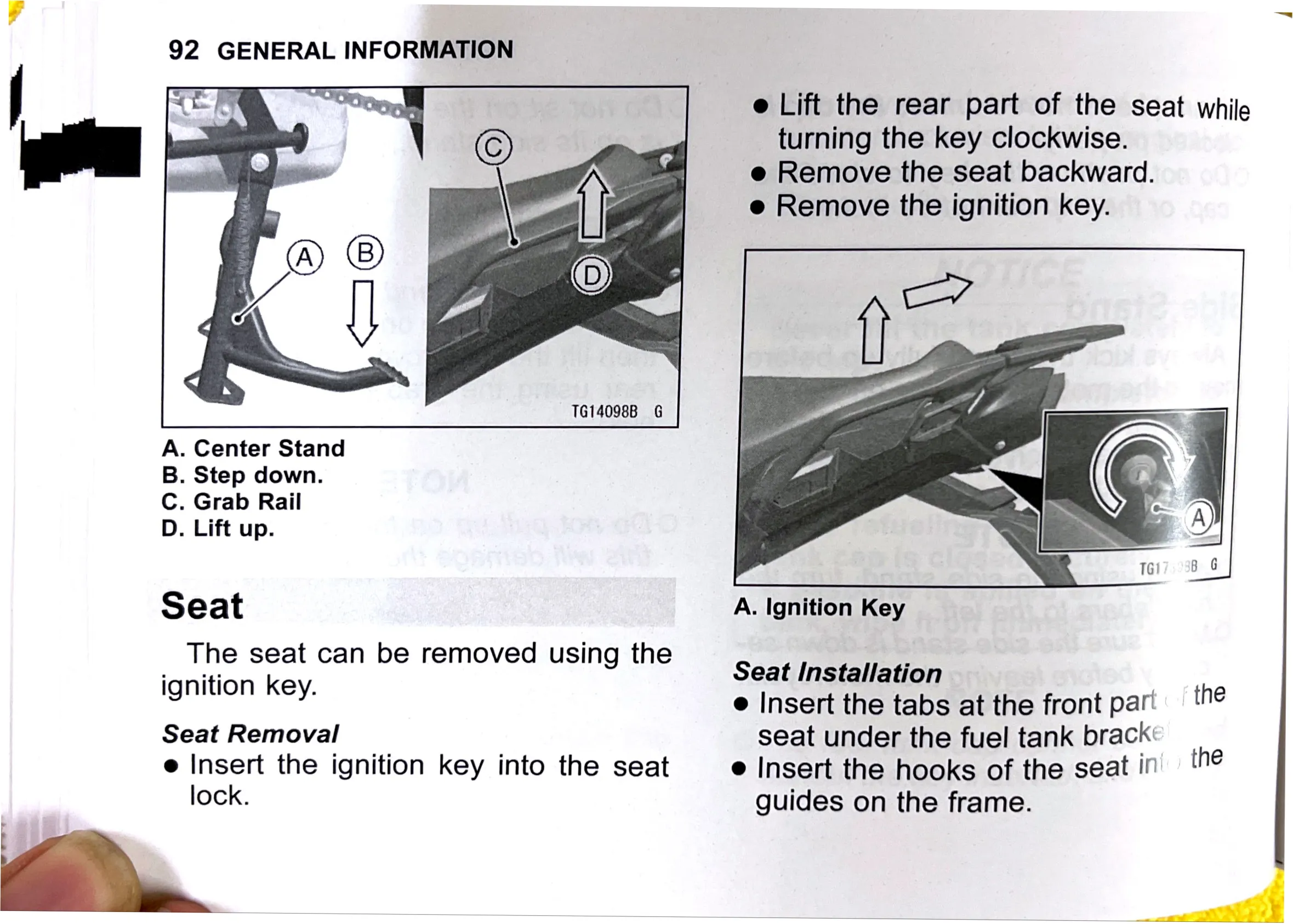

92 GENERAL INFORMATION

TG14098B G

A. Center Stand
B. Step down.
C. Grab Rail

D. Lift up.

Seat

The seat can be removed using the
ignition key.

Seat Removal
e Insert the ignition key into the seat
lock.

e Lift the rear part of the seat while
turning the key clockwise.

e Remove the seat backward.

e Remove the ignition key.

A. Ignition Key

Seat Installation

e Insert the tabs at the front pari the
seat under the fuel tank brack:

e Insert the hooks of the seat in [ne
guides on the frame.
