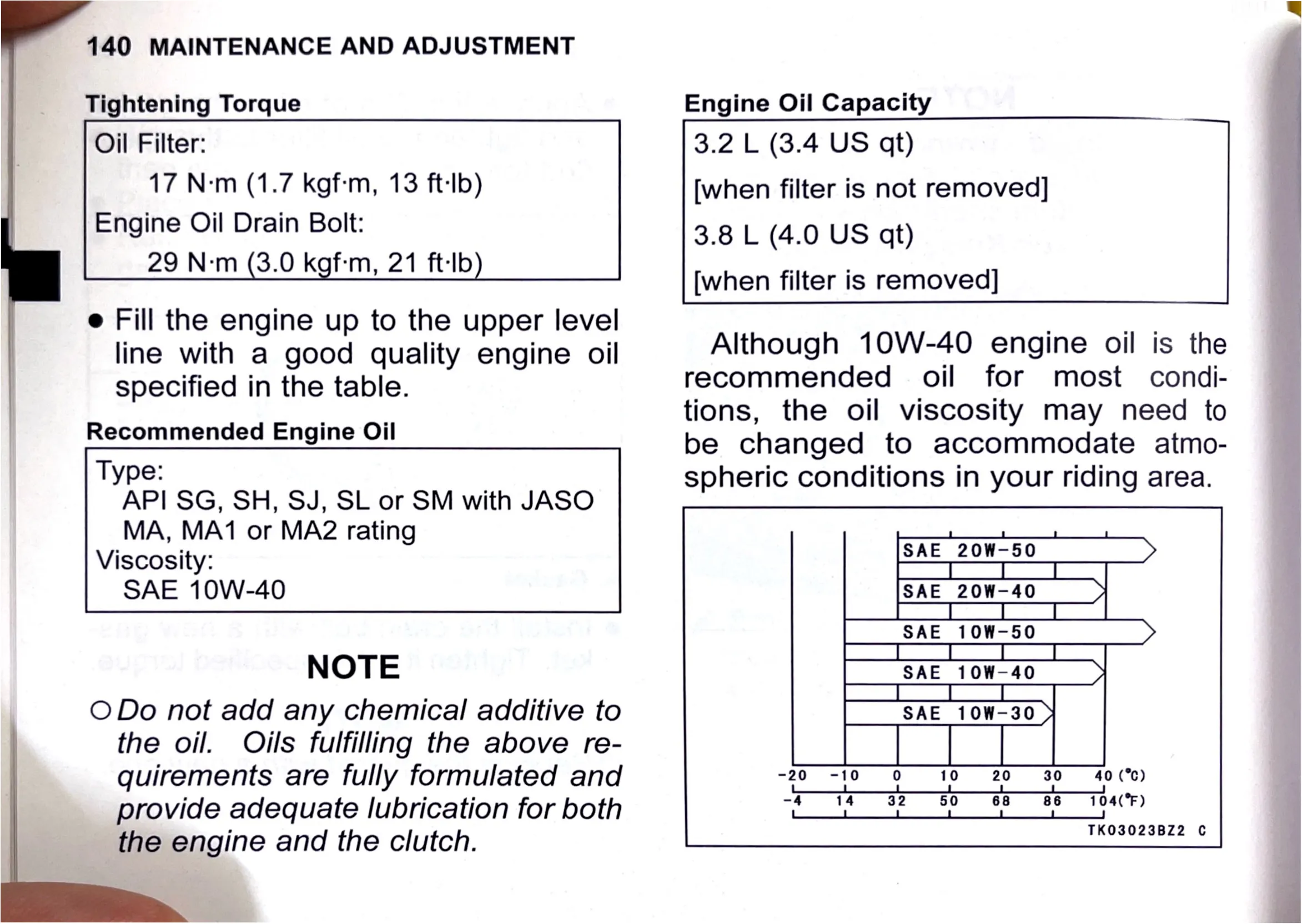

F 140 MAINTENANCE AND ADJUSTMENT

Tightening Torque

Engine Oil Capacity

Oil Filter:

17 N-m (1.7 kgf-m, 13 ft-Ib)
Engine Oil Drain Bolt:

29 N-m (3.0 kgf-m, 21 ft-lb)

e Fill the engine up to the upper level
line with a good quality engine oil
specified in the table.

Recommended Engine Oil

Type:
API SG, SH, SJ, SL or SM with JASO
MA, MA‘ or MA2 rating

Viscosity:
SAE 10W-40

NOTE

ODo not add any chemical additive to
the oil. Oils fulfilling the above re-
quirements are fully formulated and
provide adequate lubrication for both
the engine and the clutch.

3.2 L (3.4 US qt)
[when filter is not removed]
3.8 L (4.0 US qt)

[when filter is removed]

Although 10W-40 engine oil is the
recommended oil for most condi-
tions, the oil viscosity may need to
be changed to accommodate atmo-
spheric conditions in your riding area.

SAE 20W-50 »
SAE DOW-a0

SAE 10W-50 »
‘SAE TOW_40 y
‘SAE T0W-30))

~20 -10 0 10 20 30 40 (°C)
i L L L L J

-4 14 32 50 68 86 104(°F)
L rt 1 1 L 1 J

TKO3023BZ2 C
