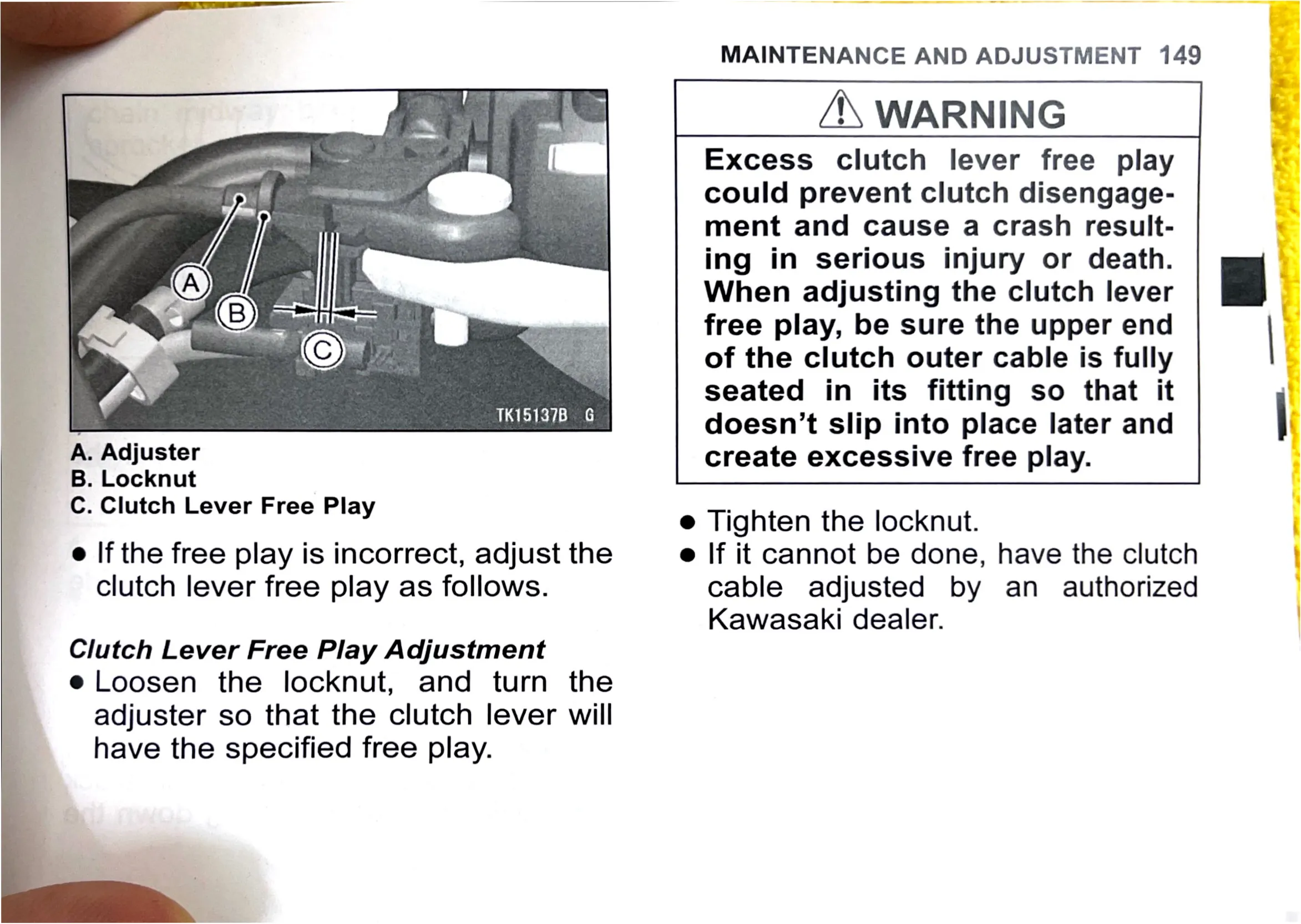

MAINTENANCE AND ADJUSTMENT 149

/\, WARNING

Excess clutch lever free play
could prevent clutch disengage-
ment and cause a crash result-
ing in serious injury or death.
When adjusting the clutch lever
free play, be sure the upper end

|’ of the clutch outer cable is fully

| : seated in its fitting so that it

L | doesn’t slip into place later and

A. Adjuster create excessive free play.

B. Locknut

C. Clutch Lever Free Play e Tighten the locknut

e If the free play is incorrect, adjust the e If it cannot be done, have the clutch
clutch lever free play as follows. cable adjusted by an authorized

Kawasaki dealer.
Clutch Lever Free Play Adjustment
e Loosen the locknut, and turn the
adjuster so that the clutch lever will
have the specified free play.
