SS AS i

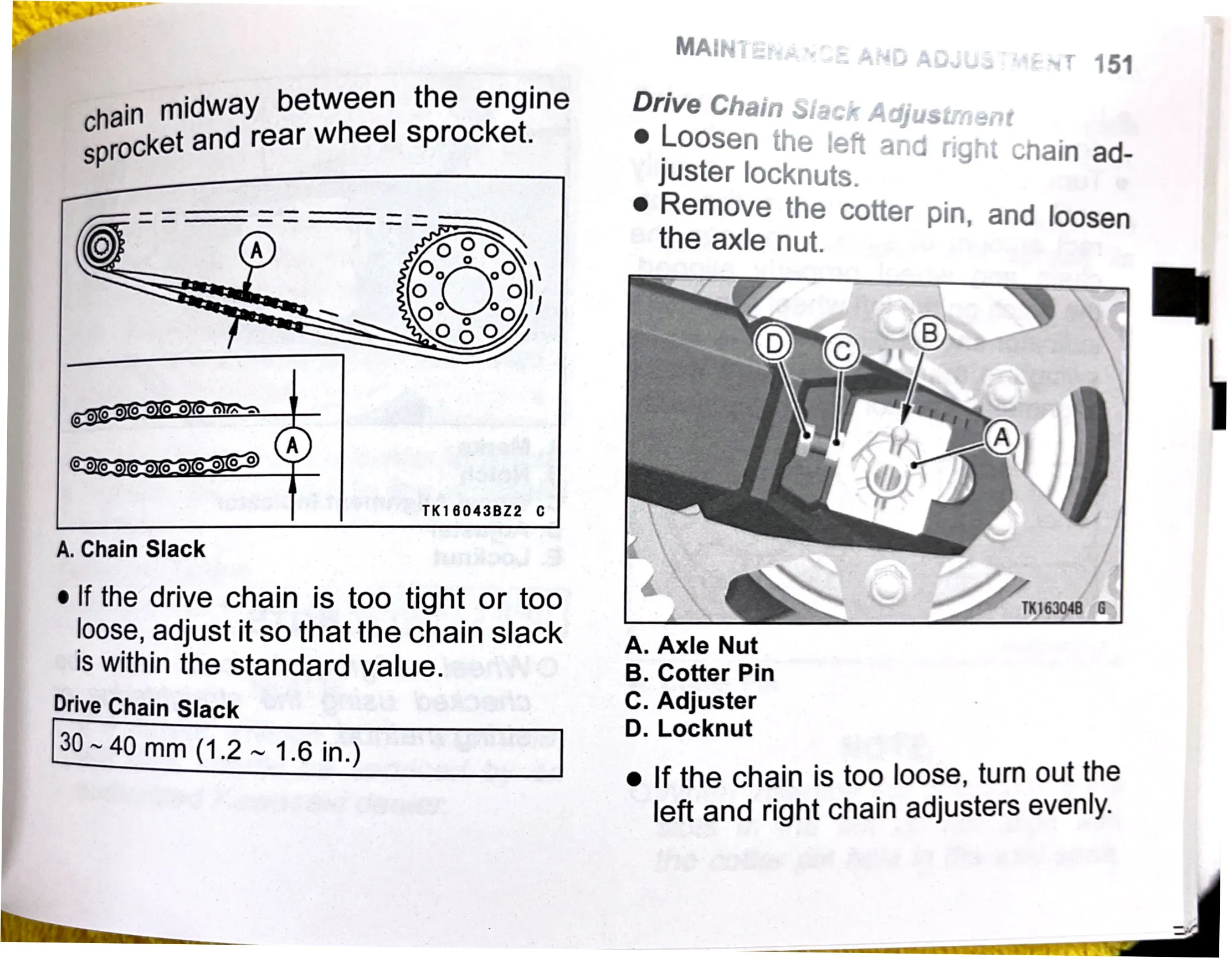

| .. midway between the engine
orrocket and rear wheel sprocket.

——_

TK16043BZ2 C

A. Chain Slack

e If the drive chain is too tight or too
loose, adjust it so that the chain slack
is within the standard value.

'___ Drive Chain Slack
_ [30~ 40 mm (1.2 ~ 1.6 in.)

7

MAIN 151
Drive Chain |
e Loosen the left = Nain ad-
Juster locknuts.
@ Remove the cotter pin, and loosen
the axle nut.

A. Axle Nut
B. Cotter Pin
C. Adjuster
D. Locknut

e If the chain is too loose, turn out the
left and right chain adjusters evenly.
