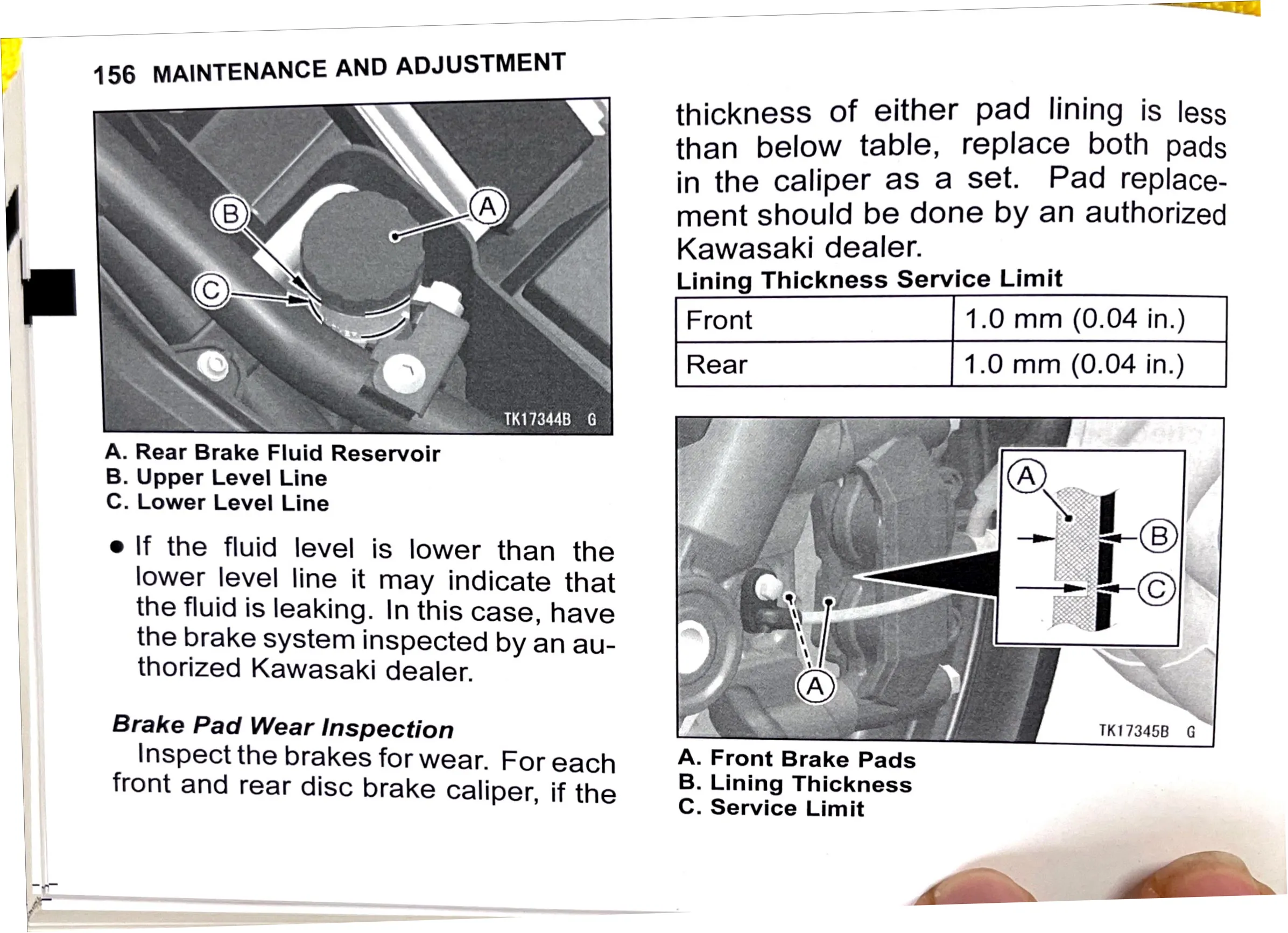

ae, TK17344B. G
A. Rear Brake Fluid Reservoir

B. Upper Level Line

C. Lower Level Line

e lf the fluid level is lower than the
lower level line it may indicate that
the fluid is leaking. In this case, have

the brake system inspected by an au-
thorized Kawasaki dealer.

Brake Pad Wear Inspection
Inspect the brakes for wear. For each
front and rear disc brake Caliper, if the

thickness of either pad lining is less
than below table, replace both pads
in the caliper as a set. Pad replace-
ment should be done by an authorized
Kawasaki dealer.

Lining Thickness Service Limit

Front 1.0 mm (0.04 in.)
Rear 1.0 mm (0.04 in.)

Ba

A. Front Brake Pads

B. Lining Thickness
C. Service Limit
