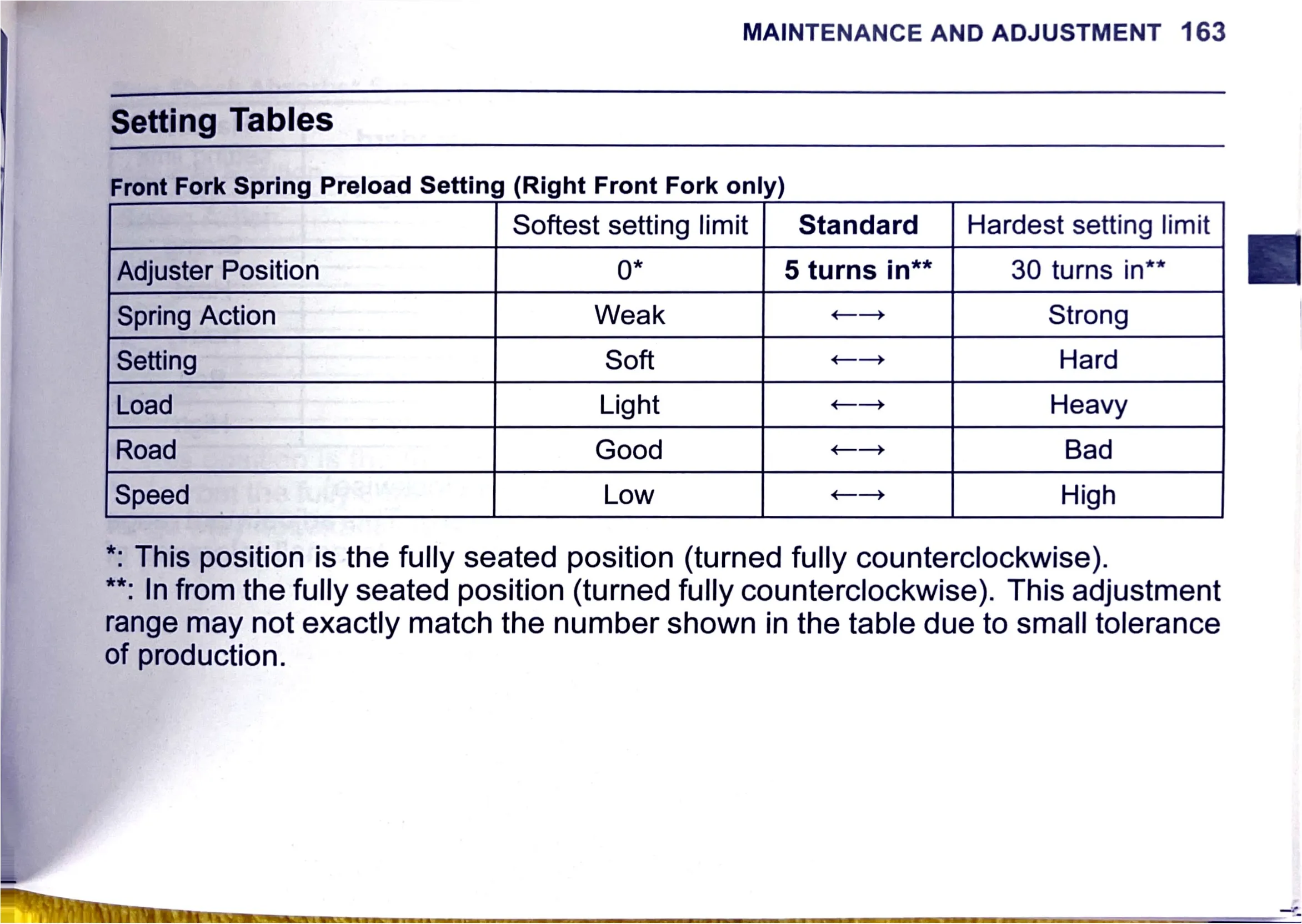

MAINTENANCE AND ADJUSTMENT 163

Setting Tables

Front Fork Spring Preload Setting (Right Front Fork only)

Softest setting limit | Standard | Hardest setting limit
Adjuster Position 0* 5 turns in** 30 turns in**
Spring Action Weak —— Strong
Setting Soft — Hard
Load Light — Heavy
Road Good —> Bad
Speed Low — High

*: This position is the fully seated position (turned fully counterclockwise).
“: In from the fully seated position (turned fully counterclockwise). This adjustment
range may not exactly match the number shown in the table due to small tolerance

of production.
