~ 4

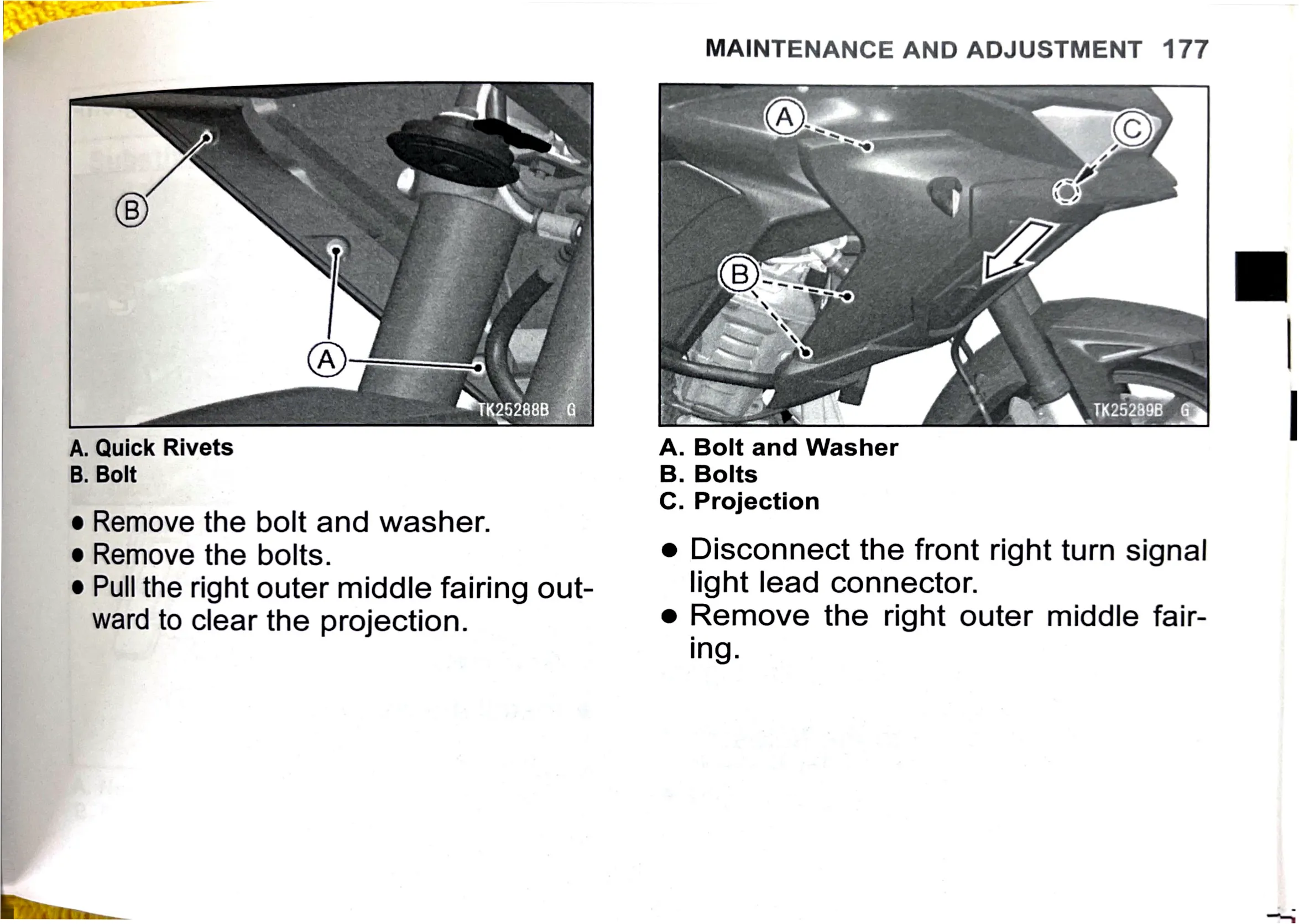

A. Quick Rivets

B. Bolt

e Remove the bolt and washer.

e Remove the bolts.

e Pull the right outer middle fairing out-
ward to clear the projection.

MAINTENANCE AND ADJUSTMENT 177

Pe

Pe Woe

A. Bolt and Washer
B. Bolts
C. Projection

e Disconnect the front right turn signal
light lead connector.

@ Remove the right outer middle fair-
ing.
