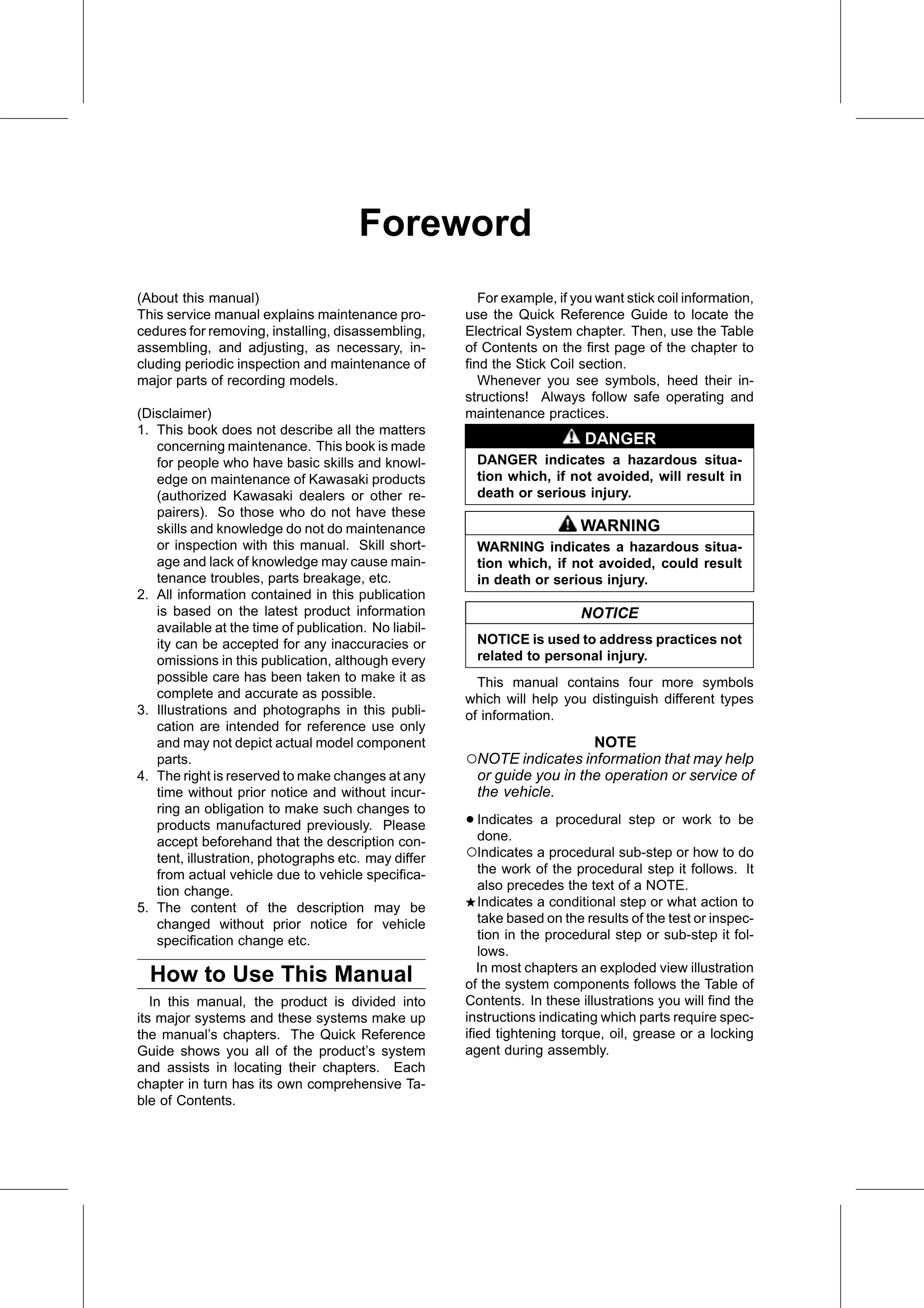

Foreword
(About this manual) For example, if you want stick coil information,
This service manual explains maintenance pro- use the Quick Reference Guide to locate the
cedures for removing, installing, disassembling, Electrical System chapter. Then, use the Table
assembling, and adjusting, as necessary, in- of Contents on the first page of the chapter to
cluding periodic inspection and maintenance of find the Stick Coil section.
major parts of recording models. Whenever you see symbols, heed their in-
structions! Always follow safe operating and
(Disclaimer) maintenance practices.
1. This book does not describe all the matters
concerning maintenance. This book is made DANGER
for people who have basic skills and knowl- DANGER indicates a hazardous situa-
edge on maintenance of Kawasaki products tion which, if not avoided, will result in
(authorized Kawasaki dealers or other re- death or serious injury.
pairers). So those who do not have these
skills and knowledge do not do maintenance WARNING
or inspection with this manual. Skill short- WARNING indicates a hazardous situa-
age and lack of knowledge may cause main- tion which, if not avoided, could result
tenance troubles, parts breakage, etc. in death or serious injury.
2. All information contained in this publication
is based on the latest product information NOTICE
available at the time of publication. No liabil-
ity can be accepted for any inaccuracies or NOTICE is used to address practices not
omissions in this publication, although every related to personal injury.
possible care has been taken to make it as This manual contains four more symbols
complete and accurate as possible. which will help you distinguish different types
3. Illustrations and photographs in this publi- of information.
cation are intended for reference use only
and may not depict actual model component NOTE
parts. ○NOTE indicates information that may help
4. The right is reserved to make changes at any or guide you in the operation or service of
time without prior notice and without incur- the vehicle.
ring an obligation to make such changes to
products manufactured previously. Please • Indicates
done.
a procedural step or work to be
accept beforehand that the description con-
tent, illustration, photographs etc. may differ ○Indicates a procedural sub-step or how to do
from actual vehicle due to vehicle specifica- the work of the procedural step it follows. It
tion change. also precedes the text of a NOTE.
5. The content of the description may be Indicates a conditional step or what action to
changed without prior notice for vehicle take based on the results of the test or inspec-
specification change etc. tion in the procedural step or sub-step it fol-
lows.
In most chapters an exploded view illustration
How to Use This Manual of the system components follows the Table of
In this manual, the product is divided into Contents. In these illustrations you will find the
its major systems and these systems make up instructions indicating which parts require spec-
the manual’s chapters. The Quick Reference ified tightening torque, oil, grease or a locking
Guide shows you all of the product’s system agent during assembly.
and assists in locating their chapters. Each
chapter in turn has its own comprehensive Ta-
ble of Contents.
