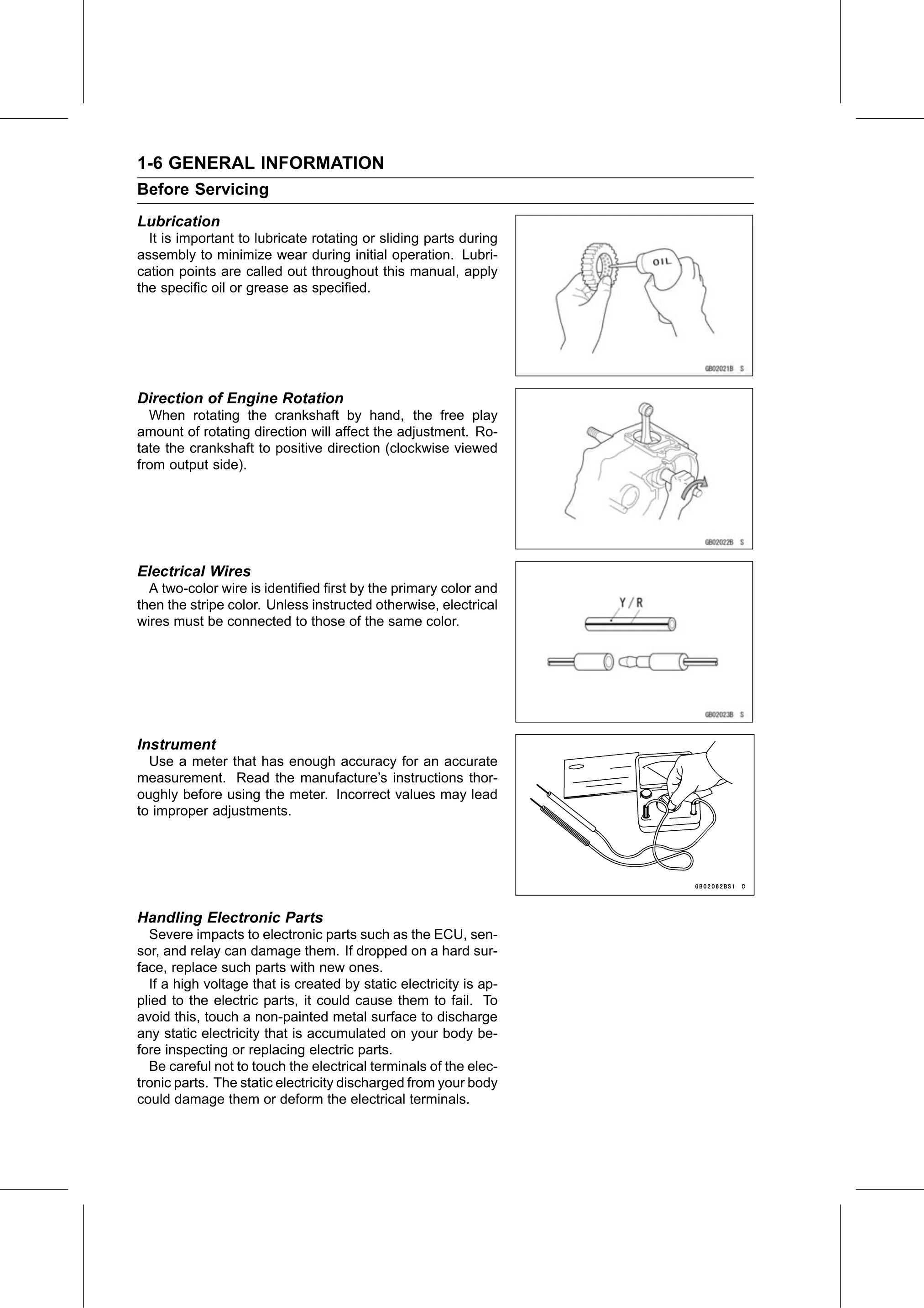

1-6 GENERAL INFORMATION
Before Servicing
Lubrication
  It is important to lubricate rotating or sliding parts during
assembly to minimize wear during initial operation. Lubri-
cation points are called out throughout this manual, apply
the specific oil or grease as specified.

Direction of Engine Rotation
  When rotating the crankshaft by hand, the free play
amount of rotating direction will affect the adjustment. Ro-
tate the crankshaft to positive direction (clockwise viewed
from output side).

Electrical Wires
  A two-color wire is identified first by the primary color and
then the stripe color. Unless instructed otherwise, electrical
wires must be connected to those of the same color.

Instrument
  Use a meter that has enough accuracy for an accurate
measurement. Read the manufacture’s instructions thor-
oughly before using the meter. Incorrect values may lead
to improper adjustments.

Handling Electronic Parts
  Severe impacts to electronic parts such as the ECU, sen-
sor, and relay can damage them. If dropped on a hard sur-
face, replace such parts with new ones.
  If a high voltage that is created by static electricity is ap-
plied to the electric parts, it could cause them to fail. To
avoid this, touch a non-painted metal surface to discharge
any static electricity that is accumulated on your body be-
fore inspecting or replacing electric parts.
  Be careful not to touch the electrical terminals of the elec-
tronic parts. The static electricity discharged from your body
could damage them or deform the electrical terminals.
