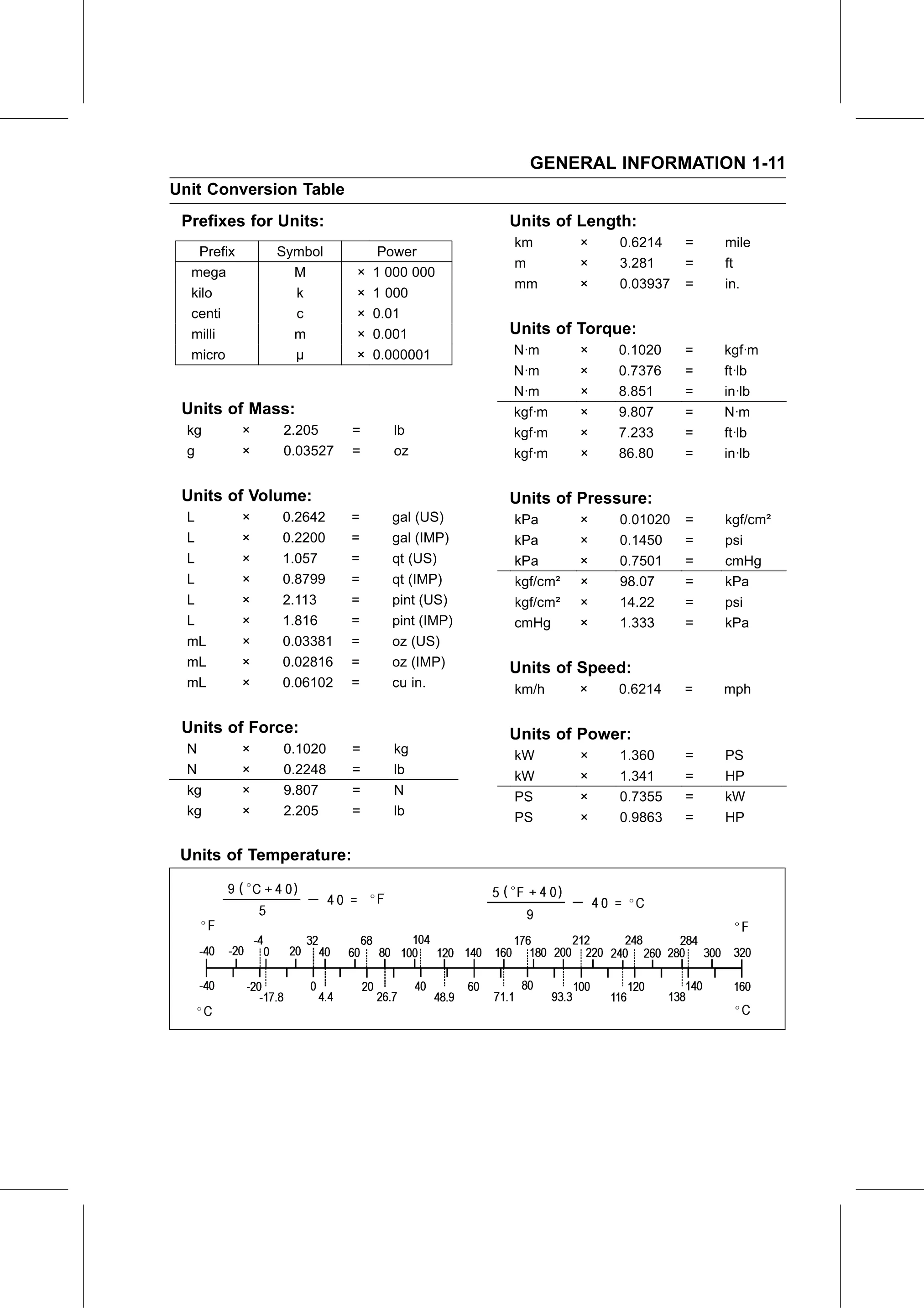

GENERAL INFORMATION 1-11
Unit Conversion Table
 Prefixes for Units:                       Units of Length:
                                           km        ×   0.6214    =   mile
   Prefix       Symbol       Power
                                           m         ×   3.281     =   ft
  mega            M       × 1 000 000
                                           mm        ×   0.03937   =   in.
  kilo            k       × 1 000
  centi           c       × 0.01
  milli           m       × 0.001          Units of Torque:
  micro           μ       × 0.000001       N·m       ×   0.1020    =   kgf·m
                                           N·m       ×   0.7376    =   ft·lb
                                           N·m       ×   8.851     =   in·lb
 Units of Mass:                            kgf·m     ×   9.807     =   N·m
  kg        ×   2.205     =    lb          kgf·m     ×   7.233     =   ft·lb
  g         ×   0.03527   =    oz          kgf·m     ×   86.80     =   in·lb

 Units of Volume:                          Units of Pressure:
  L         ×   0.2642    =   gal (US)     kPa       ×   0.01020   =   kgf/cm²
  L         ×   0.2200    =   gal (IMP)    kPa       ×   0.1450    =   psi
  L         ×   1.057     =   qt (US)      kPa       ×   0.7501    =   cmHg
  L         ×   0.8799    =   qt (IMP)     kgf/cm²   ×   98.07     =   kPa
  L         ×   2.113     =   pint (US)    kgf/cm²   ×   14.22     =   psi
  L         ×   1.816     =   pint (IMP)   cmHg      ×   1.333     =   kPa
  mL        ×   0.03381   =   oz (US)
  mL        ×   0.02816   =   oz (IMP)     Units of Speed:
  mL        ×   0.06102   =   cu in.       km/h      ×   0.6214    =   mph

 Units of Force:                           Units of Power:
  N         ×   0.1020    =    kg          kW        ×   1.360     =   PS
  N         ×   0.2248    =    lb          kW        ×   1.341     =   HP
  kg        ×   9.807     =    N           PS        ×   0.7355    =   kW
  kg        ×   2.205     =    lb          PS        ×   0.9863    =   HP

 Units of Temperature:
