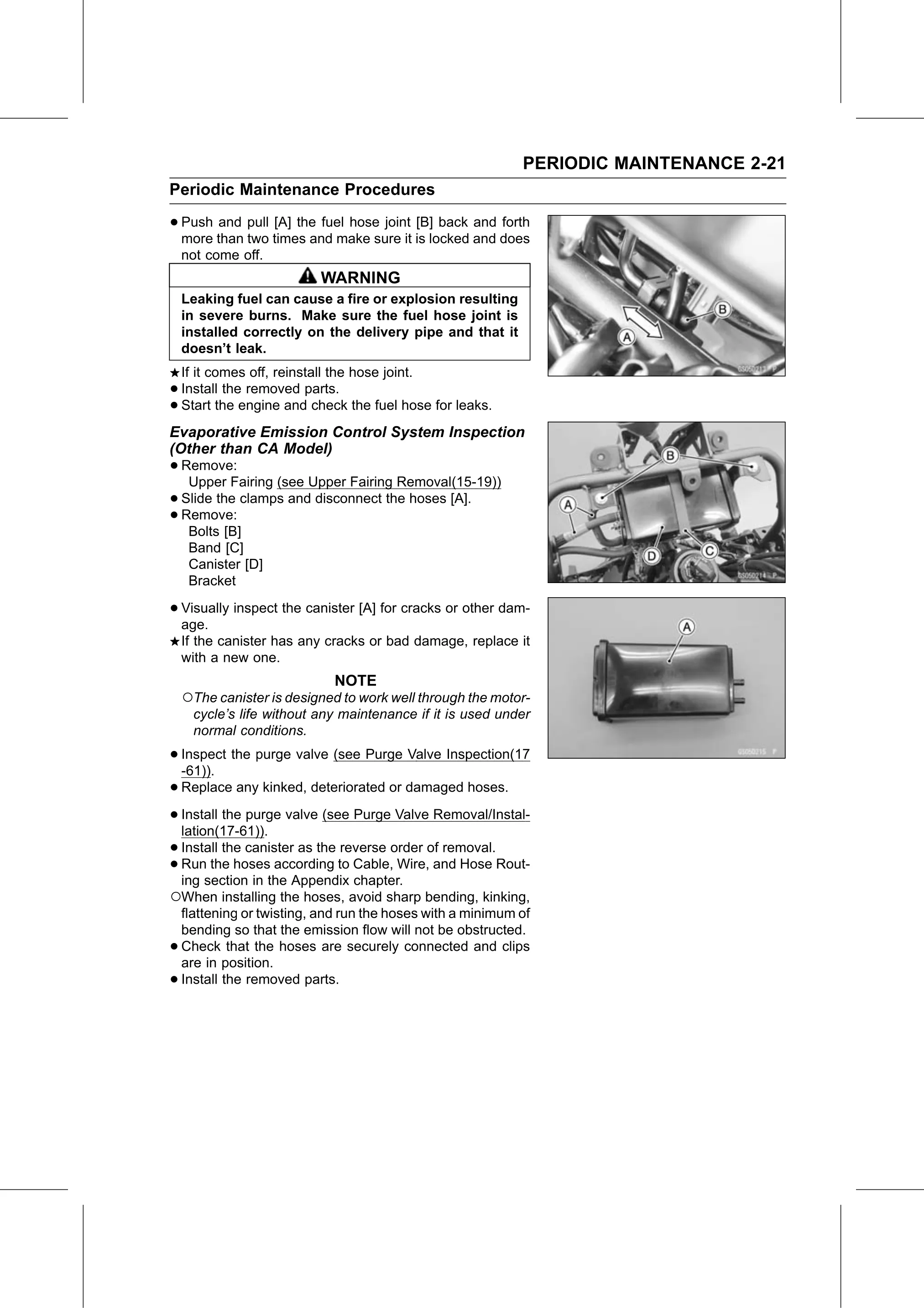

PERIODIC MAINTENANCE 2-21
Periodic Maintenance Procedures

• Push and pull [A] the fuel hose joint [B] back and forth
  more than two times and make sure it is locked and does
    not come off.
                           WARNING
    Leaking fuel can cause a fire or explosion resulting
    in severe burns. Make sure the fuel hose joint is
    installed correctly on the delivery pipe and that it
    doesn’t leak.
    If it comes off, reinstall the hose joint.
•   Install the removed parts.
•   Start the engine and check the fuel hose for leaks.
Evaporative Emission Control System Inspection
(Other than CA Model)
• Remove:
   Upper Fairing (see Upper Fairing Removal(15-19))
• Slide the clamps and disconnect the hoses [A].
• Bolts [B]
  Remove:

     Band [C]
     Canister [D]
     Bracket

• Visually
  age.
           inspect the canister [A] for cracks or other dam-

    If the canister has any cracks or bad damage, replace it
    with a new one.
                             NOTE
    ○The canister is designed to work well through the motor-
      cycle’s life without any maintenance if it is used under
      normal conditions.

• Inspect
  -61)).
            the purge valve (see Purge Valve Inspection(17

• Replace any kinked, deteriorated or damaged hoses.
• Install the purge valve (see Purge Valve Removal/Instal-
  lation(17-61)).
• Install the canister as the reverse order of removal.
• ing section
  Run  the   hoses according to Cable, Wire, and Hose Rout-
                in the Appendix chapter.
○When installing the hoses, avoid sharp bending, kinking,
    flattening or twisting, and run the hoses with a minimum of
    bending so that the emission flow will not be obstructed.
•   Check that the hoses are securely connected and clips
    are in position.
•   Install the removed parts.
