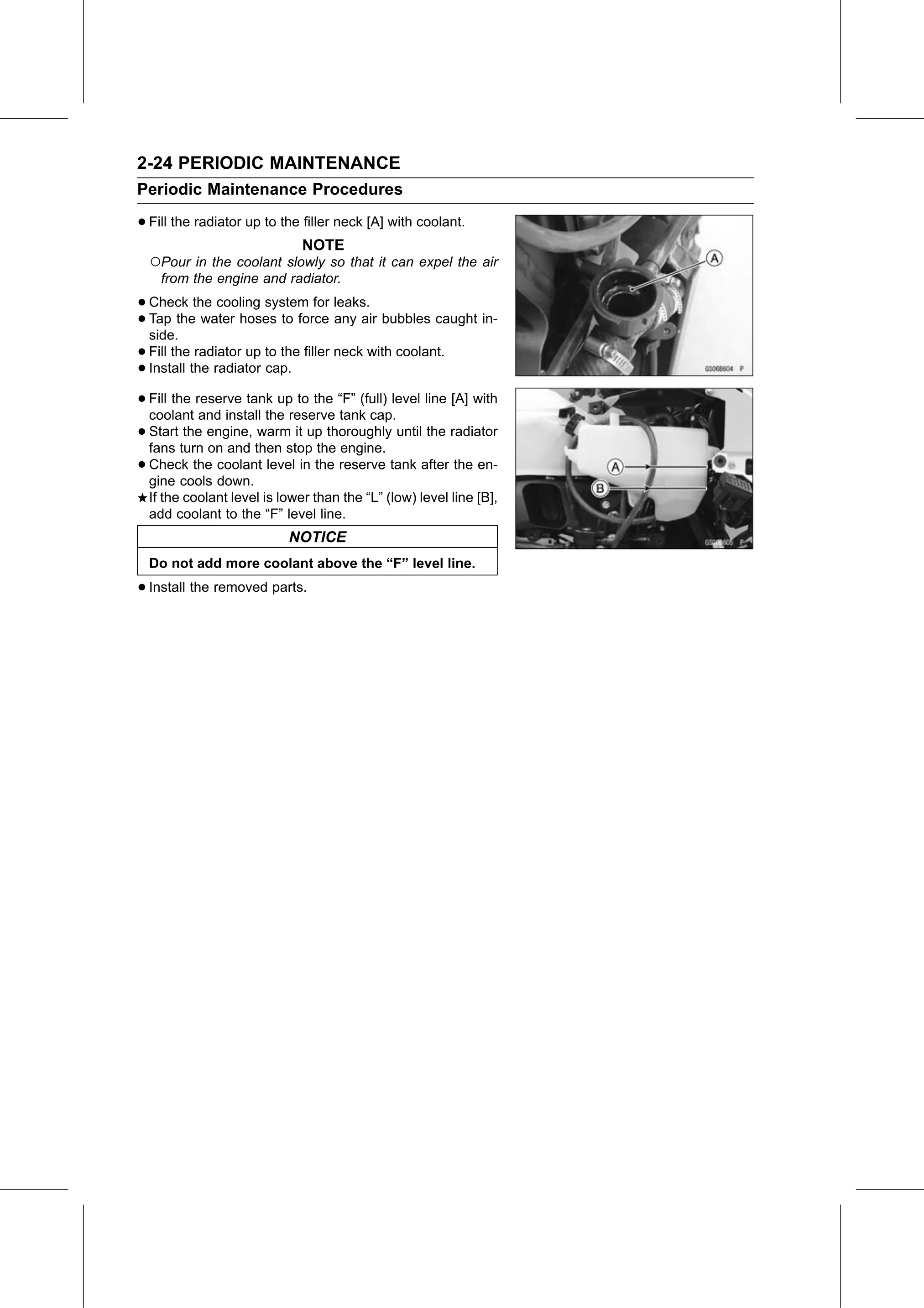

Service Manual (KLZ1000C) — page 46 of 762

Text on this page

2-24 PERIODIC MAINTENANCE
Periodic Maintenance Procedures

• Fill the radiator up to the filler neck [A] with coolant.
                              NOTE
  ○Pour in the coolant slowly so that it can expel the air
    from the engine and radiator.

• Check    the cooling system for leaks.
• side. water hoses to force any air bubbles caught in-
  Tap   the

• Fill the radiator up to the filler neck with coolant.
• Install the radiator cap.

• Fill the reserve tank up to the “F” (full) level line [A] with
  coolant and install the reserve tank cap.
• Start  the engine, warm it up thoroughly until the radiator
  fans turn on and then stop the engine.
• Check    the coolant level in the reserve tank after the en-
  gine cools down.
  If the coolant level is lower than the “L” (low) level line [B],
  add coolant to the “F” level line.
                           NOTICE
  Do not add more coolant above the “F” level line.

• Install the removed parts.
