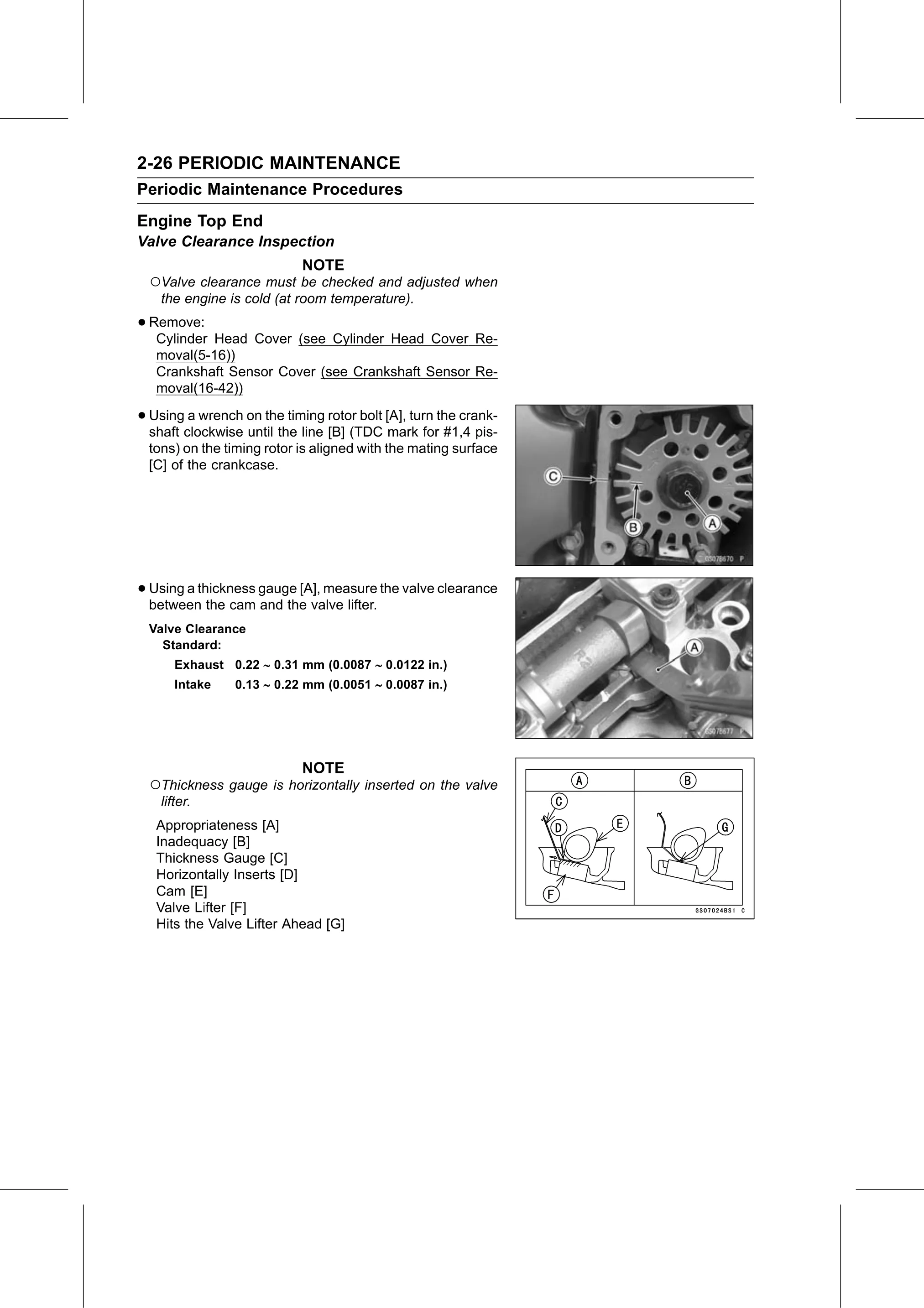

2-26 PERIODIC MAINTENANCE
Periodic Maintenance Procedures
Engine Top End
Valve Clearance Inspection
                            NOTE
  ○Valve clearance must be checked and adjusted when
    the engine is cold (at room temperature).

• Remove:
   Cylinder Head Cover (see Cylinder Head Cover Re-
   moval(5-16))
   Crankshaft Sensor Cover (see Crankshaft Sensor Re-
   moval(16-42))

• Using  a wrench on the timing rotor bolt [A], turn the crank-
  shaft clockwise until the line [B] (TDC mark for #1,4 pis-
  tons) on the timing rotor is aligned with the mating surface
  [C] of the crankcase.

• Using a thickness gauge [A], measure the valve clearance
  between the cam and the valve lifter.
  Valve Clearance
    Standard:
       Exhaust 0.22  0.31 mm (0.0087  0.0122 in.)
       Intake    0.13  0.22 mm (0.0051  0.0087 in.)

                            NOTE
  ○Thickness gauge is horizontally inserted on the valve
    lifter.
   Appropriateness [A]
   Inadequacy [B]
   Thickness Gauge [C]
   Horizontally Inserts [D]
   Cam [E]
   Valve Lifter [F]
   Hits the Valve Lifter Ahead [G]
