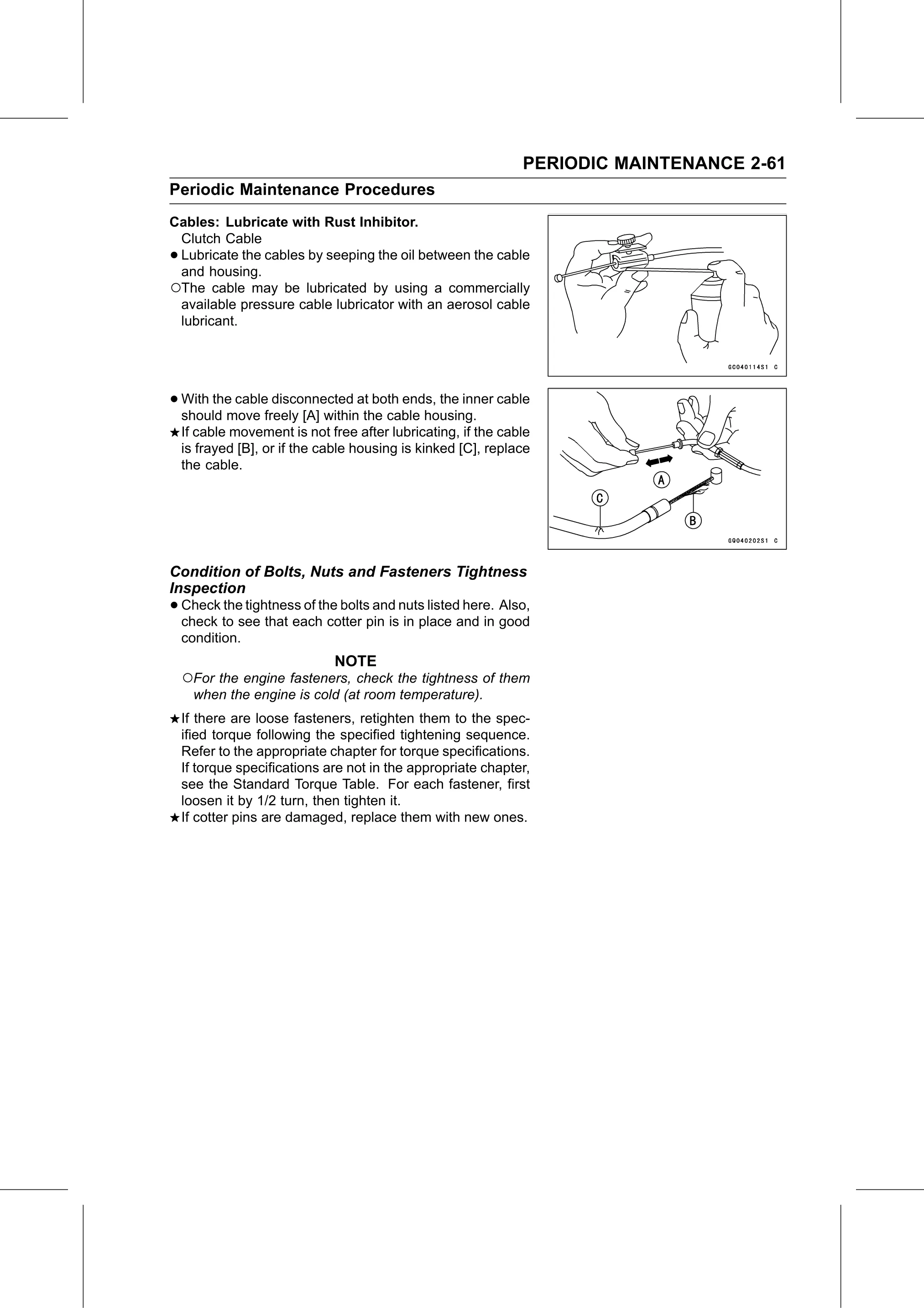

PERIODIC MAINTENANCE 2-61
Periodic Maintenance Procedures
Cables: Lubricate with Rust Inhibitor.
 Clutch Cable
•Lubricate the cables by seeping the oil between the cable
 and housing.
○The cable may be lubricated by using a commercially
 available pressure cable lubricator with an aerosol cable
 lubricant.

• With the cable disconnected at both ends, the inner cable
  should move freely [A] within the cable housing.
    If cable movement is not free after lubricating, if the cable
    is frayed [B], or if the cable housing is kinked [C], replace
    the cable.

Condition of Bolts, Nuts and Fasteners Tightness
Inspection
• Check the tightness of the bolts and nuts listed here. Also,
  check to see that each cotter pin is in place and in good
    condition.
                              NOTE
    ○For the engine fasteners, check the tightness of them
      when the engine is cold (at room temperature).
    If there are loose fasteners, retighten them to the spec-
    ified torque following the specified tightening sequence.
    Refer to the appropriate chapter for torque specifications.
    If torque specifications are not in the appropriate chapter,
    see the Standard Torque Table. For each fastener, first
    loosen it by 1/2 turn, then tighten it.
    If cotter pins are damaged, replace them with new ones.
