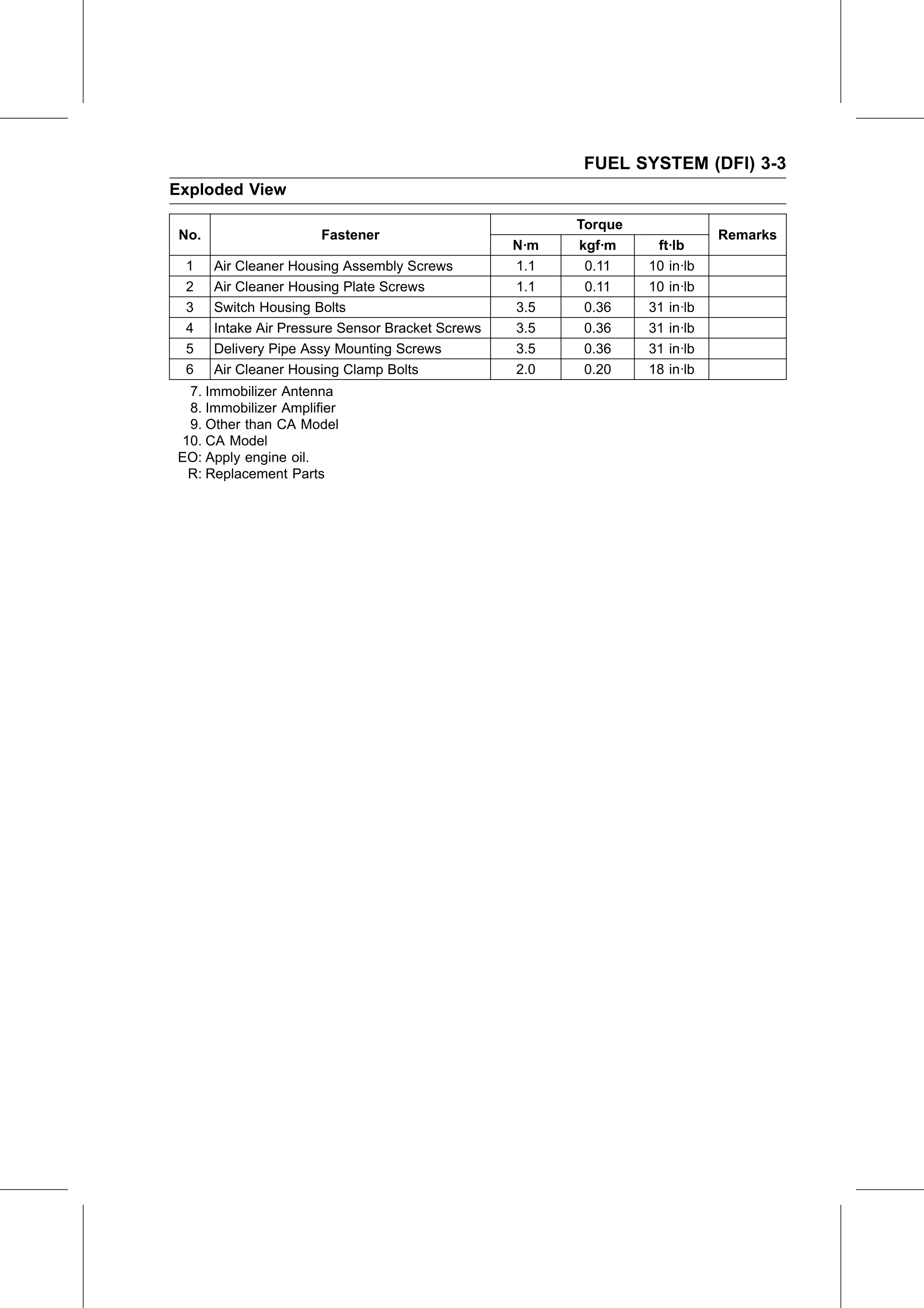

FUEL SYSTEM (DFI) 3-3
Exploded View

                                                         Torque
 No.                   Fastener                                              Remarks
                                                   N·m   kgf·m     ft·lb
 1     Air Cleaner Housing Assembly Screws         1.1    0.11    10 in·lb
 2     Air Cleaner Housing Plate Screws            1.1    0.11    10 in·lb
 3     Switch Housing Bolts                        3.5    0.36    31 in·lb
 4     Intake Air Pressure Sensor Bracket Screws   3.5    0.36    31 in·lb
 5     Delivery Pipe Assy Mounting Screws          3.5    0.36    31 in·lb
 6     Air Cleaner Housing Clamp Bolts             2.0    0.20    18 in·lb
 7. Immobilizer Antenna
 8. Immobilizer Amplifier
 9. Other than CA Model
10. CA Model
EO: Apply engine oil.
 R: Replacement Parts
