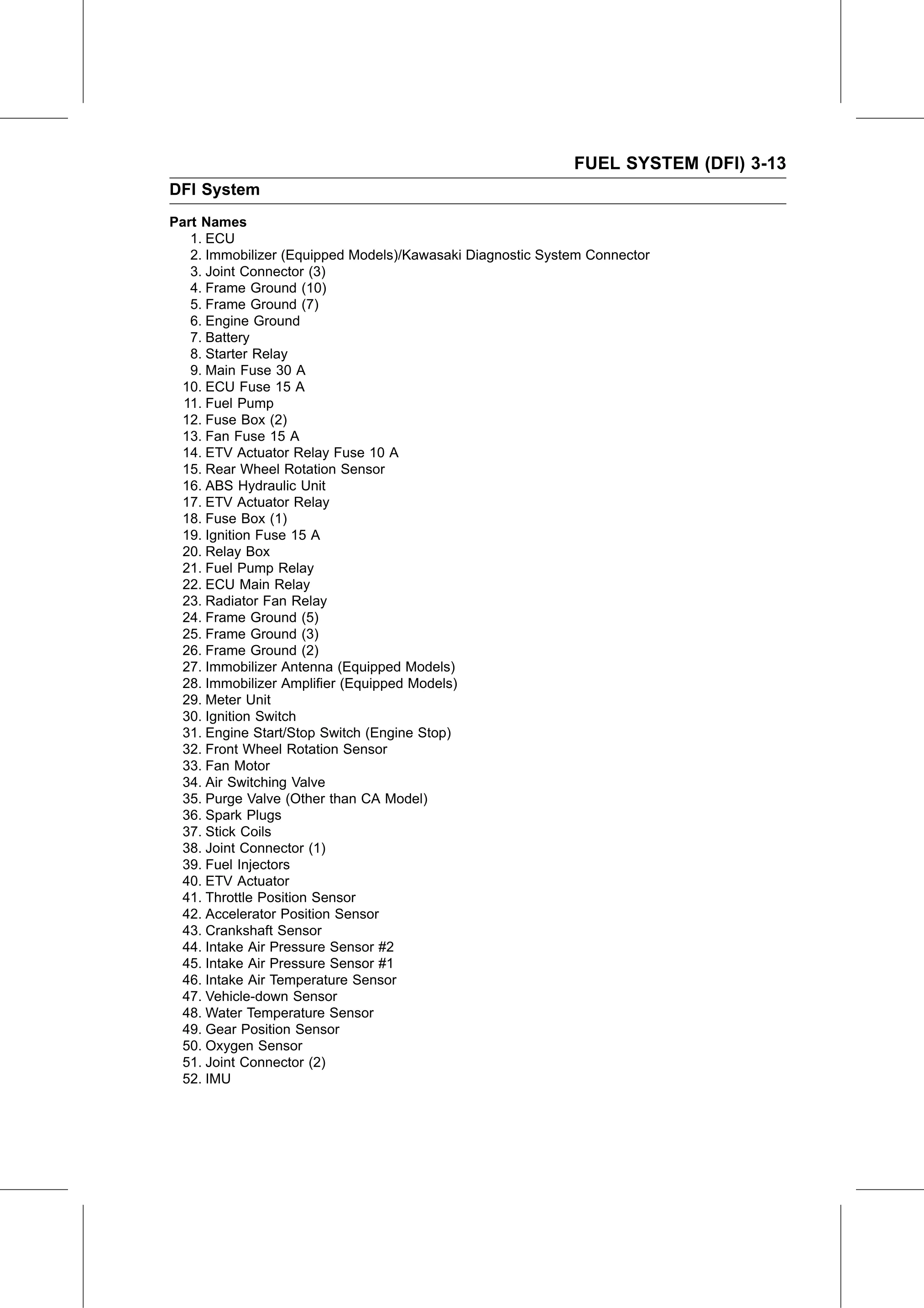

FUEL SYSTEM (DFI) 3-13
DFI System
Part Names
   1. ECU
   2. Immobilizer (Equipped Models)/Kawasaki Diagnostic System Connector
   3. Joint Connector (3)
   4. Frame Ground (10)
   5. Frame Ground (7)
   6. Engine Ground
   7. Battery
   8. Starter Relay
   9. Main Fuse 30 A
 10. ECU Fuse 15 A
  11. Fuel Pump
 12. Fuse Box (2)
 13. Fan Fuse 15 A
 14. ETV Actuator Relay Fuse 10 A
 15. Rear Wheel Rotation Sensor
 16. ABS Hydraulic Unit
 17. ETV Actuator Relay
 18. Fuse Box (1)
 19. Ignition Fuse 15 A
 20. Relay Box
 21. Fuel Pump Relay
 22. ECU Main Relay
 23. Radiator Fan Relay
 24. Frame Ground (5)
 25. Frame Ground (3)
 26. Frame Ground (2)
 27. Immobilizer Antenna (Equipped Models)
 28. Immobilizer Amplifier (Equipped Models)
 29. Meter Unit
 30. Ignition Switch
 31. Engine Start/Stop Switch (Engine Stop)
 32. Front Wheel Rotation Sensor
 33. Fan Motor
 34. Air Switching Valve
 35. Purge Valve (Other than CA Model)
 36. Spark Plugs
 37. Stick Coils
 38. Joint Connector (1)
 39. Fuel Injectors
 40. ETV Actuator
 41. Throttle Position Sensor
 42. Accelerator Position Sensor
 43. Crankshaft Sensor
 44. Intake Air Pressure Sensor #2
 45. Intake Air Pressure Sensor #1
 46. Intake Air Temperature Sensor
 47. Vehicle-down Sensor
 48. Water Temperature Sensor
 49. Gear Position Sensor
 50. Oxygen Sensor
 51. Joint Connector (2)
 52. IMU
