FUEL SYSTEM (DFI) 3-19

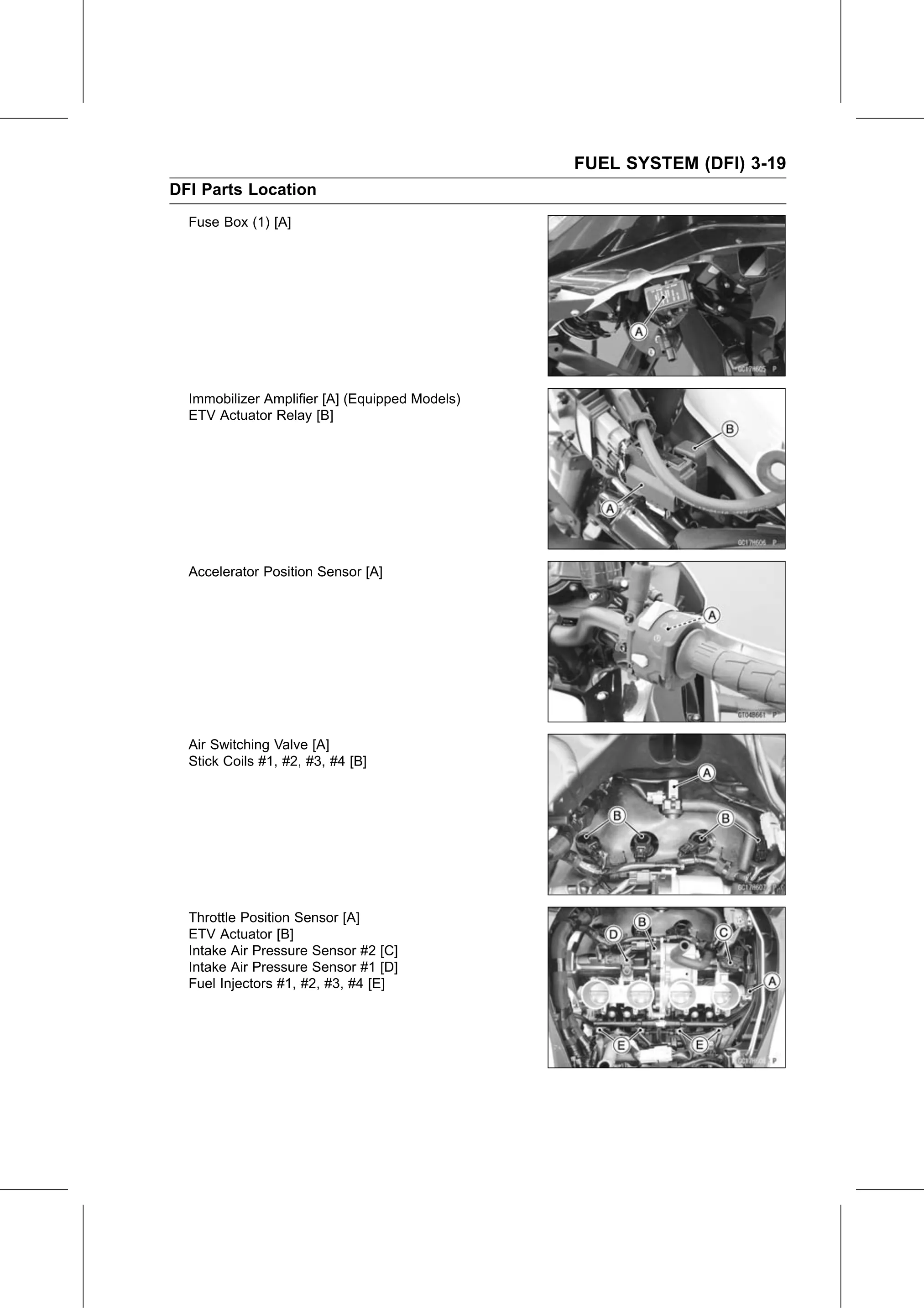

DFI Parts Location
  Fuse Box (1) [A]

  Immobilizer Amplifier [A] (Equipped Models)
  ETV Actuator Relay [B]

  Accelerator Position Sensor [A]

  Air Switching Valve [A]
  Stick Coils #1, #2, #3, #4 [B]

  Throttle Position Sensor [A]
  ETV Actuator [B]
  Intake Air Pressure Sensor #2 [C]
  Intake Air Pressure Sensor #1 [D]
  Fuel Injectors #1, #2, #3, #4 [E]
