FUEL SYSTEM (DFI) 3-21

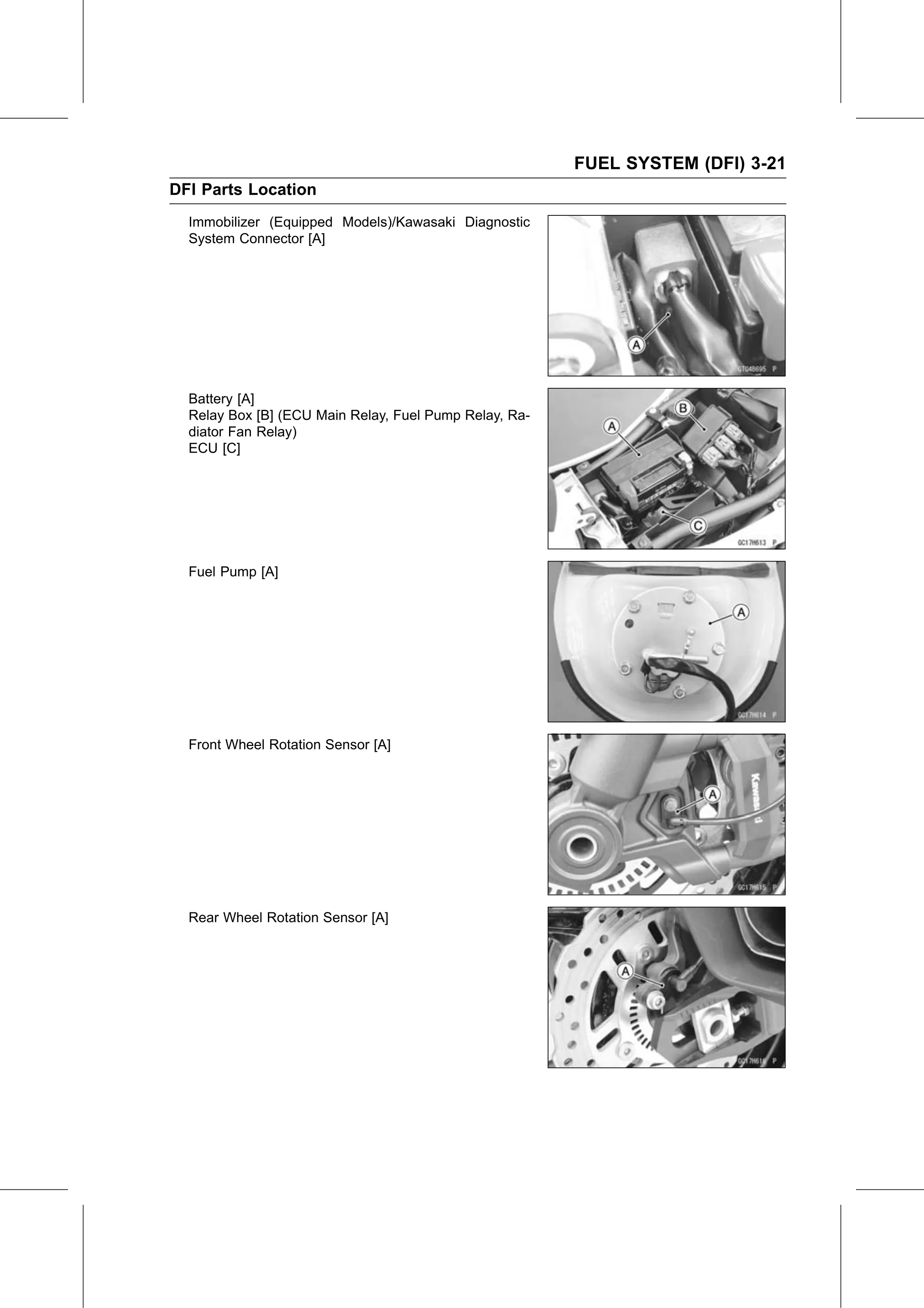

DFI Parts Location
  Immobilizer (Equipped Models)/Kawasaki Diagnostic
  System Connector [A]

  Battery [A]
  Relay Box [B] (ECU Main Relay, Fuel Pump Relay, Ra-
  diator Fan Relay)
  ECU [C]

  Fuel Pump [A]

  Front Wheel Rotation Sensor [A]

  Rear Wheel Rotation Sensor [A]
