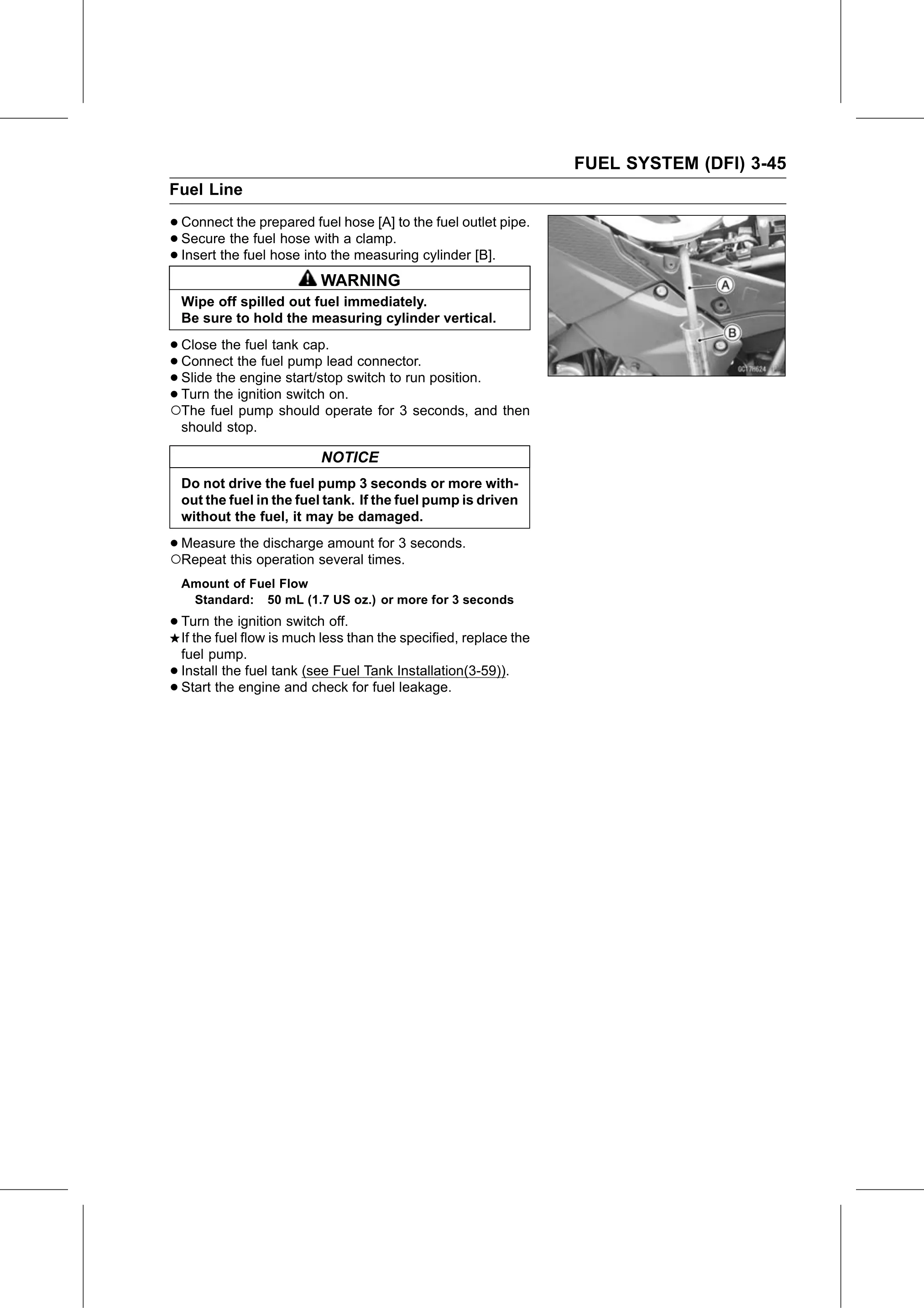

FUEL SYSTEM (DFI) 3-45
Fuel Line

• Connect   the prepared fuel hose [A] to the fuel outlet pipe.
• Insert the fuelfuelhose
  Secure   the        hose with a clamp.
•                         into the measuring cylinder [B].
                            WARNING
    Wipe off spilled out fuel immediately.
    Be sure to hold the measuring cylinder vertical.

• Close  the fuel tank cap.
• Connect   the fuel pump lead connector.
• Turn the ignition
  Slide the  engine start/stop switch to run position.
•○The fuel pump should
                     switch on.
                           operate for 3 seconds, and then
    should stop.

                            NOTICE
    Do not drive the fuel pump 3 seconds or more with-
    out the fuel in the fuel tank. If the fuel pump is driven
    without the fuel, it may be damaged.

•○Measure  the discharge amount for 3 seconds.
  Repeat this operation several times.
    Amount of Fuel Flow
     Standard: 50 mL (1.7 US oz.) or more for 3 seconds

• Turn   the ignition switch off.
  If the fuel flow is much less than the specified, replace the
    fuel pump.
•   Install the fuel tank (see Fuel Tank Installation(3-59)).
•   Start the engine and check for fuel leakage.
