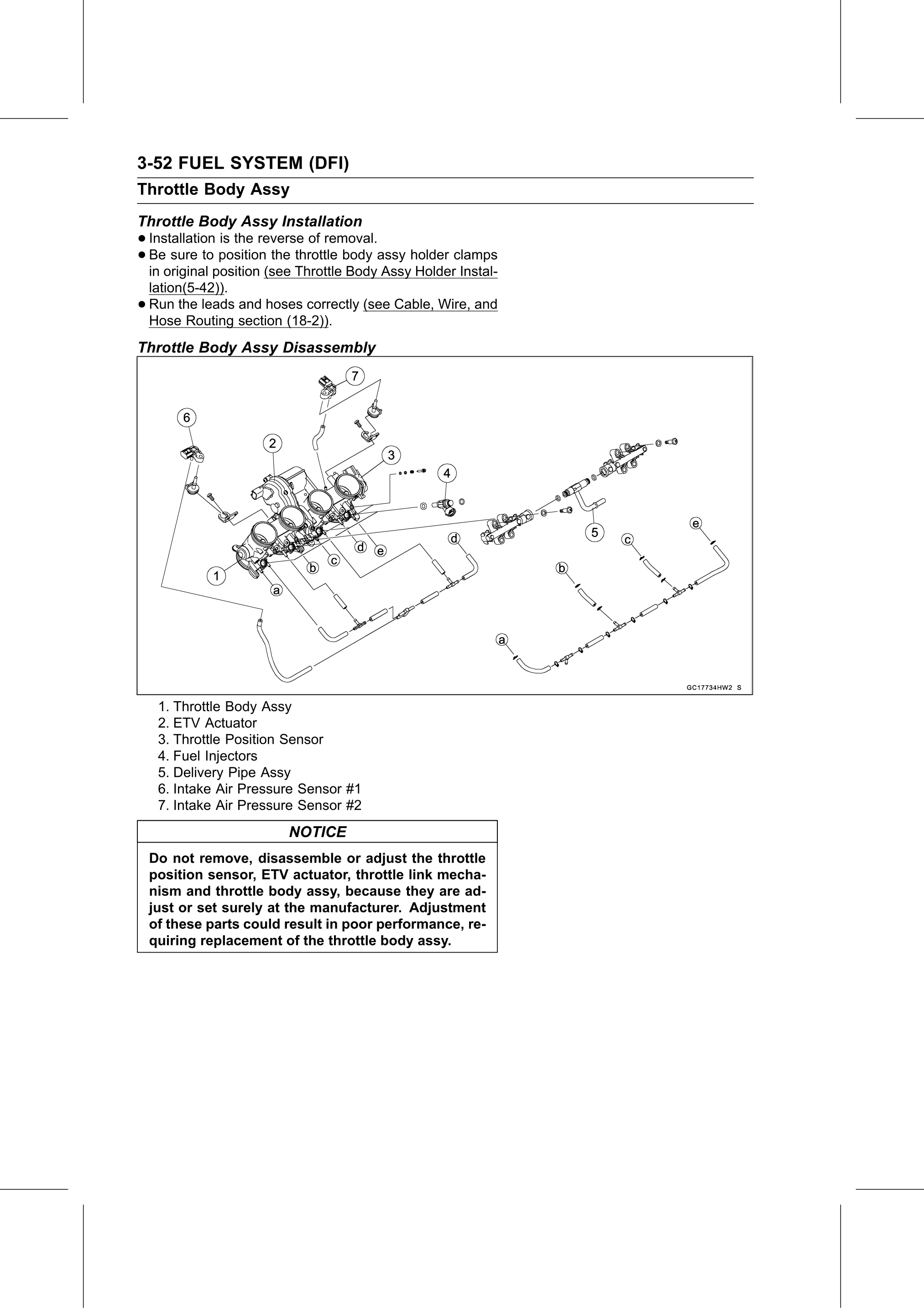

3-52 FUEL SYSTEM (DFI)
Throttle Body Assy
Throttle Body Assy Installation
• Installation is the reverse of removal.
• Be  sure to position the throttle body assy holder clamps
  in original position (see Throttle Body Assy Holder Instal-
    lation(5-42)).
•   Run the leads and hoses correctly (see Cable, Wire, and
    Hose Routing section (18-2)).
Throttle Body Assy Disassembly

     1. Throttle Body Assy
     2. ETV Actuator
     3. Throttle Position Sensor
     4. Fuel Injectors
     5. Delivery Pipe Assy
     6. Intake Air Pressure Sensor #1
     7. Intake Air Pressure Sensor #2
                          NOTICE
    Do not remove, disassemble or adjust the throttle
    position sensor, ETV actuator, throttle link mecha-
    nism and throttle body assy, because they are ad-
    just or set surely at the manufacturer. Adjustment
    of these parts could result in poor performance, re-
    quiring replacement of the throttle body assy.
