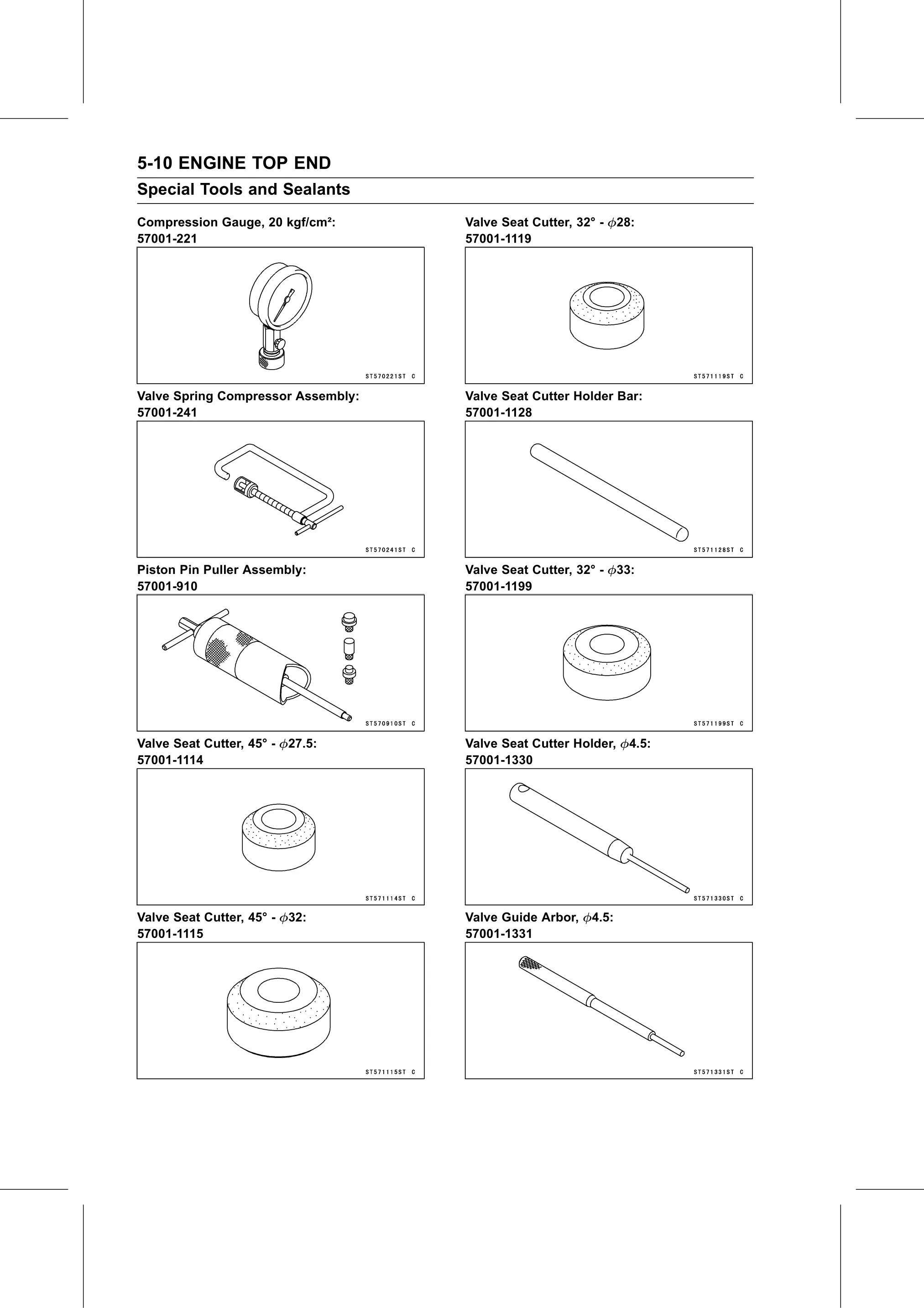

5-10 ENGINE TOP END
Special Tools and Sealants
Compression Gauge, 20 kgf/cm²:      Valve Seat Cutter, 32° -    28:
57001-221                           57001-1119

Valve Spring Compressor Assembly:   Valve Seat Cutter Holder Bar:
57001-241                           57001-1128

Piston Pin Puller Assembly:         Valve Seat Cutter, 32° -    33:
57001-910                           57001-1199

Valve Seat Cutter, 45° -   27.5:    Valve Seat Cutter Holder,     4.5:
57001-1114                          57001-1330

Valve Seat Cutter, 45° -   32:      Valve Guide Arbor,   4.5:
57001-1115                          57001-1331
