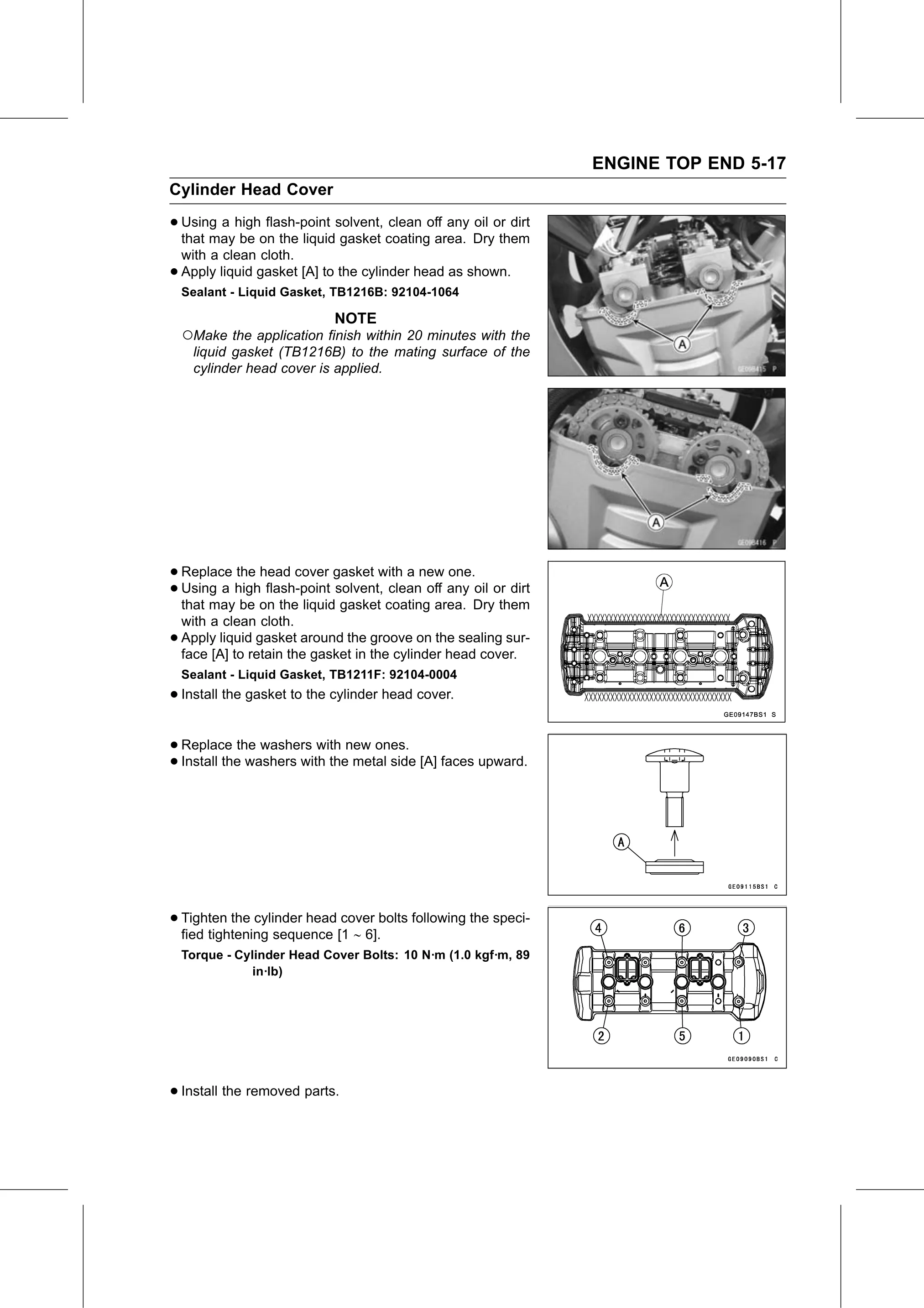

ENGINE TOP END 5-17
Cylinder Head Cover

• Using a high flash-point solvent, clean off any oil or dirt
  that may be on the liquid gasket coating area. Dry them
    with a clean cloth.
•   Apply liquid gasket [A] to the cylinder head as shown.
    Sealant - Liquid Gasket, TB1216B: 92104-1064

                             NOTE
    ○Make the application finish within 20 minutes with the
     liquid gasket (TB1216B) to the mating surface of the
     cylinder head cover is applied.

• Replace the head cover gasket with a new one.
• that may be onflash-point
  Using a high               solvent, clean off any oil or dirt
                   the liquid gasket coating area. Dry them
    with a clean cloth.
•   Apply liquid gasket around the groove on the sealing sur-
    face [A] to retain the gasket in the cylinder head cover.
    Sealant - Liquid Gasket, TB1211F: 92104-0004
• Install the gasket to the cylinder head cover.
• Replace   the washers with new ones.
• Install the washers with the metal side [A] faces upward.

• Tighten  the cylinder head cover bolts following the speci-
  fied tightening sequence [1  6].
    Torque - Cylinder Head Cover Bolts: 10 N·m (1.0 kgf·m, 89
                in·lb)

• Install the removed parts.
