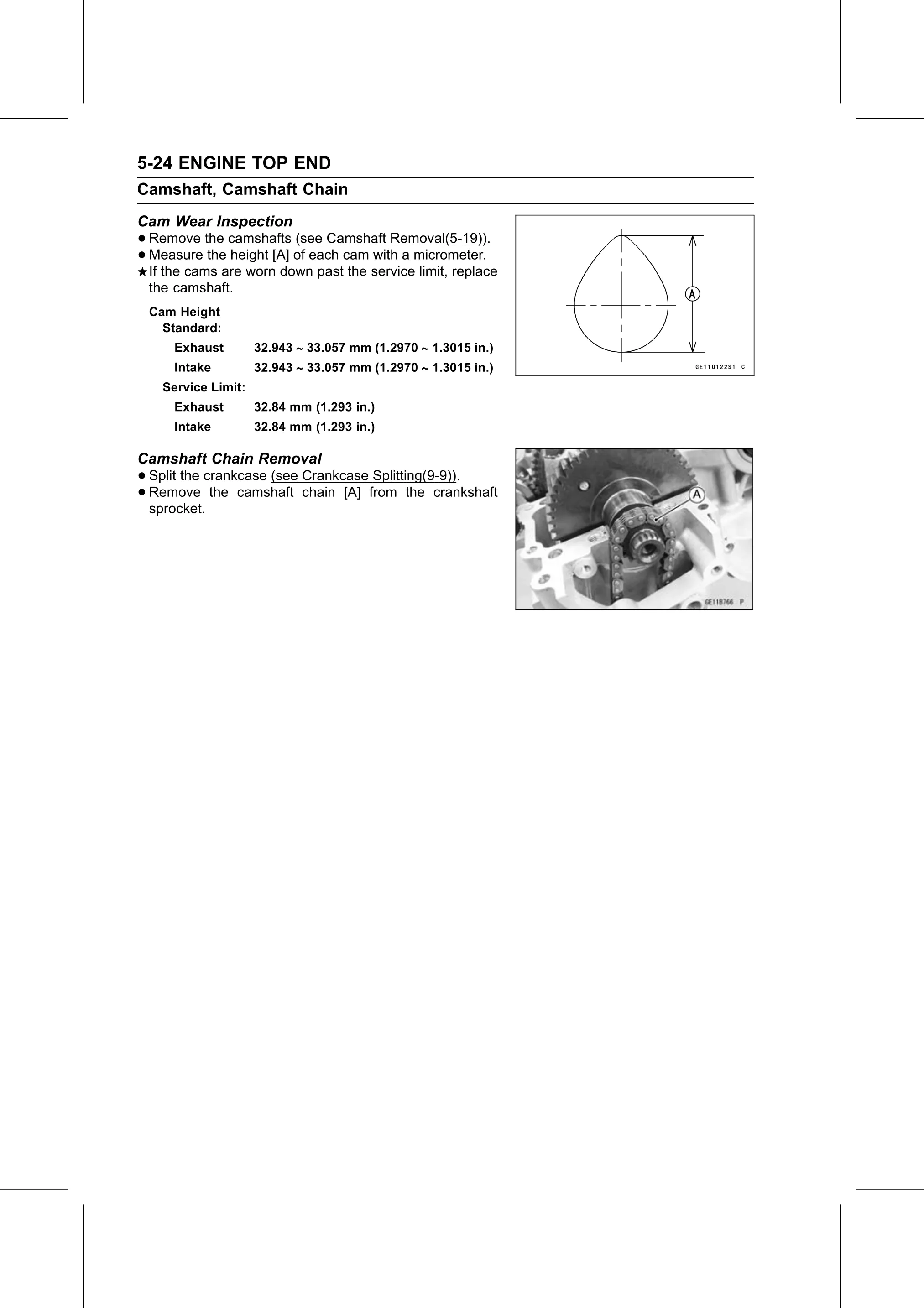

5-24 ENGINE TOP END
Camshaft, Camshaft Chain
Cam Wear Inspection
• Remove    the camshafts (see Camshaft Removal(5-19)).
• Measure    the height [A] of each cam with a micrometer.
  If the cams are worn down past the service limit, replace
 the camshaft.
 Cam Height
   Standard:
      Exhaust        32.943  33.057 mm (1.2970  1.3015 in.)
      Intake         32.943  33.057 mm (1.2970  1.3015 in.)
    Service Limit:
      Exhaust        32.84 mm (1.293 in.)
      Intake         32.84 mm (1.293 in.)

Camshaft Chain Removal
• Split the crankcase (see Crankcase Splitting(9-9)).
• sprocket. the camshaft chain [A] from the crankshaft
  Remove
