CLUTCH 6-19
Clutch

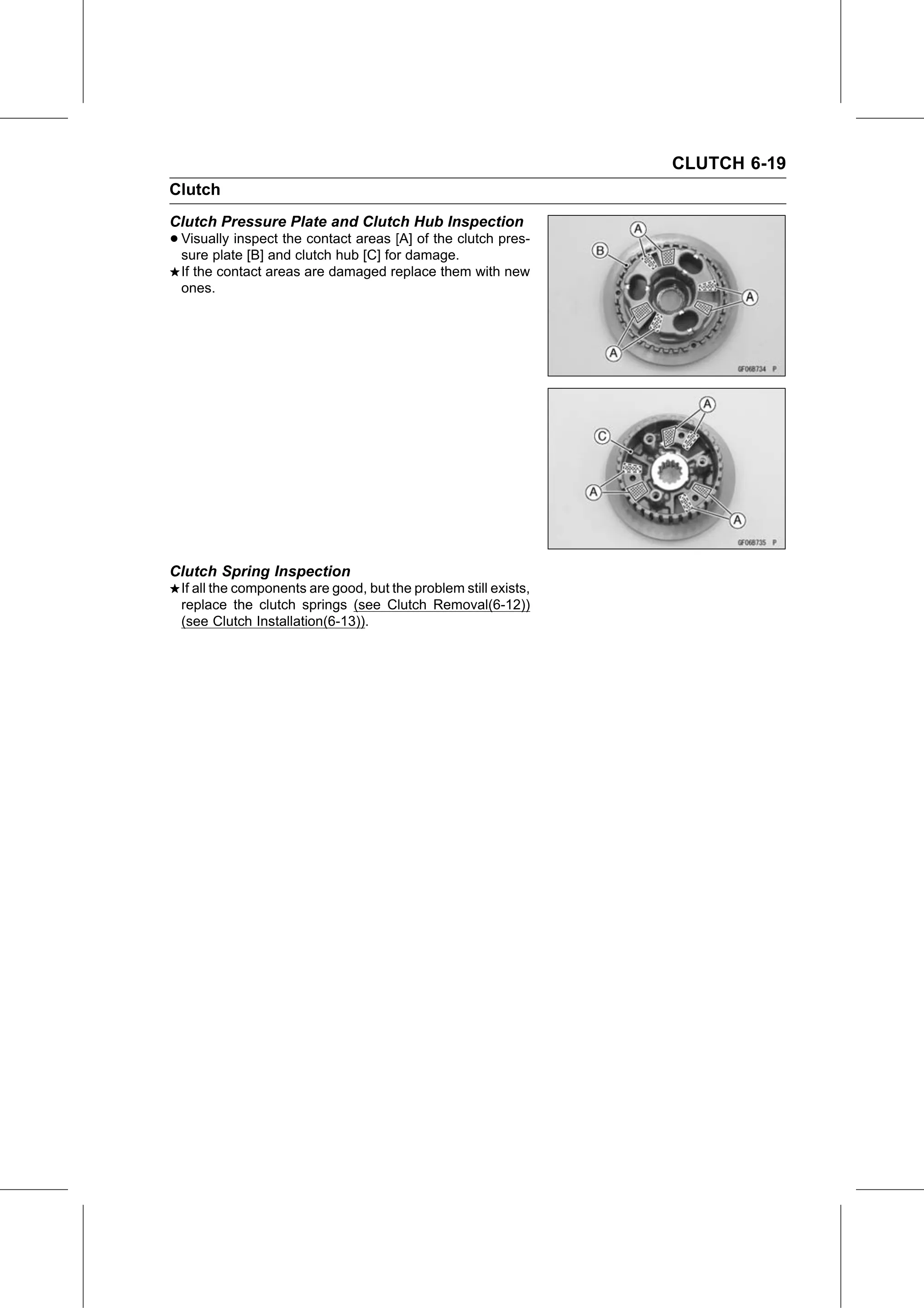

Clutch Pressure Plate and Clutch Hub Inspection
• Visually inspect the contact areas [A] of the clutch pres-
  sure plate [B] and clutch hub [C] for damage.
 If the contact areas are damaged replace them with new
 ones.

Clutch Spring Inspection
 If all the components are good, but the problem still exists,
 replace the clutch springs (see Clutch Removal(6-12))
 (see Clutch Installation(6-13)).
