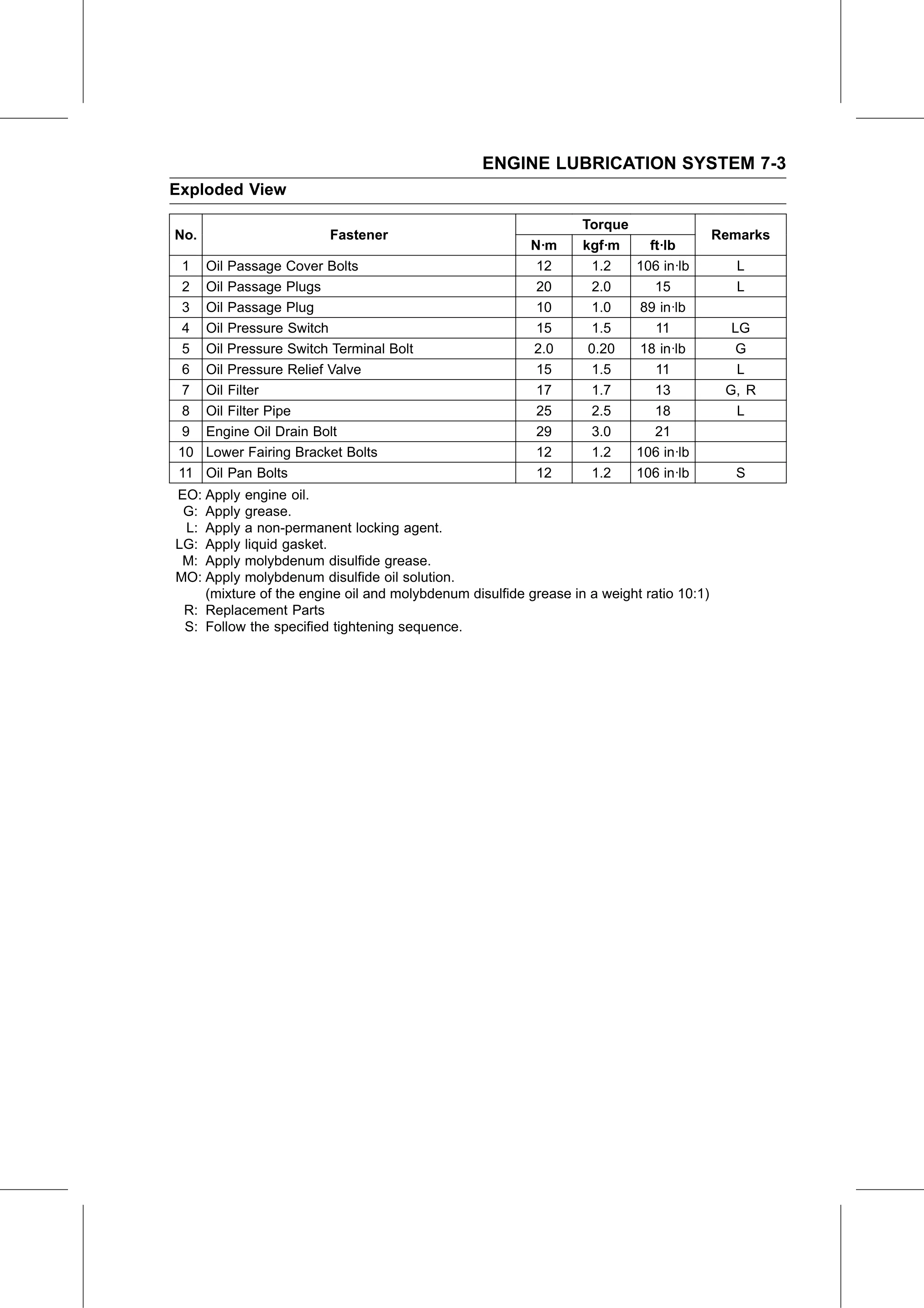

ENGINE LUBRICATION SYSTEM 7-3
Exploded View

                                                                 Torque
No.                      Fastener                                                        Remarks
                                                         N·m     kgf·m    ft·lb
 1    Oil Passage Cover Bolts                             12       1.2  106 in·lb           L
 2    Oil Passage Plugs                                   20       2.0     15               L
 3    Oil Passage Plug                                    10       1.0  89 in·lb
 4    Oil Pressure Switch                                 15       1.5     11              LG
 5    Oil Pressure Switch Terminal Bolt                  2.0      0.20  18 in·lb            G
 6    Oil Pressure Relief Valve                           15       1.5     11               L
 7    Oil Filter                                          17       1.7     13             G, R
 8    Oil Filter Pipe                                     25       2.5     18               L
 9    Engine Oil Drain Bolt                               29       3.0     21
10    Lower Fairing Bracket Bolts                         12       1.2  106 in·lb
11    Oil Pan Bolts                                       12       1.2  106 in·lb          S
EO: Apply engine oil.
 G: Apply grease.
 L: Apply a non-permanent locking agent.
LG: Apply liquid gasket.
 M: Apply molybdenum disulfide grease.
MO: Apply molybdenum disulfide oil solution.
    (mixture of the engine oil and molybdenum disulfide grease in a weight ratio 10:1)
 R: Replacement Parts
 S: Follow the specified tightening sequence.
