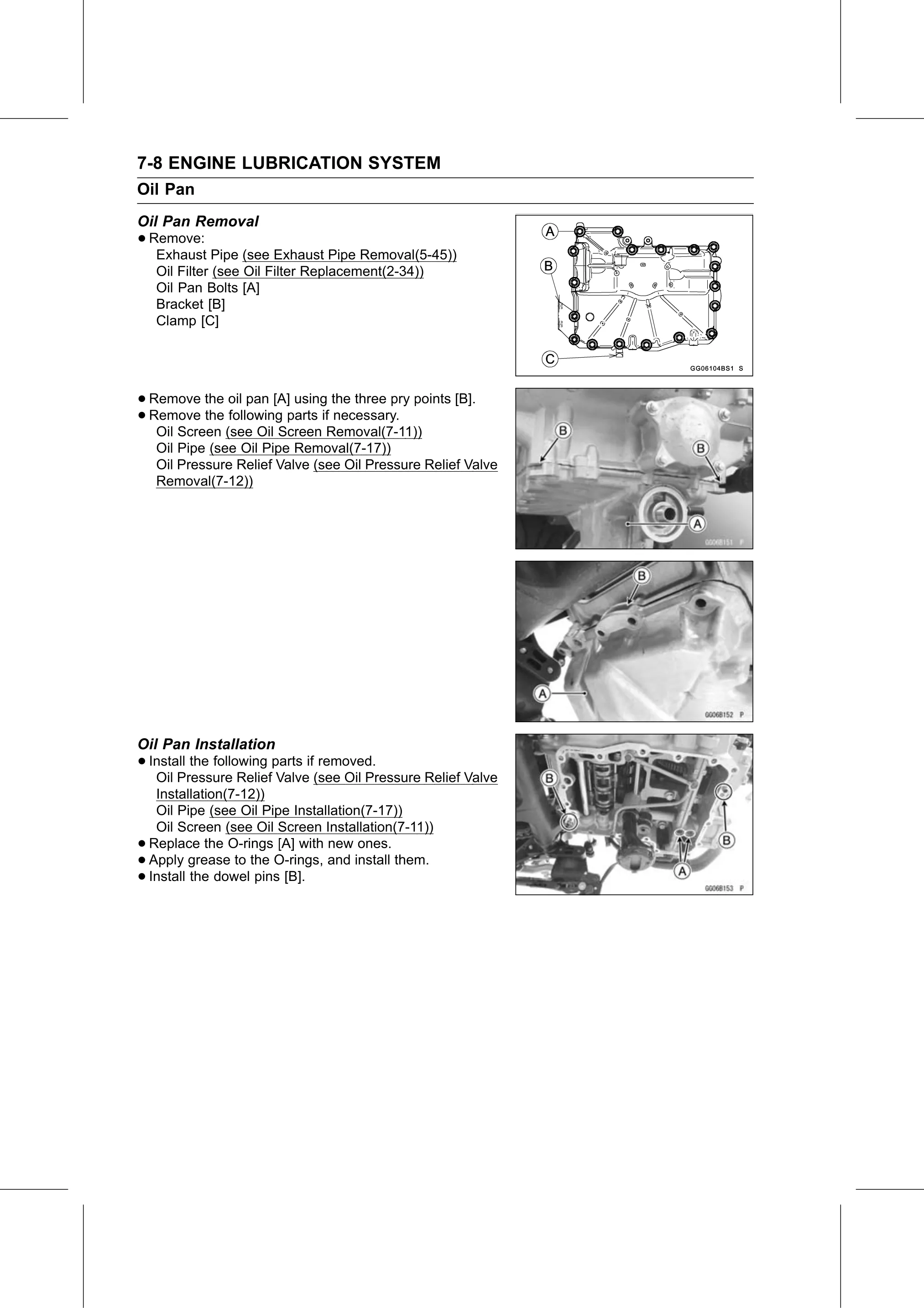

7-8 ENGINE LUBRICATION SYSTEM
Oil Pan
Oil Pan Removal
• Remove:
   Exhaust Pipe (see Exhaust Pipe Removal(5-45))
     Oil Filter (see Oil Filter Replacement(2-34))
     Oil Pan Bolts [A]
     Bracket [B]
     Clamp [C]

• Remove  the oil pan [A] using the three pry points [B].
• Oil Screen
  Remove  the following parts if necessary.
             (see Oil Screen Removal(7-11))
     Oil Pipe (see Oil Pipe Removal(7-17))
     Oil Pressure Relief Valve (see Oil Pressure Relief Valve
     Removal(7-12))

Oil Pan Installation
• Install the following parts if removed.
   Oil Pressure Relief Valve (see Oil Pressure Relief Valve
     Installation(7-12))
     Oil Pipe (see Oil Pipe Installation(7-17))
     Oil Screen (see Oil Screen Installation(7-11))
•   Replace the O-rings [A] with new ones.
•   Apply grease to the O-rings, and install them.
•   Install the dowel pins [B].
