7-10 ENGINE LUBRICATION SYSTEM
Oil Pan

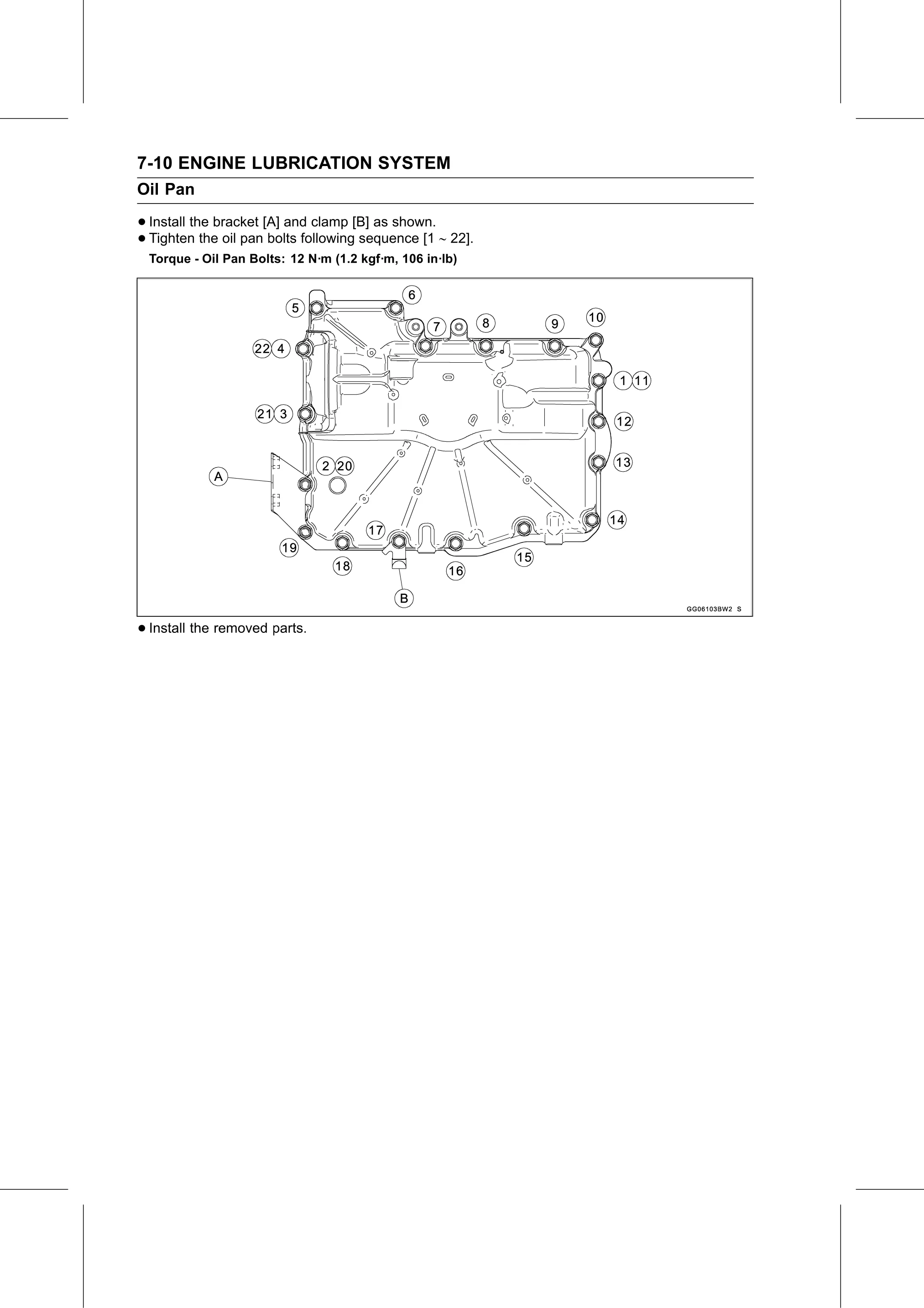

• Install the bracket [A] and clamp [B] as shown.
• Tighten   the oil pan bolts following sequence [1  22].
  Torque - Oil Pan Bolts: 12 N·m (1.2 kgf·m, 106 in·lb)

• Install the removed parts.
