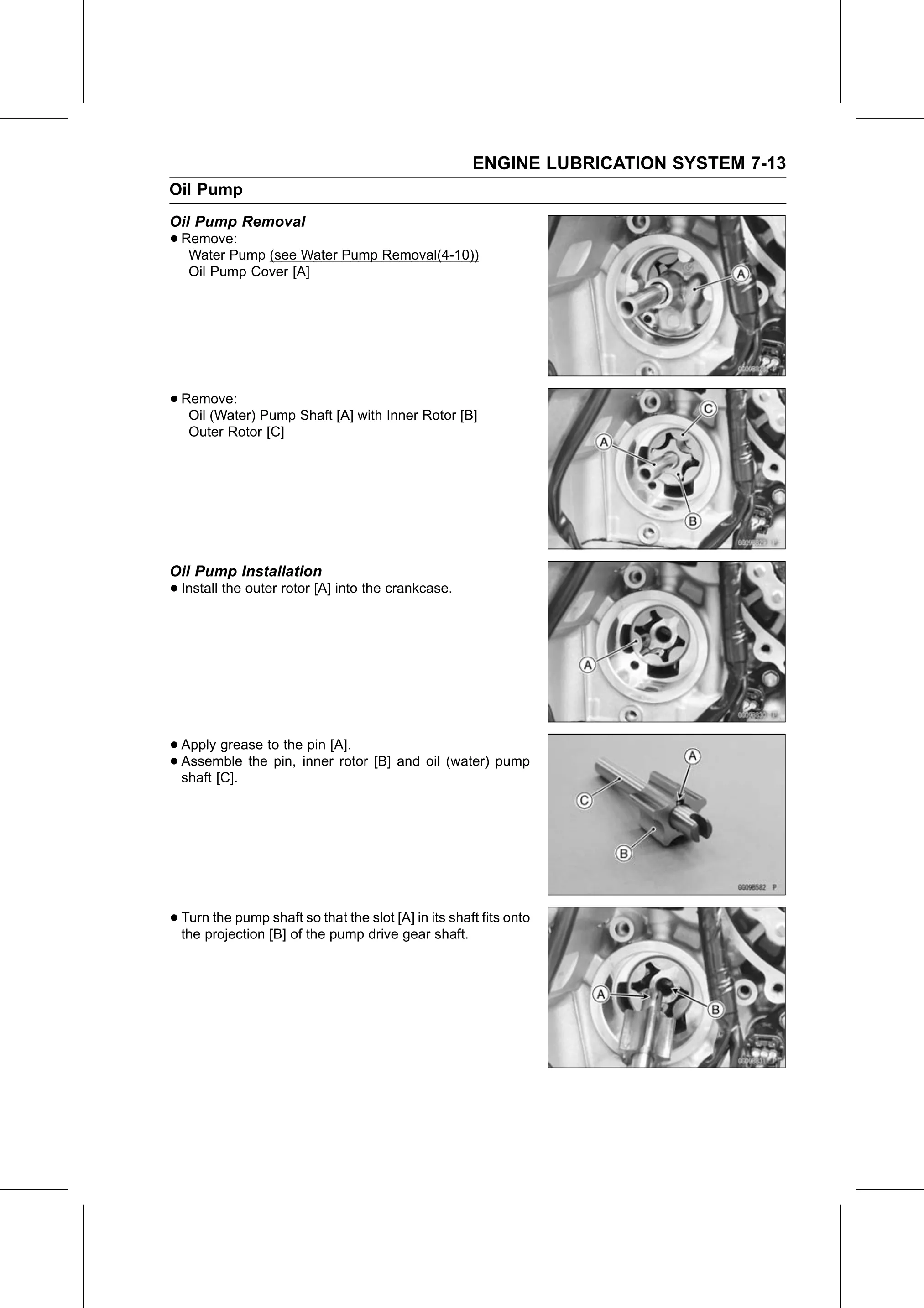

ENGINE LUBRICATION SYSTEM 7-13
Oil Pump
Oil Pump Removal
• Remove:
   Water Pump (see Water Pump Removal(4-10))
   Oil Pump Cover [A]

• Remove:
   Oil (Water) Pump Shaft [A] with Inner Rotor [B]
   Outer Rotor [C]

Oil Pump Installation
• Install the outer rotor [A] into the crankcase.

• Apply  grease to the pin [A].
• Assemble
  shaft [C].
             the pin, inner rotor [B] and oil (water) pump

• Turn the pump shaft so that the slot [A] in its shaft fits onto
  the projection [B] of the pump drive gear shaft.
