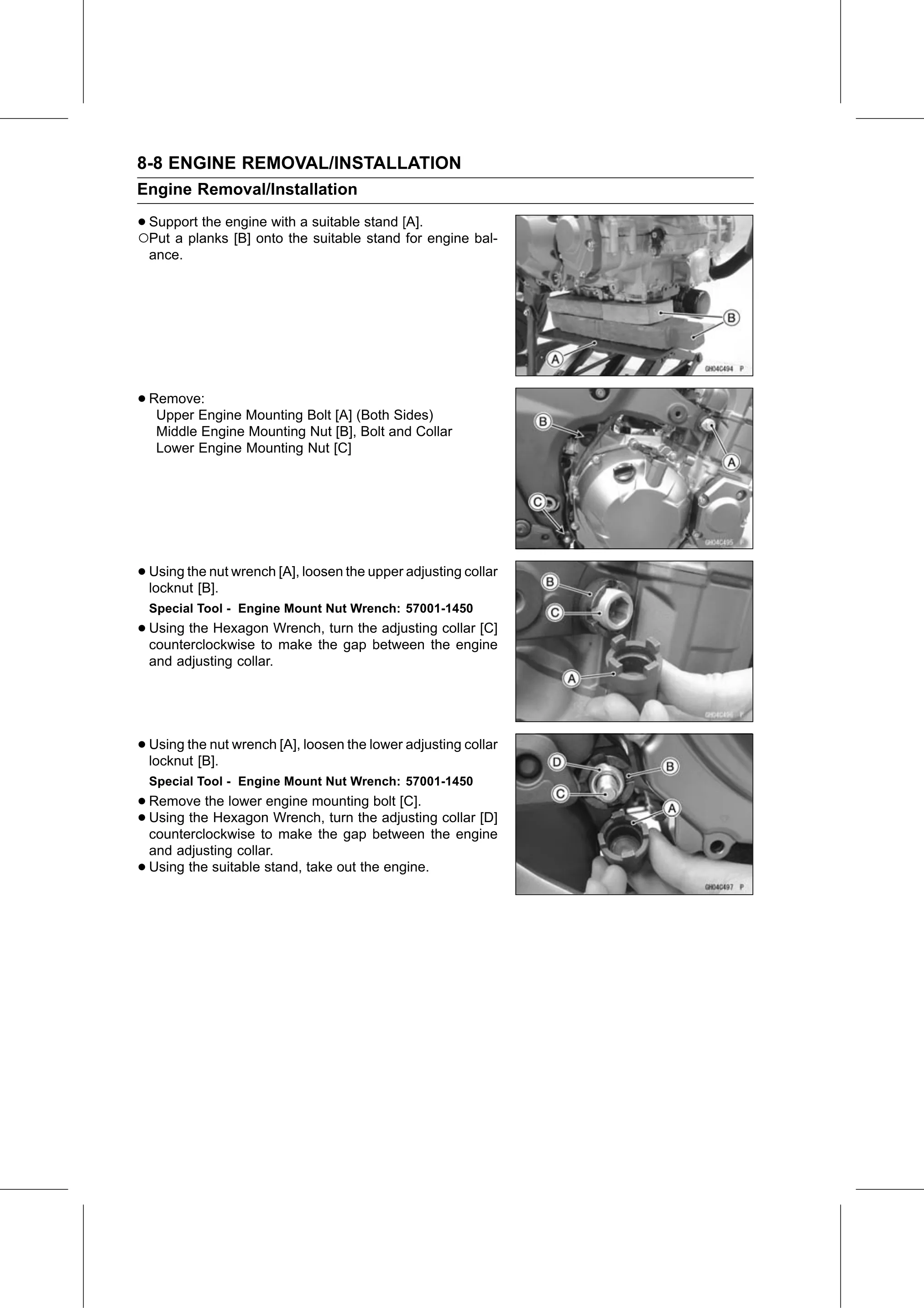

8-8 ENGINE REMOVAL/INSTALLATION
Engine Removal/Installation

•○Support the engine with a suitable stand [A].
  Put a planks [B] onto the suitable stand for engine bal-
    ance.

• Remove:
   Upper Engine Mounting Bolt [A] (Both Sides)
     Middle Engine Mounting Nut [B], Bolt and Collar
     Lower Engine Mounting Nut [C]

• Using the nut wrench [A], loosen the upper adjusting collar
  locknut [B].
    Special Tool - Engine Mount Nut Wrench: 57001-1450
• Using the Hexagon Wrench, turn the adjusting collar [C]
  counterclockwise to make the gap between the engine
    and adjusting collar.

• Using the nut wrench [A], loosen the lower adjusting collar
  locknut [B].
    Special Tool - Engine Mount Nut Wrench: 57001-1450
• Remove   the lower engine mounting bolt [C].
• Using the Hexagon Wrench, turn the adjusting collar [D]
  counterclockwise to make the gap between the engine
    and adjusting collar.
•   Using the suitable stand, take out the engine.
