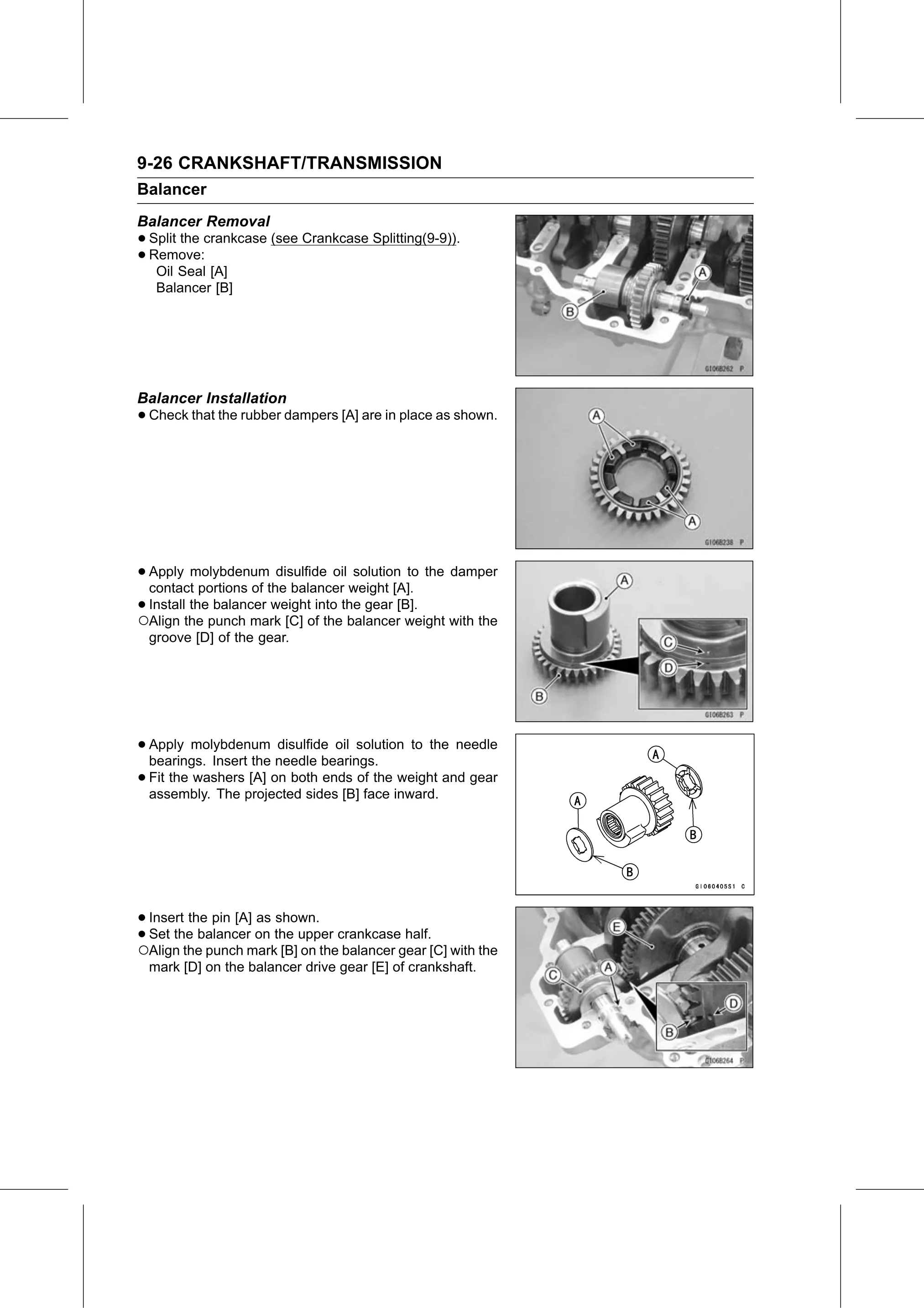

9-26 CRANKSHAFT/TRANSMISSION
Balancer
Balancer Removal
• Split the crankcase (see Crankcase Splitting(9-9)).
• Remove:
   Oil Seal [A]
   Balancer [B]

Balancer Installation
• Check that the rubber dampers [A] are in place as shown.

• Apply   molybdenum disulfide oil solution to the damper
  contact portions of the balancer weight [A].
•○Install the balancer weight into the gear [B].
  Align the punch mark [C] of the balancer weight with the
 groove [D] of the gear.

• Apply   molybdenum disulfide oil solution to the needle
  bearings. Insert the needle bearings.
• Fit the washers [A] on both ends of the weight and gear
  assembly. The projected sides [B] face inward.

• Insert the pin [A] as shown.
•○Set the balancer on the upper crankcase half.
  Align the punch mark [B] on the balancer gear [C] with the
 mark [D] on the balancer drive gear [E] of crankshaft.
