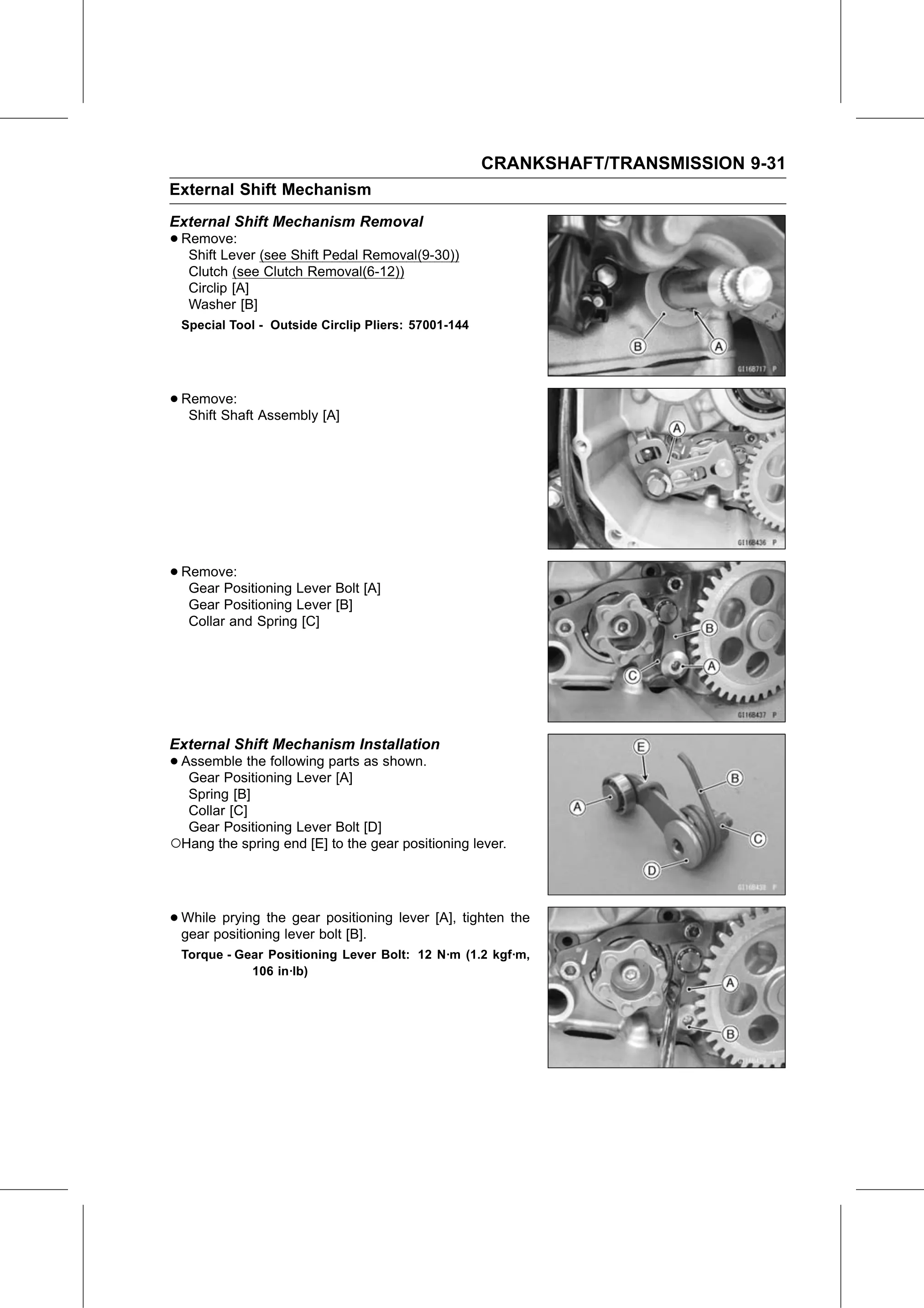

CRANKSHAFT/TRANSMISSION 9-31
External Shift Mechanism
External Shift Mechanism Removal
• Remove:
   Shift Lever (see Shift Pedal Removal(9-30))
   Clutch (see Clutch Removal(6-12))
   Circlip [A]
   Washer [B]
 Special Tool - Outside Circlip Pliers: 57001-144

• Remove:
   Shift Shaft Assembly [A]

• Remove:
   Gear Positioning Lever Bolt [A]
   Gear Positioning Lever [B]
   Collar and Spring [C]

External Shift Mechanism Installation
• Assemble the following parts as shown.
   Gear Positioning Lever [A]
  Spring [B]
  Collar [C]
  Gear Positioning Lever Bolt [D]
○Hang the spring end [E] to the gear positioning lever.

• While prying the gear positioning lever [A], tighten the
  gear positioning lever bolt [B].
 Torque - Gear Positioning Lever Bolt: 12 N·m (1.2 kgf·m,
            106 in·lb)
