9-42 CRANKSHAFT/TRANSMISSION
Transmission

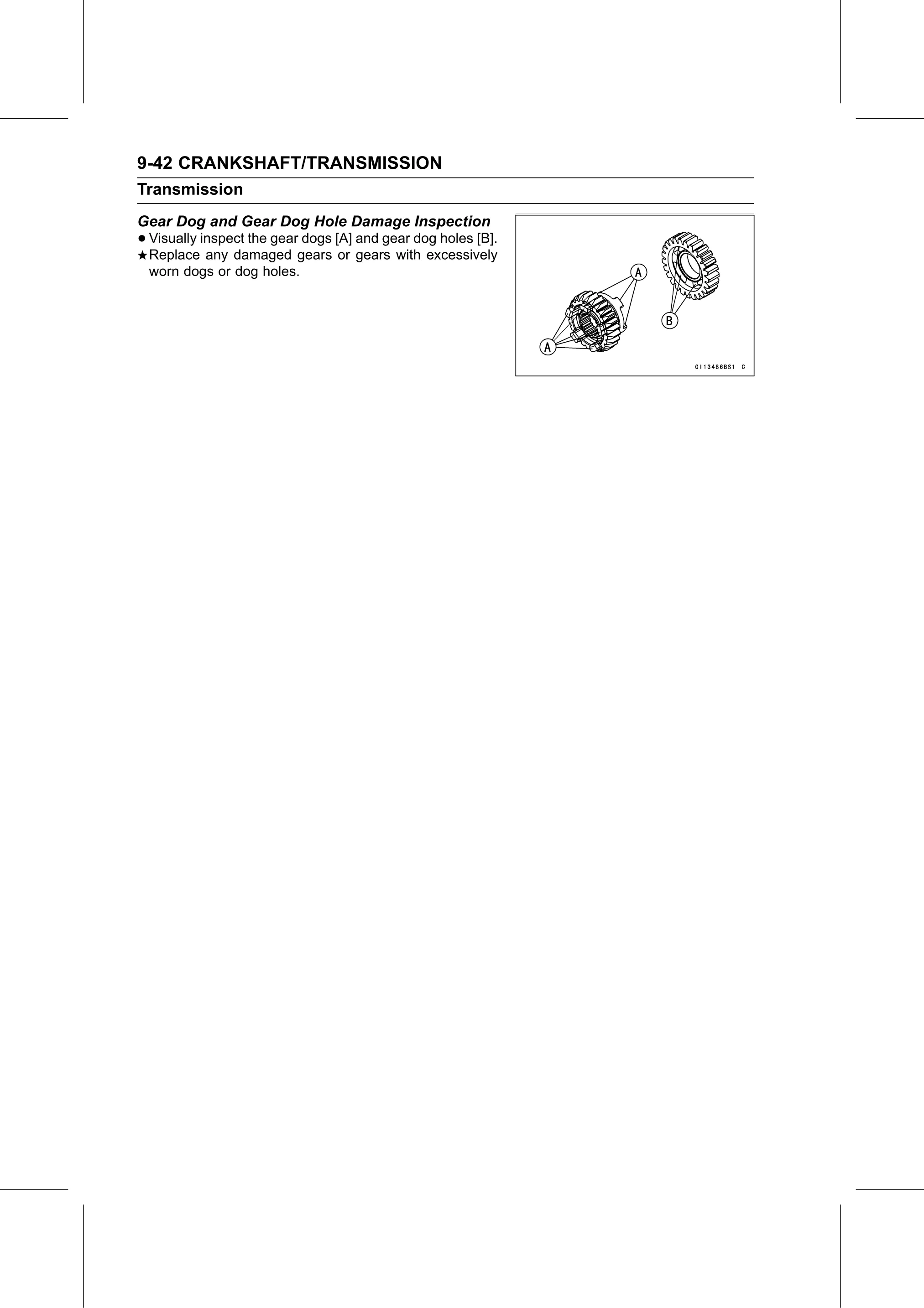

Gear Dog and Gear Dog Hole Damage Inspection
• Visually inspect the gear dogs [A] and gear dog holes [B].
  Replace any damaged gears or gears with excessively
 worn dogs or dog holes.
