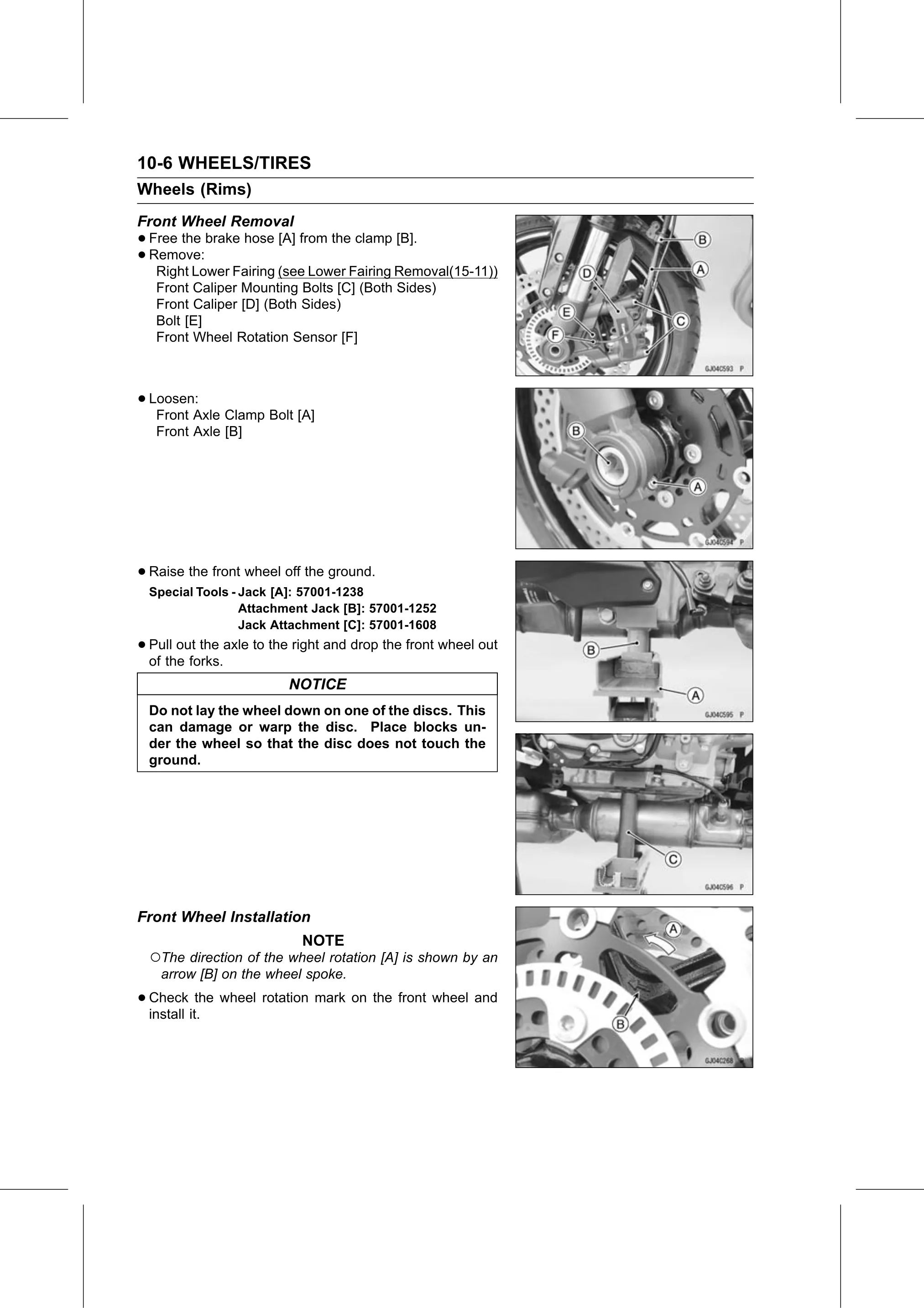

10-6 WHEELS/TIRES
Wheels (Rims)
Front Wheel Removal
• Free the brake hose [A] from the clamp [B].
• Remove:
   Right Lower Fairing (see Lower Fairing Removal(15-11))
   Front Caliper Mounting Bolts [C] (Both Sides)
   Front Caliper [D] (Both Sides)
   Bolt [E]
   Front Wheel Rotation Sensor [F]

• Loosen:
   Front Axle Clamp Bolt [A]
   Front Axle [B]

• Raise the front wheel off the ground.
  Special Tools - Jack [A]: 57001-1238
                  Attachment Jack [B]: 57001-1252
                  Jack Attachment [C]: 57001-1608
• Pull out the axle to the right and drop the front wheel out
  of the forks.
                         NOTICE
  Do not lay the wheel down on one of the discs. This
  can damage or warp the disc. Place blocks un-
  der the wheel so that the disc does not touch the
  ground.

Front Wheel Installation
                           NOTE
  ○The direction of the wheel rotation [A] is shown by an
   arrow [B] on the wheel spoke.

• Check     the wheel rotation mark on the front wheel and
  install it.
