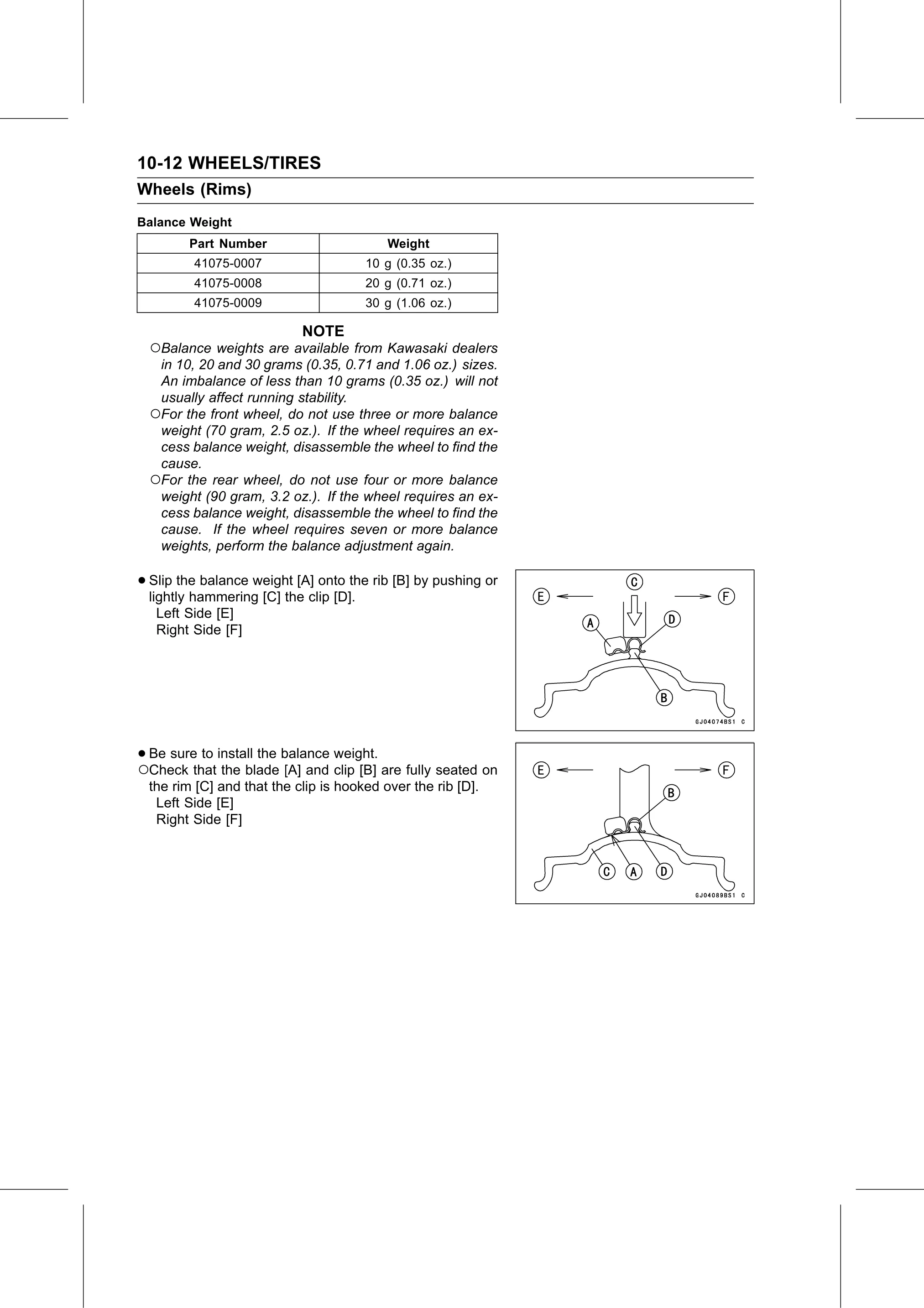

10-12 WHEELS/TIRES
Wheels (Rims)
Balance Weight
        Part Number                        Weight
         41075-0007                    10 g (0.35 oz.)
         41075-0008                    20 g (0.71 oz.)
         41075-0009                    30 g (1.06 oz.)

                            NOTE
  ○Balance weights are available from Kawasaki dealers
   in 10, 20 and 30 grams (0.35, 0.71 and 1.06 oz.) sizes.
   An imbalance of less than 10 grams (0.35 oz.) will not
   usually affect running stability.
  ○For the front wheel, do not use three or more balance
   weight (70 gram, 2.5 oz.). If the wheel requires an ex-
   cess balance weight, disassemble the wheel to find the
   cause.
  ○For the rear wheel, do not use four or more balance
   weight (90 gram, 3.2 oz.). If the wheel requires an ex-
   cess balance weight, disassemble the wheel to find the
   cause. If the wheel requires seven or more balance
   weights, perform the balance adjustment again.

• Slip  the balance weight [A] onto the rib [B] by pushing or
  lightly hammering [C] the clip [D].
   Left Side [E]
   Right Side [F]

•○Be sure to install the balance weight.
  Check that the blade [A] and clip [B] are fully seated on
  the rim [C] and that the clip is hooked over the rib [D].
   Left Side [E]
   Right Side [F]
