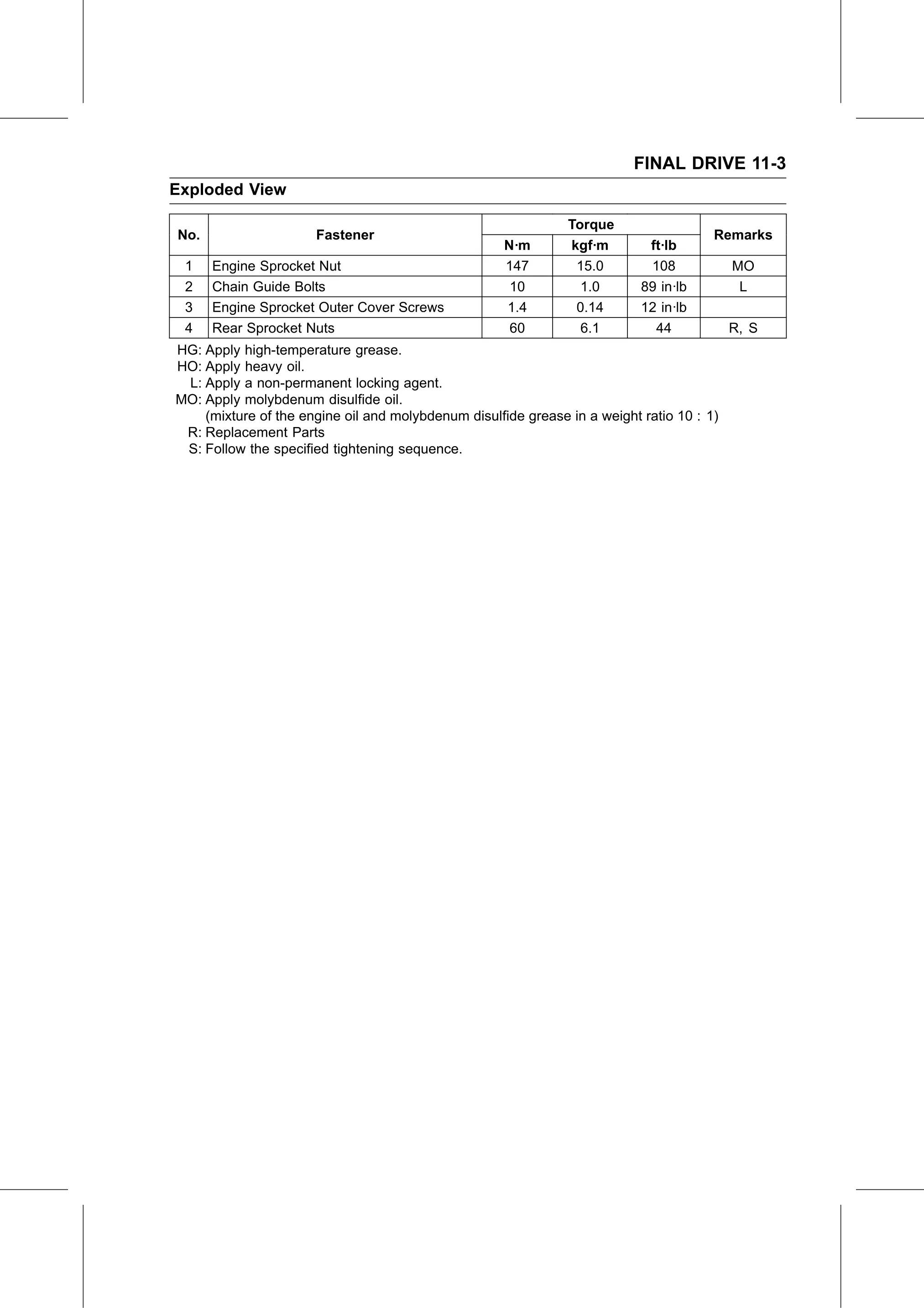

FINAL DRIVE 11-3
Exploded View

                                                               Torque
No.                   Fastener                                                         Remarks
                                                     N·m       kgf·m        ft·lb
 1    Engine Sprocket Nut                            147        15.0        108            MO
 2    Chain Guide Bolts                               10         1.0       89 in·lb         L
 3    Engine Sprocket Outer Cover Screws             1.4        0.14       12 in·lb
 4    Rear Sprocket Nuts                              60         6.1         44            R, S
HG: Apply high-temperature grease.
HO: Apply heavy oil.
 L: Apply a non-permanent locking agent.
MO: Apply molybdenum disulfide oil.
    (mixture of the engine oil and molybdenum disulfide grease in a weight ratio 10 : 1)
 R: Replacement Parts
 S: Follow the specified tightening sequence.
