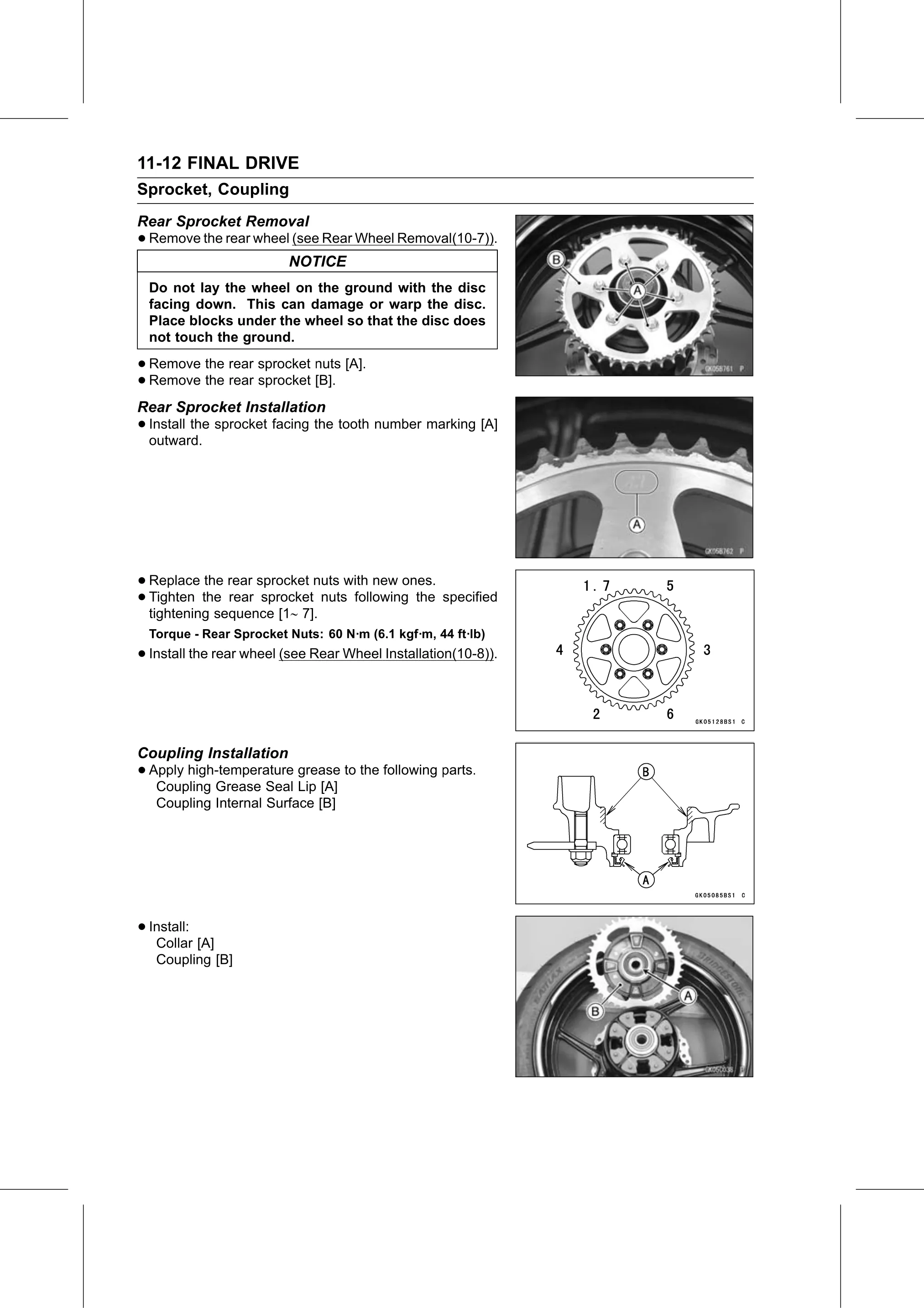

11-12 FINAL DRIVE
Sprocket, Coupling
Rear Sprocket Removal
• Remove the rear wheel (see Rear Wheel Removal(10-7)).
                         NOTICE
  Do not lay the wheel on the ground with the disc
  facing down. This can damage or warp the disc.
  Place blocks under the wheel so that the disc does
  not touch the ground.

• Remove the rear sprocket nuts [A].
• Remove the rear sprocket [B].
Rear Sprocket Installation
• Install
  outward.
          the sprocket facing the tooth number marking [A]

• Replace   the rear sprocket nuts with new ones.
• tightening sequence
  Tighten  the  rear sprocket nuts following the specified
                        [1 7].
  Torque - Rear Sprocket Nuts: 60 N·m (6.1 kgf·m, 44 ft·lb)
• Install the rear wheel (see Rear Wheel Installation(10-8)).

Coupling Installation
• Apply high-temperature grease to the following parts.
   Coupling Grease Seal Lip [A]
   Coupling Internal Surface [B]

• Install:
   Collar [A]
   Coupling [B]
