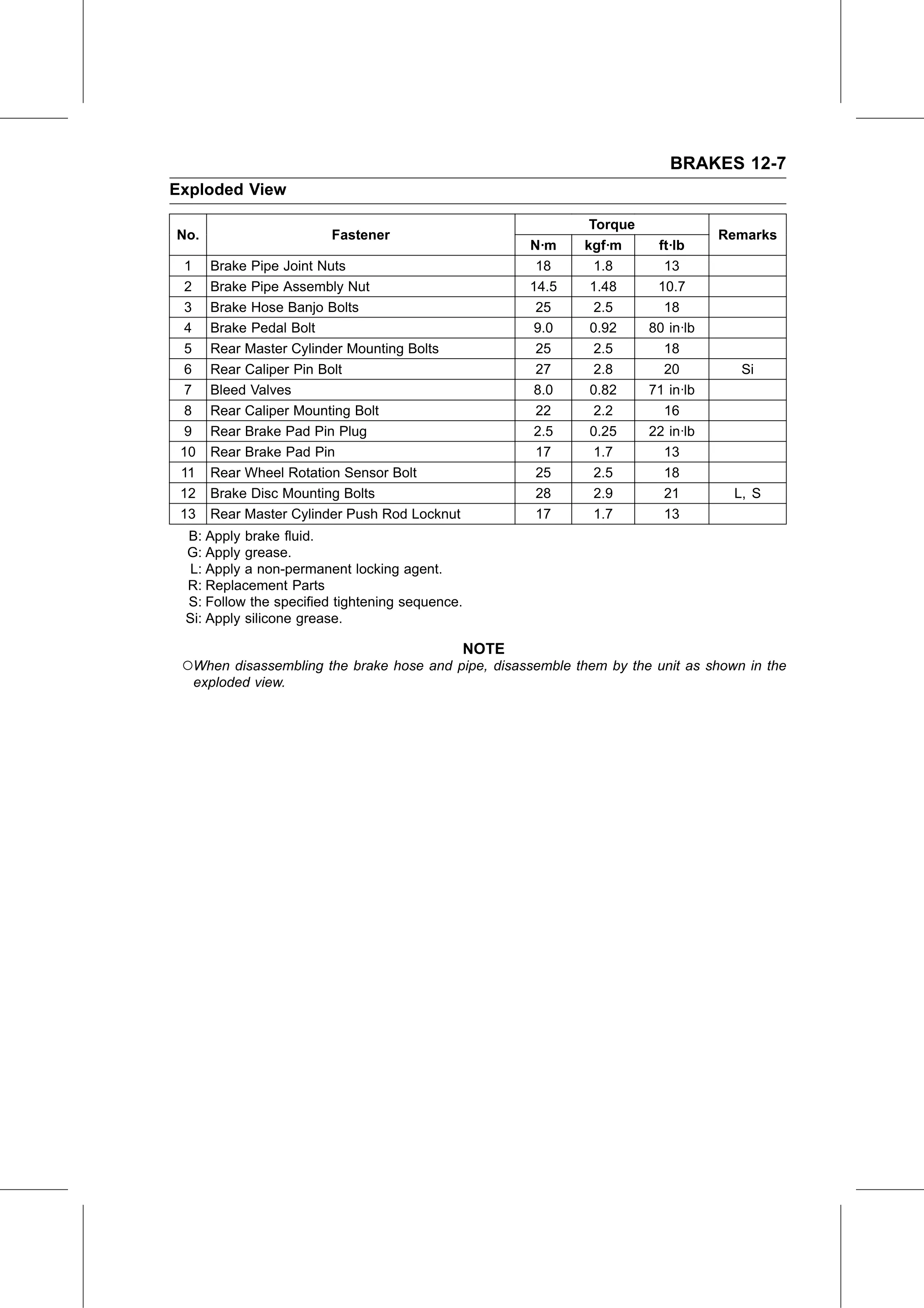

BRAKES 12-7
Exploded View

                                                               Torque
No.                     Fastener                                                 Remarks
                                                       N·m    kgf·m    ft·lb
  1   Brake Pipe Joint Nuts                             18      1.8     13
  2   Brake Pipe Assembly Nut                          14.5    1.48    10.7
  3   Brake Hose Banjo Bolts                            25      2.5     18
  4   Brake Pedal Bolt                                  9.0    0.92   80 in·lb
  5   Rear Master Cylinder Mounting Bolts               25      2.5     18
  6   Rear Caliper Pin Bolt                             27      2.8     20         Si
  7   Bleed Valves                                      8.0    0.82   71 in·lb
  8   Rear Caliper Mounting Bolt                        22      2.2     16
  9   Rear Brake Pad Pin Plug                           2.5    0.25   22 in·lb
 10   Rear Brake Pad Pin                                17      1.7     13
 11   Rear Wheel Rotation Sensor Bolt                   25      2.5     18
 12   Brake Disc Mounting Bolts                         28      2.9     21        L, S
 13   Rear Master Cylinder Push Rod Locknut             17      1.7     13
 B: Apply brake fluid.
 G: Apply grease.
 L: Apply a non-permanent locking agent.
 R: Replacement Parts
 S: Follow the specified tightening sequence.
 Si: Apply silicone grease.

                                                NOTE
 ○When disassembling the brake hose and pipe, disassemble them by the unit as shown in the
  exploded view.
