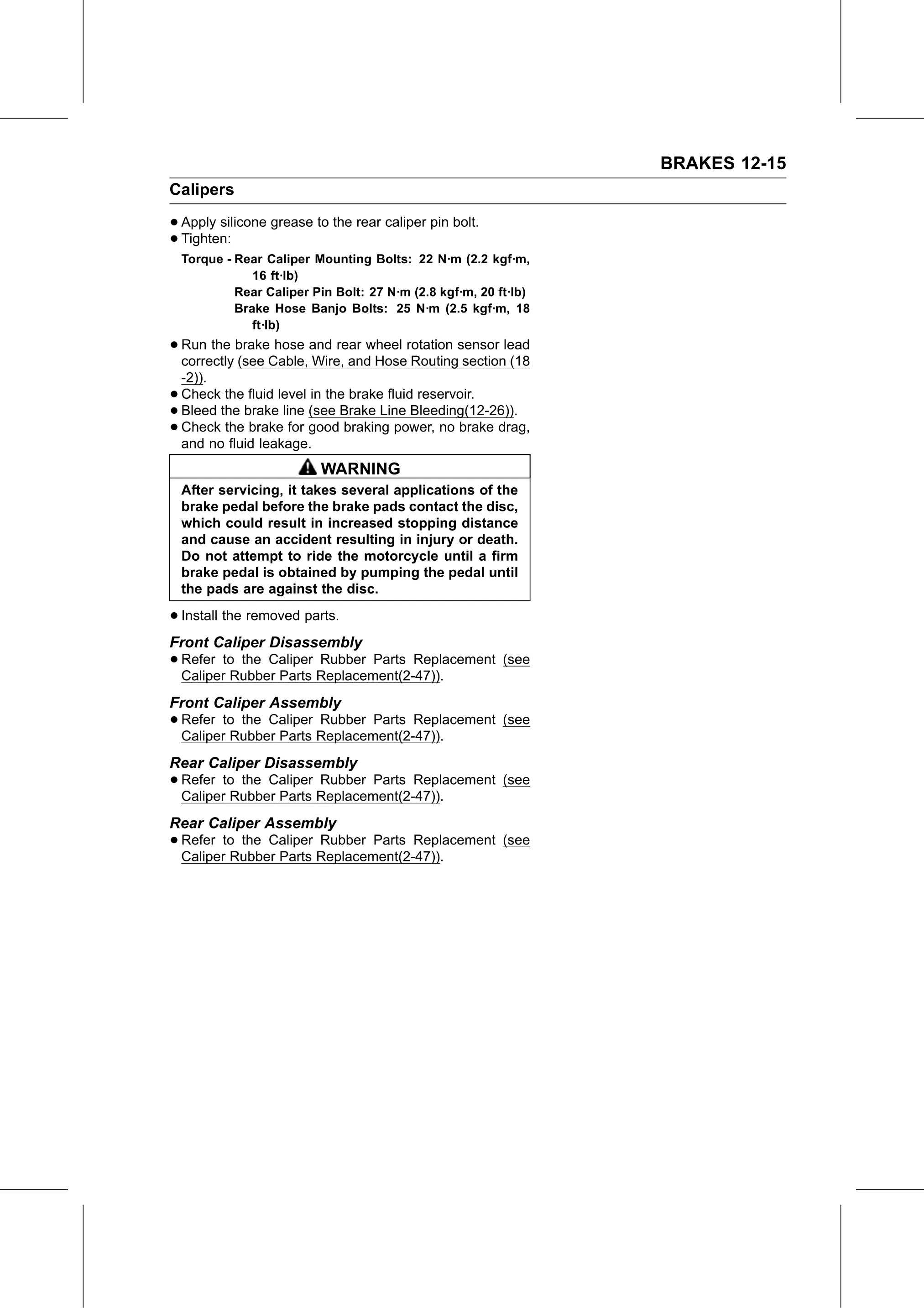

BRAKES 12-15
Calipers

• Apply silicone grease to the rear caliper pin bolt.
• Tighten:
    Torque - Rear Caliper Mounting Bolts: 22 N·m (2.2 kgf·m,
                16 ft·lb)
             Rear Caliper Pin Bolt: 27 N·m (2.8 kgf·m, 20 ft·lb)
             Brake Hose Banjo Bolts: 25 N·m (2.5 kgf·m, 18
                ft·lb)
• Run  the brake hose and rear wheel rotation sensor lead
  correctly (see Cable, Wire, and Hose Routing section (18
    -2)).
•   Check the fluid level in the brake fluid reservoir.
•   Bleed the brake line (see Brake Line Bleeding(12-26)).
•   Check the brake for good braking power, no brake drag,
    and no fluid leakage.
                            WARNING
    After servicing, it takes several applications of the
    brake pedal before the brake pads contact the disc,
    which could result in increased stopping distance
    and cause an accident resulting in injury or death.
    Do not attempt to ride the motorcycle until a firm
    brake pedal is obtained by pumping the pedal until
    the pads are against the disc.

• Install the removed parts.
Front Caliper Disassembly
• Refer to the Caliper Rubber Parts Replacement (see
  Caliper Rubber Parts Replacement(2-47)).
Front Caliper Assembly
• Refer to the Caliper Rubber Parts Replacement (see
  Caliper Rubber Parts Replacement(2-47)).
Rear Caliper Disassembly
• Refer to the Caliper Rubber Parts Replacement (see
  Caliper Rubber Parts Replacement(2-47)).
Rear Caliper Assembly
• Refer to the Caliper Rubber Parts Replacement (see
  Caliper Rubber Parts Replacement(2-47)).
