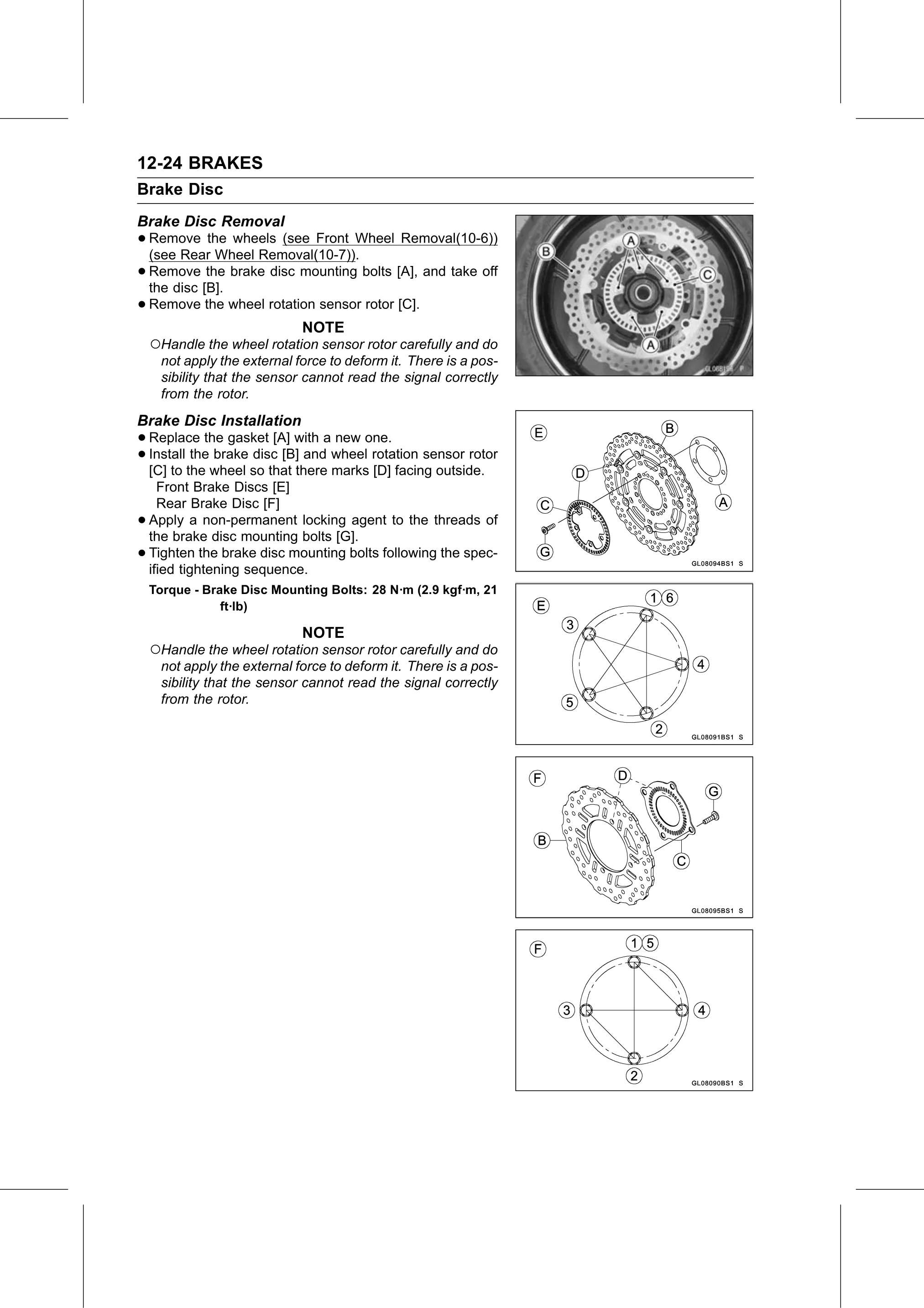

12-24 BRAKES
Brake Disc
Brake Disc Removal
• Remove    the wheels (see Front Wheel Removal(10-6))
  (see Rear Wheel Removal(10-7)).
• Remove    the brake disc mounting bolts [A], and take off
  the disc [B].
• Remove the wheel rotation sensor rotor [C].
                              NOTE
    ○Handle the wheel rotation sensor rotor carefully and do
     not apply the external force to deform it. There is a pos-
     sibility that the sensor cannot read the signal correctly
     from the rotor.
Brake Disc Installation
• Replace   the gasket [A] with a new one.
• [C] to the wheel
  Install the brake disc [B] and wheel rotation sensor rotor
                   so that there marks [D] facing outside.
      Front Brake Discs [E]
      Rear Brake Disc [F]
•   Apply a non-permanent locking agent to the threads of
    the brake disc mounting bolts [G].
•   Tighten the brake disc mounting bolts following the spec-
    ified tightening sequence.
    Torque - Brake Disc Mounting Bolts: 28 N·m (2.9 kgf·m, 21
                ft·lb)

                              NOTE
    ○Handle the wheel rotation sensor rotor carefully and do
      not apply the external force to deform it. There is a pos-
      sibility that the sensor cannot read the signal correctly
      from the rotor.
