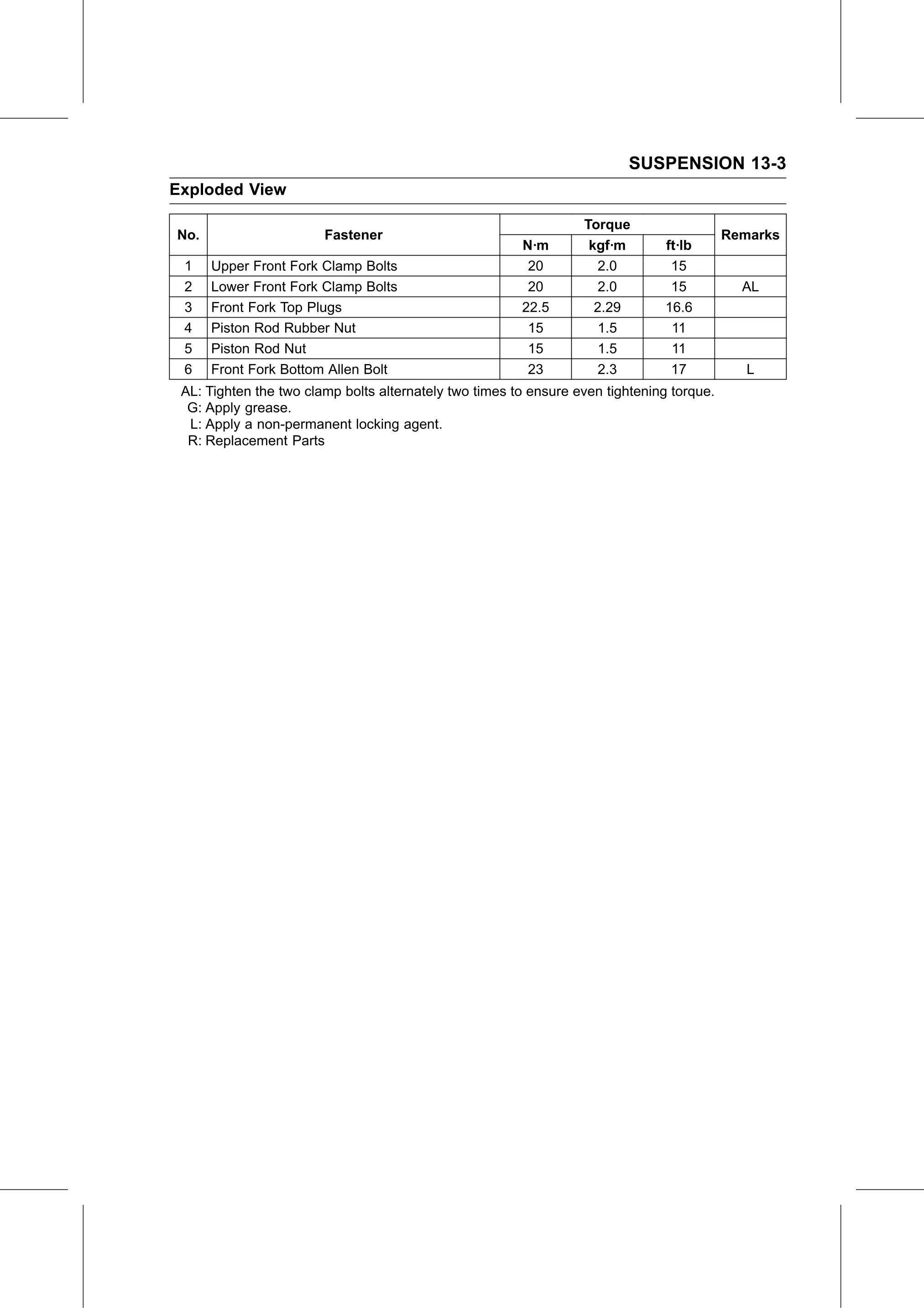

SUSPENSION 13-3
Exploded View

                                                                  Torque
No.                     Fastener                                                           Remarks
                                                        N·m        kgf·m       ft·lb
 1    Upper Front Fork Clamp Bolts                       20          2.0        15
 2    Lower Front Fork Clamp Bolts                       20          2.0        15           AL
 3    Front Fork Top Plugs                              22.5        2.29       16.6
 4    Piston Rod Rubber Nut                              15          1.5        11
 5    Piston Rod Nut                                     15          1.5        11
 6    Front Fork Bottom Allen Bolt                       23          2.3        17            L
 AL: Tighten the two clamp bolts alternately two times to ensure even tightening torque.
  G: Apply grease.
  L: Apply a non-permanent locking agent.
  R: Replacement Parts
