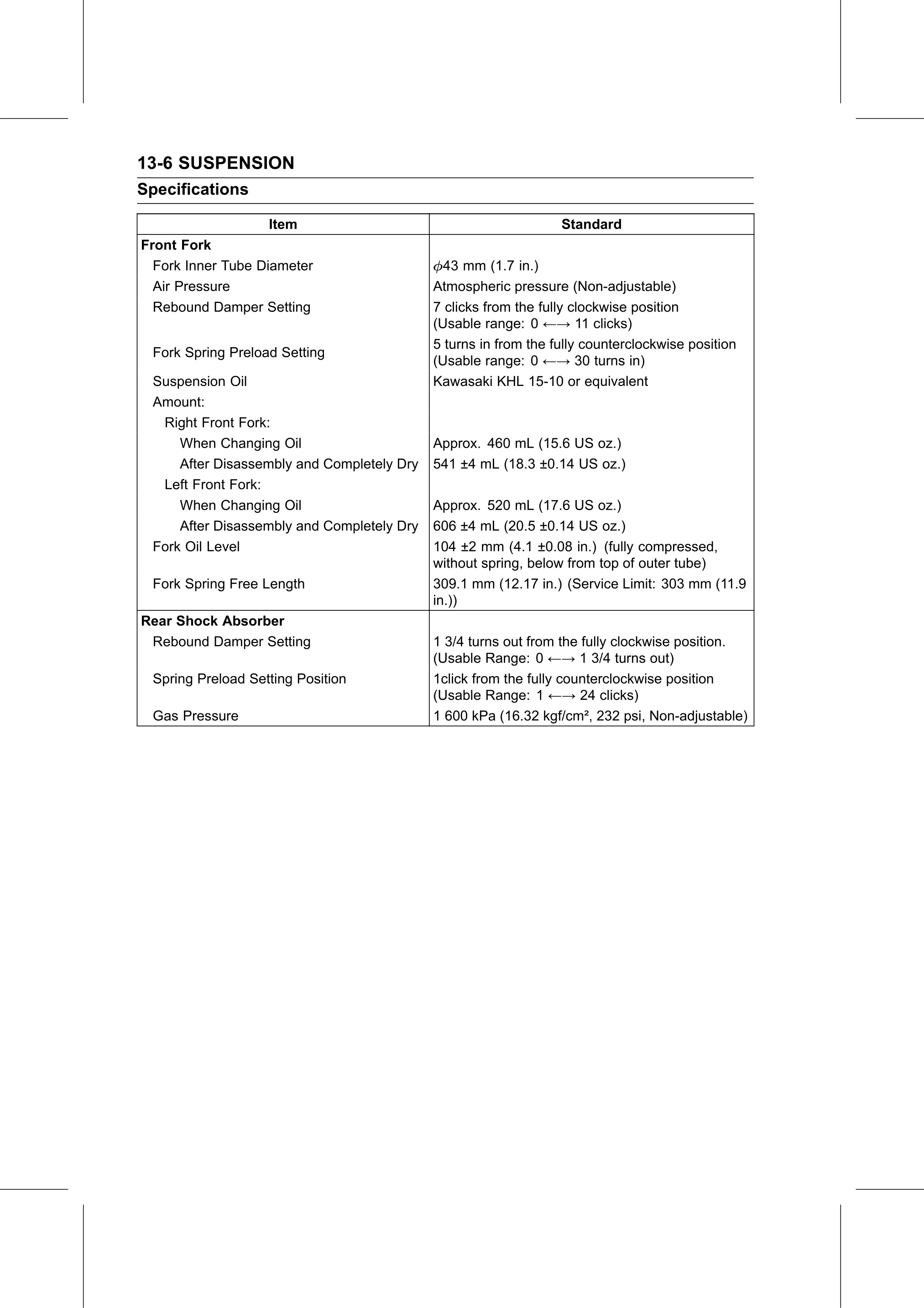

13-6 SUSPENSION
Specifications

                   Item                                          Standard
Front Fork
  Fork Inner Tube Diameter                    43 mm (1.7 in.)
  Air Pressure                              Atmospheric pressure (Non-adjustable)
  Rebound Damper Setting                    7 clicks from the fully clockwise position
                                            (Usable range: 0 ←→ 11 clicks)
                                            5 turns in from the fully counterclockwise position
 Fork Spring Preload Setting
                                            (Usable range: 0 ←→ 30 turns in)
 Suspension Oil                             Kawasaki KHL 15-10 or equivalent
 Amount:
  Right Front Fork:
     When Changing Oil                      Approx. 460 mL (15.6 US oz.)
     After Disassembly and Completely Dry   541 ±4 mL (18.3 ±0.14 US oz.)
  Left Front Fork:
     When Changing Oil                      Approx. 520 mL (17.6 US oz.)
     After Disassembly and Completely Dry   606 ±4 mL (20.5 ±0.14 US oz.)
 Fork Oil Level                             104 ±2 mm (4.1 ±0.08 in.) (fully compressed,
                                            without spring, below from top of outer tube)
 Fork Spring Free Length                    309.1 mm (12.17 in.) (Service Limit: 303 mm (11.9
                                            in.))
Rear Shock Absorber
 Rebound Damper Setting                     1 3/4 turns out from the fully clockwise position.
                                            (Usable Range: 0 ←→ 1 3/4 turns out)
 Spring Preload Setting Position            1click from the fully counterclockwise position
                                            (Usable Range: 1 ←→ 24 clicks)
 Gas Pressure                               1 600 kPa (16.32 kgf/cm², 232 psi, Non-adjustable)
