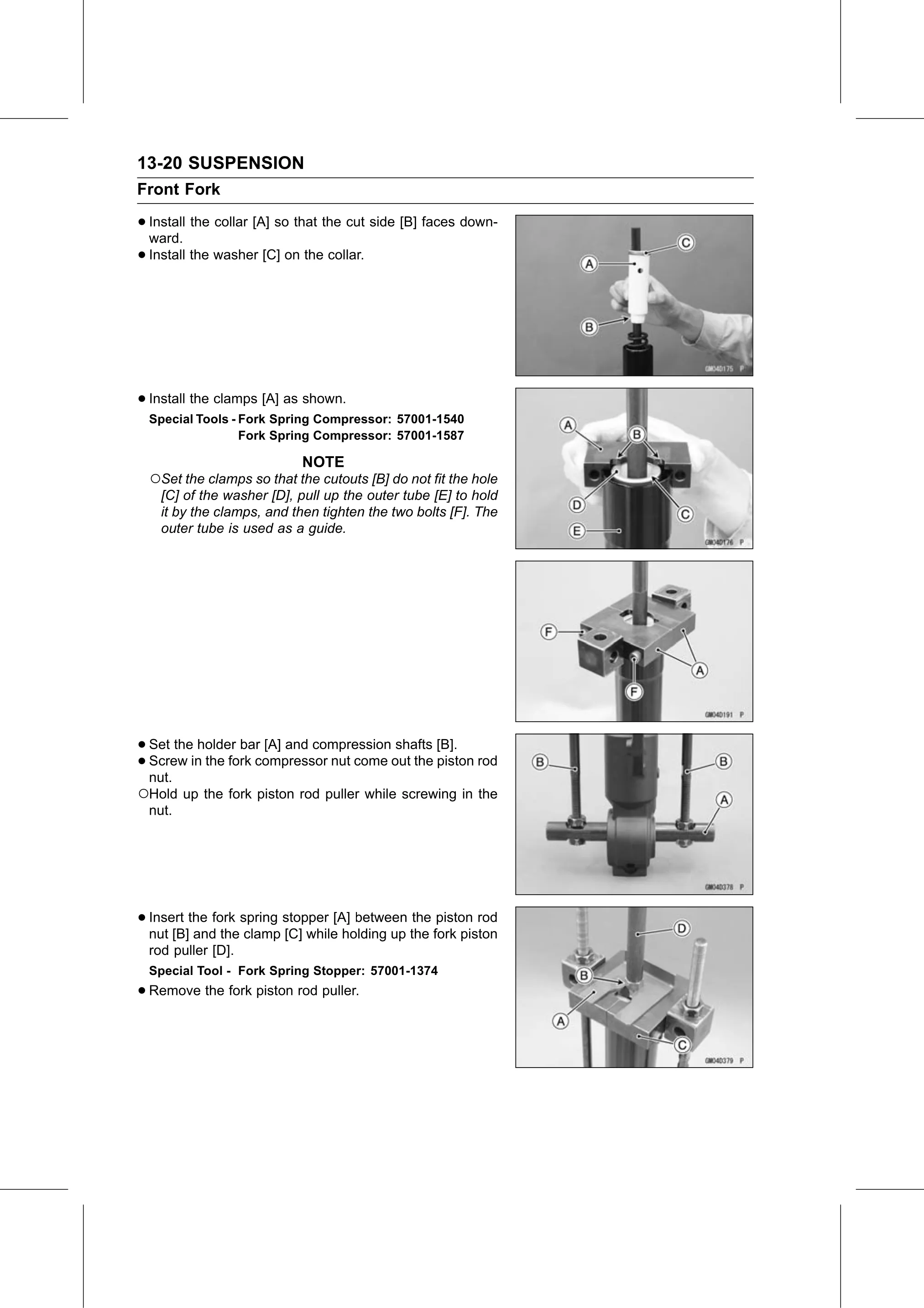

13-20 SUSPENSION
Front Fork

• Install
  ward.
          the collar [A] so that the cut side [B] faces down-

• Install the washer [C] on the collar.

• Install the clamps [A] as shown.
  Special Tools - Fork Spring Compressor: 57001-1540
                  Fork Spring Compressor: 57001-1587

                           NOTE
  ○Set the clamps so that the cutouts [B] do not fit the hole
    [C] of the washer [D], pull up the outer tube [E] to hold
    it by the clamps, and then tighten the two bolts [F]. The
    outer tube is used as a guide.

• Set  the holder bar [A] and compression shafts [B].
• Screw
  nut.
          in the fork compressor nut come out the piston rod

○Hold up the fork piston rod puller while screwing in the
  nut.

• Insert the fork spring stopper [A] between the piston rod
  nut [B] and the clamp [C] while holding up the fork piston
  rod puller [D].
  Special Tool - Fork Spring Stopper: 57001-1374
• Remove the fork piston rod puller.
