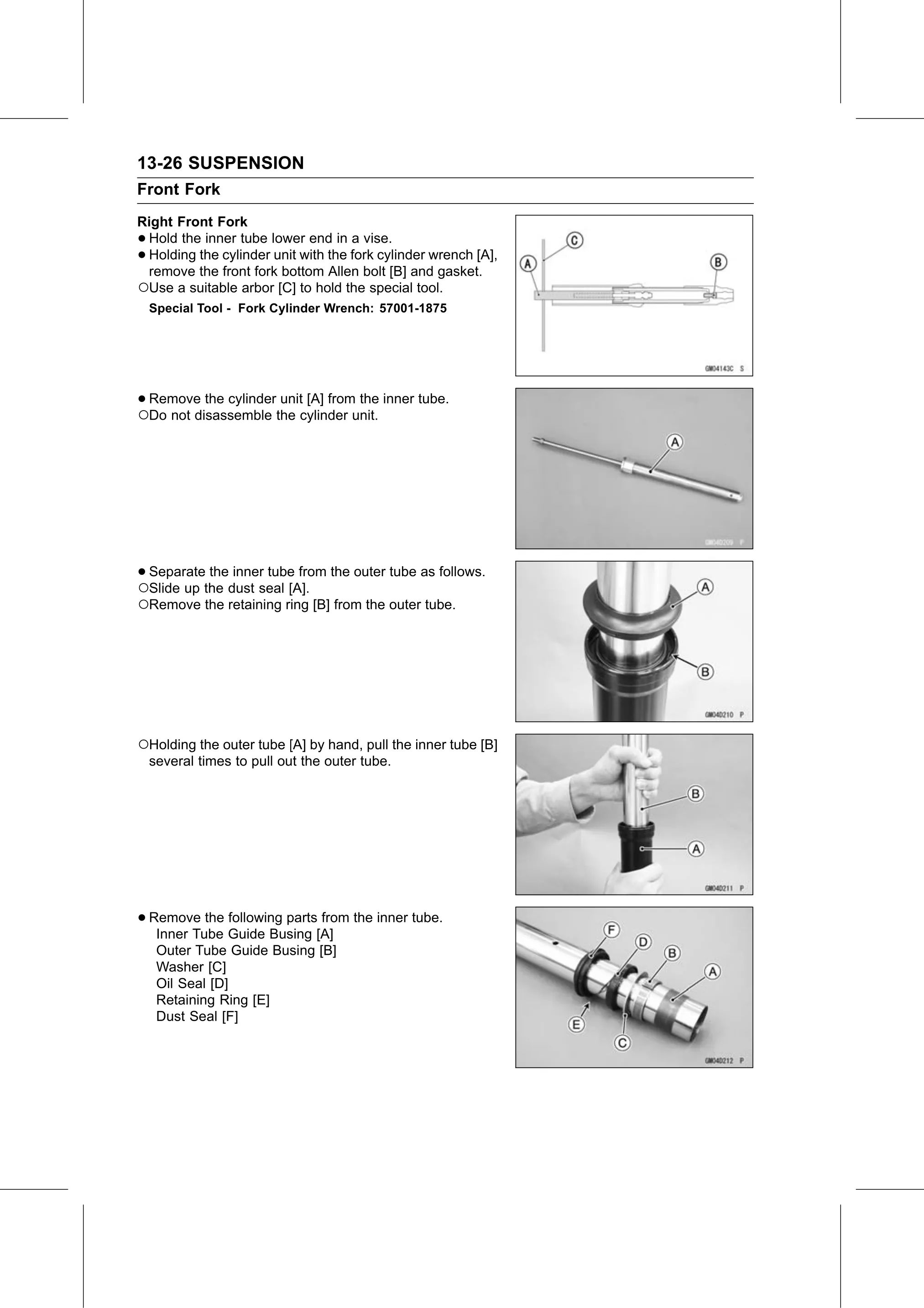

13-26 SUSPENSION
Front Fork
Right Front Fork
•Hold the inner tube lower end in a vise.
•Holding the cylinder unit with the fork cylinder wrench [A],
 remove the front fork bottom Allen bolt [B] and gasket.
○Use a suitable arbor [C] to hold the special tool.
    Special Tool - Fork Cylinder Wrench: 57001-1875

•○Remove   the cylinder unit [A] from the inner tube.
  Do not disassemble the cylinder unit.

•○Separate  the inner tube from the outer tube as follows.
  Slide up the dust seal [A].
○Remove the retaining ring [B] from the outer tube.

○Holding the outer tube [A] by hand, pull the inner tube [B]
    several times to pull out the outer tube.

• Remove   the following parts from the inner tube.
   Inner Tube Guide Busing [A]
     Outer Tube Guide Busing [B]
     Washer [C]
     Oil Seal [D]
     Retaining Ring [E]
     Dust Seal [F]
