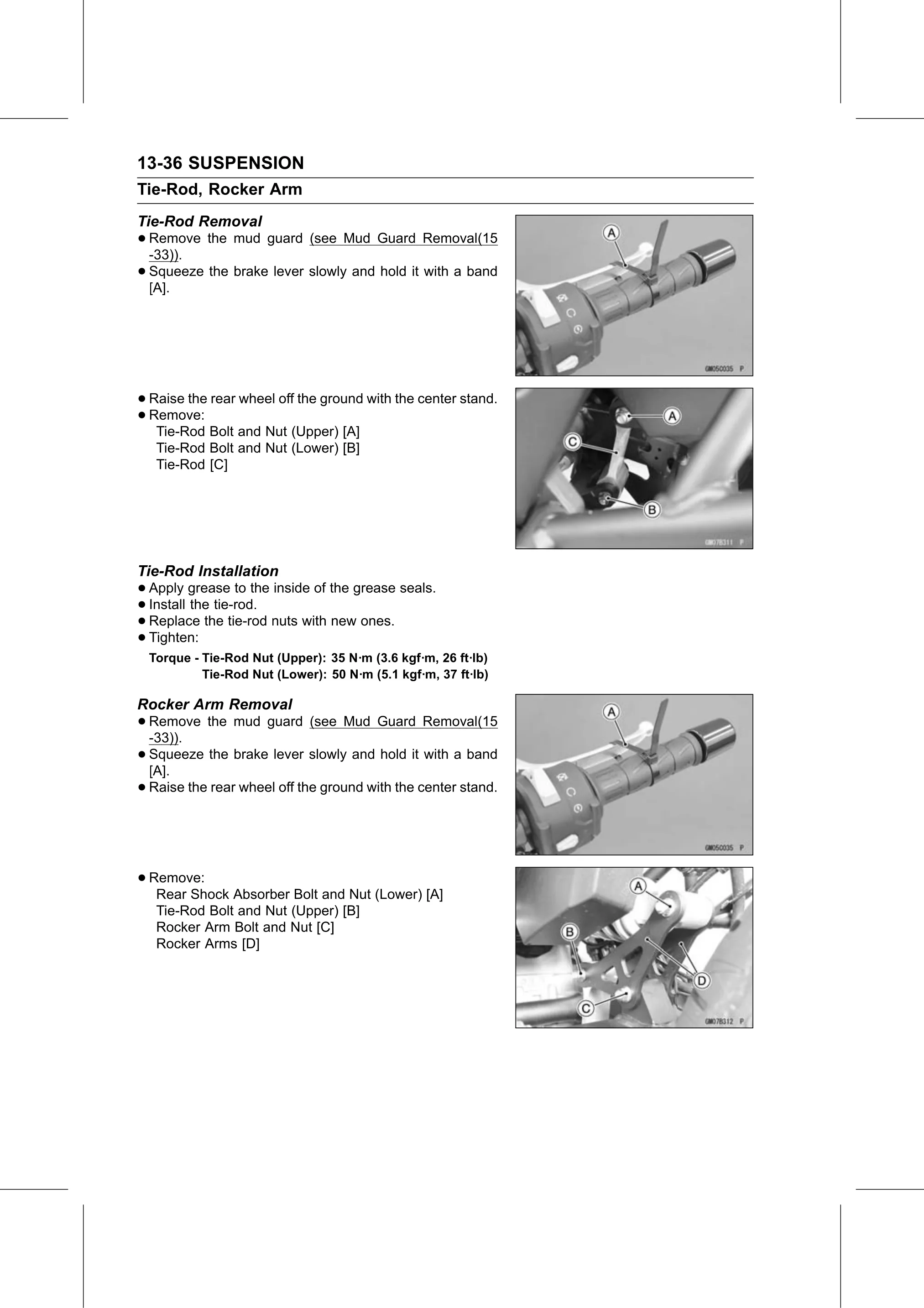

13-36 SUSPENSION
Tie-Rod, Rocker Arm
Tie-Rod Removal
• Remove
  -33)).
          the mud guard (see Mud Guard Removal(15

• Squeeze
  [A].
          the brake lever slowly and hold it with a band

• Raise the rear wheel off the ground with the center stand.
• Tie-Rod Bolt and Nut (Upper) [A]
  Remove:

   Tie-Rod Bolt and Nut (Lower) [B]
   Tie-Rod [C]

Tie-Rod Installation
• Apply   grease to the inside of the grease seals.
• Install the tie-rod.
• Tighten: the tie-rod nuts with new ones.
  Replace
•
  Torque - Tie-Rod Nut (Upper): 35 N·m (3.6 kgf·m, 26 ft·lb)
           Tie-Rod Nut (Lower): 50 N·m (5.1 kgf·m, 37 ft·lb)

Rocker Arm Removal
• Remove
  -33)).
           the mud guard (see Mud Guard Removal(15

• Squeeze
  [A].
            the brake lever slowly and hold it with a band

• Raise the rear wheel off the ground with the center stand.

• Remove:
   Rear Shock Absorber Bolt and Nut (Lower) [A]
   Tie-Rod Bolt and Nut (Upper) [B]
   Rocker Arm Bolt and Nut [C]
   Rocker Arms [D]
