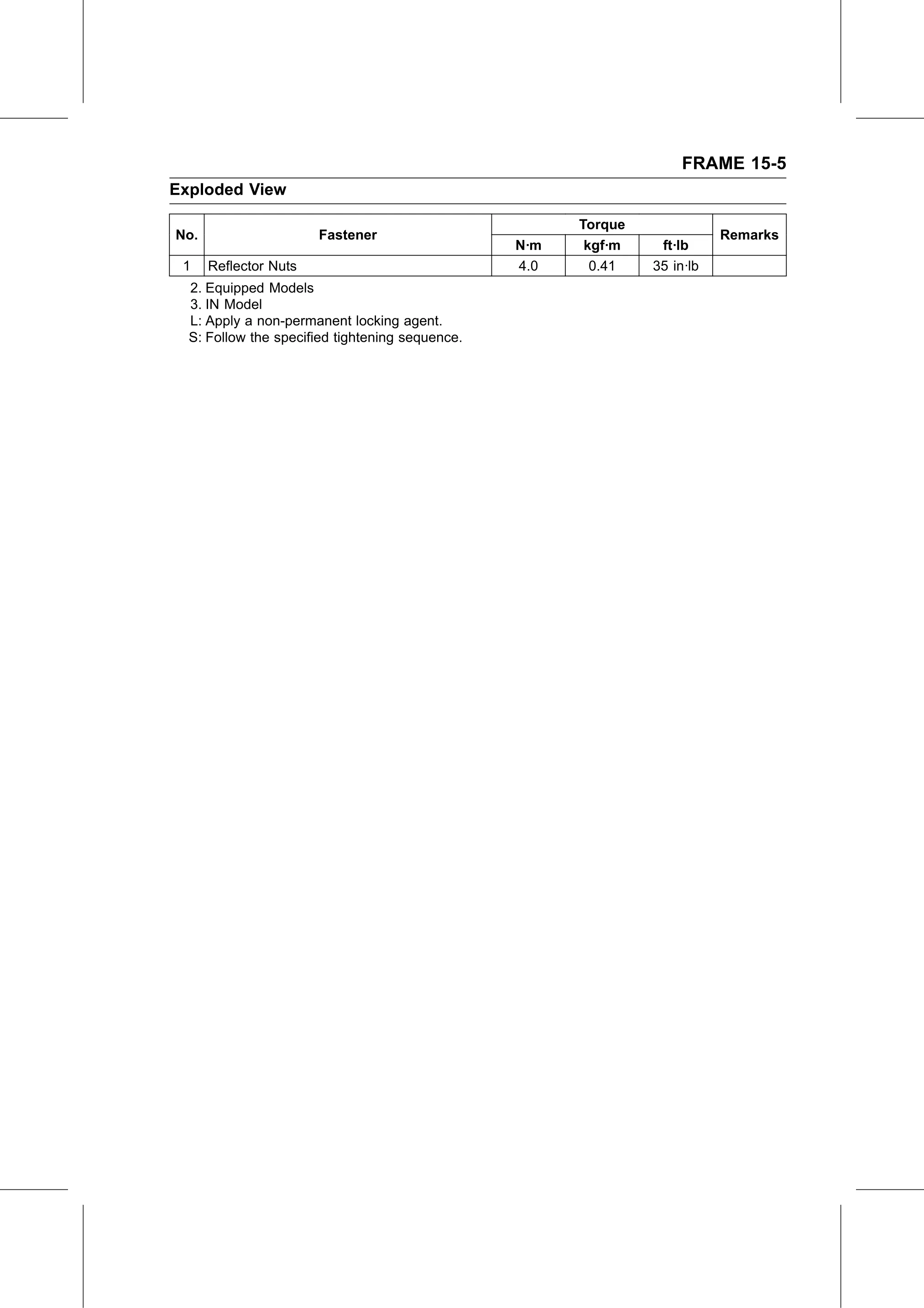

FRAME 15-5
Exploded View

                                                       Torque
No.                    Fastener                                            Remarks
                                                 N·m    kgf·m    ft·lb
 1    Reflector Nuts                             4.0     0.41   35 in·lb
  2. Equipped Models
  3. IN Model
  L: Apply a non-permanent locking agent.
  S: Follow the specified tightening sequence.
