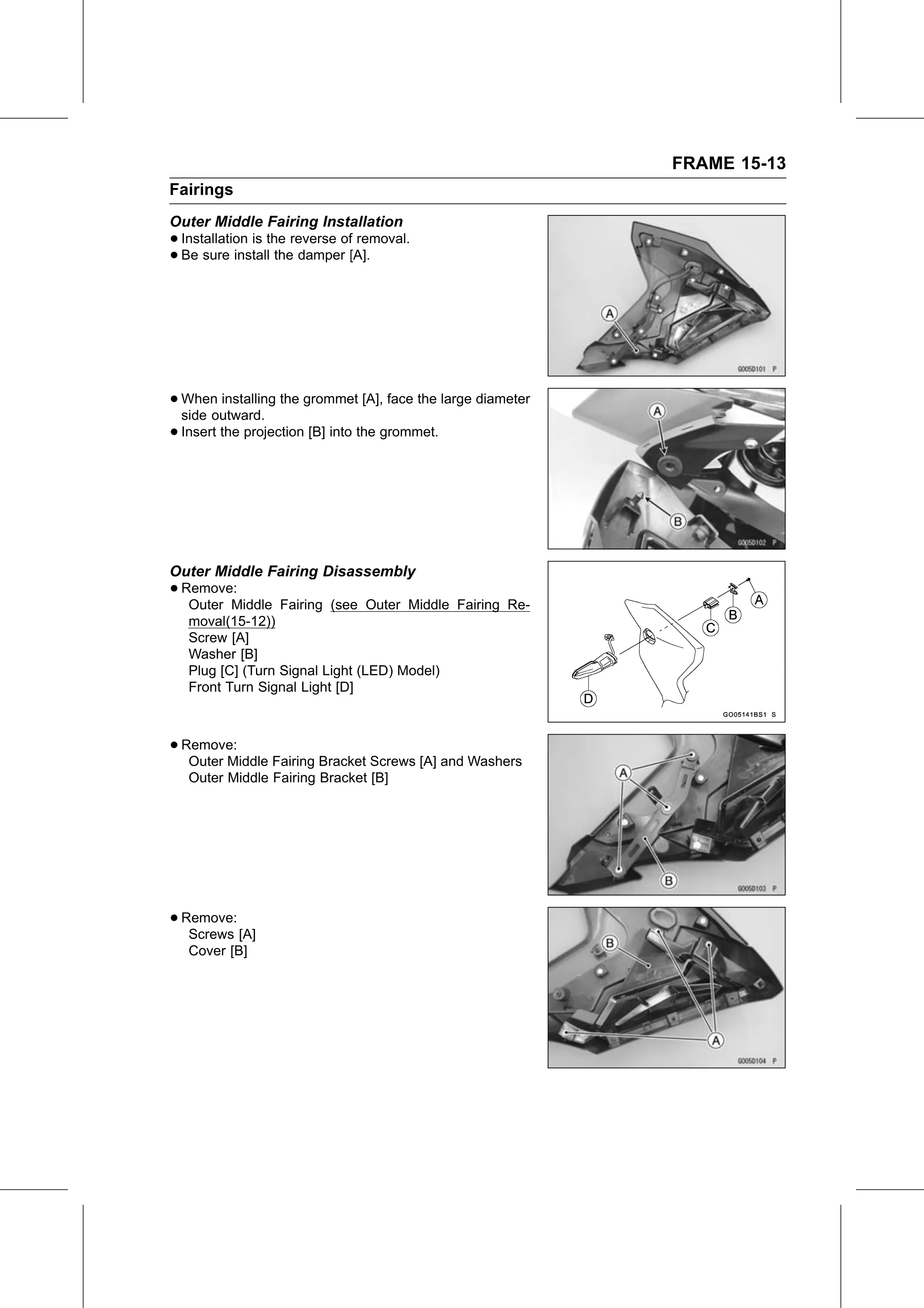

FRAME 15-13
Fairings
Outer Middle Fairing Installation
• Installation is the reverse of removal.
• Be sure install the damper [A].

• When   installing the grommet [A], face the large diameter
  side outward.
• Insert the projection [B] into the grommet.

Outer Middle Fairing Disassembly
• Remove:
   Outer Middle Fairing (see Outer Middle Fairing Re-
   moval(15-12))
   Screw [A]
   Washer [B]
   Plug [C] (Turn Signal Light (LED) Model)
   Front Turn Signal Light [D]

• Remove:
   Outer Middle Fairing Bracket Screws [A] and Washers
   Outer Middle Fairing Bracket [B]

• Remove:
   Screws [A]
   Cover [B]
