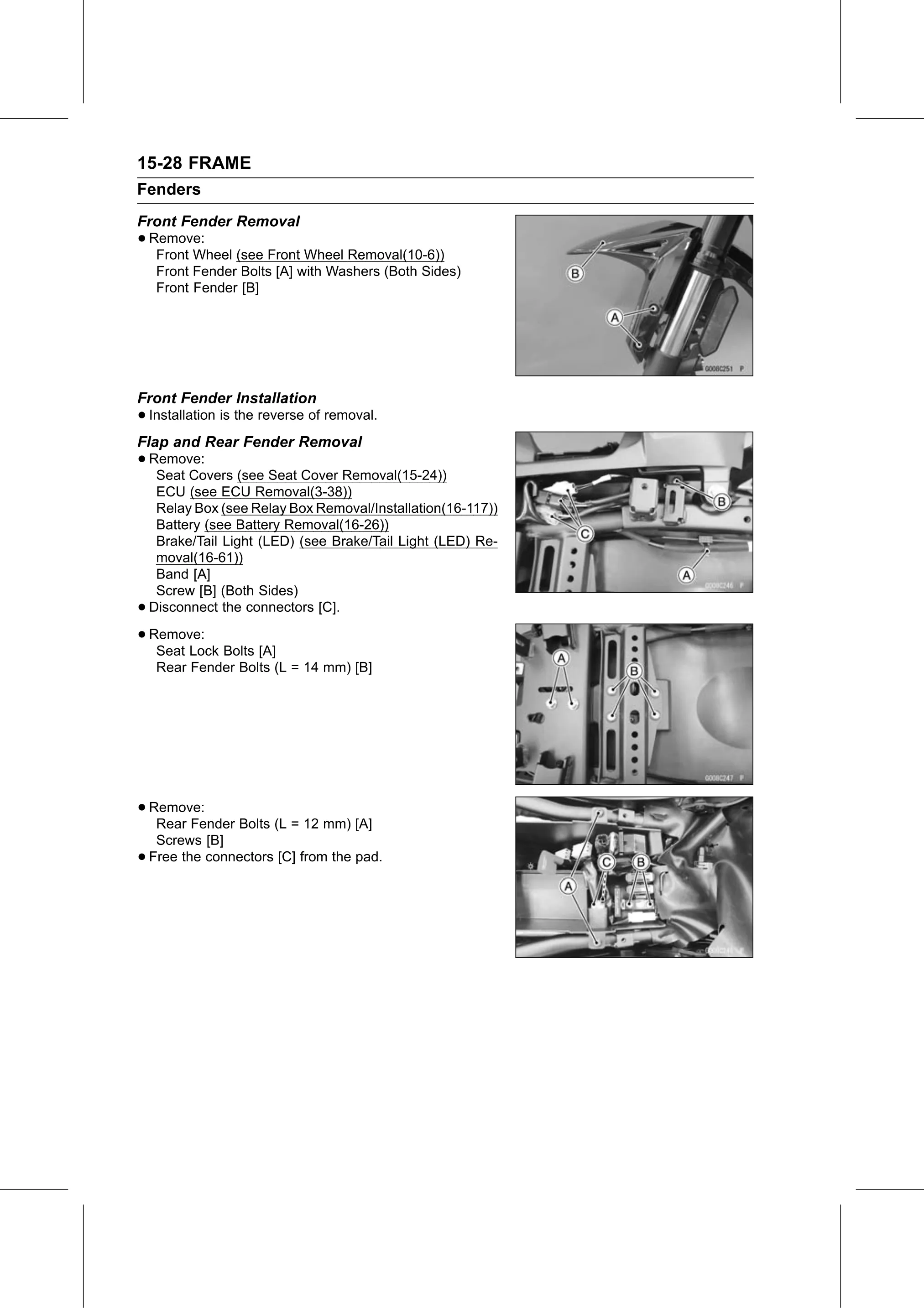

15-28 FRAME
Fenders
Front Fender Removal
• Remove:
   Front Wheel (see Front Wheel Removal(10-6))
     Front Fender Bolts [A] with Washers (Both Sides)
     Front Fender [B]

Front Fender Installation
• Installation is the reverse of removal.
Flap and Rear Fender Removal
• Remove:
   Seat Covers (see Seat Cover Removal(15-24))
     ECU (see ECU Removal(3-38))
     Relay Box (see Relay Box Removal/Installation(16-117))
     Battery (see Battery Removal(16-26))
     Brake/Tail Light (LED) (see Brake/Tail Light (LED) Re-
     moval(16-61))
     Band [A]
     Screw [B] (Both Sides)
•   Disconnect the connectors [C].

• Remove:
   Seat Lock Bolts [A]
     Rear Fender Bolts (L = 14 mm) [B]

• Remove:
   Rear Fender Bolts (L = 12 mm) [A]
     Screws [B]
•   Free the connectors [C] from the pad.
