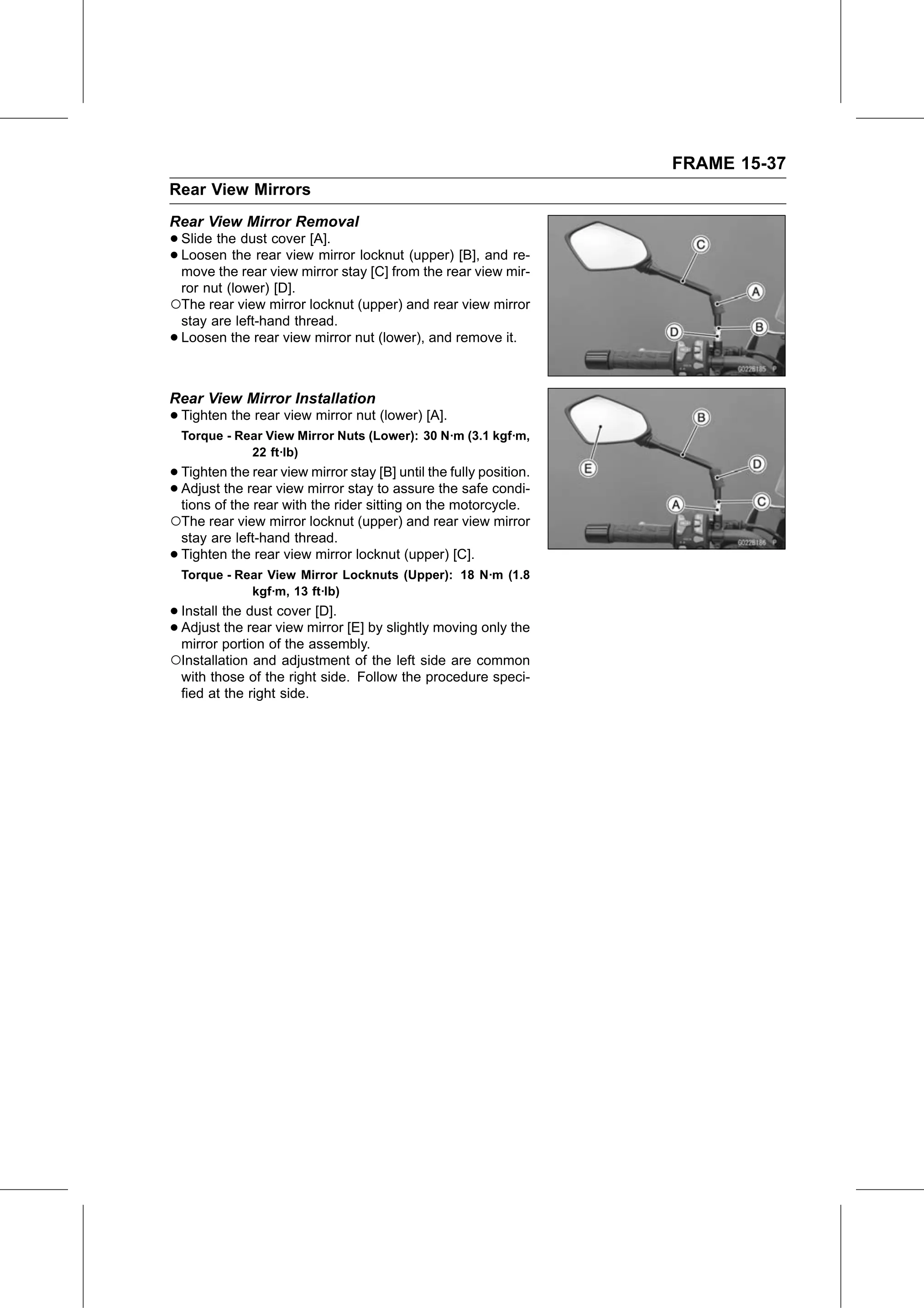

FRAME 15-37
Rear View Mirrors
Rear View Mirror Removal
• Slide the dust cover [A].
• Loosen  the rear view mirror locknut (upper) [B], and re-
  move the rear view mirror stay [C] from the rear view mir-
 ror nut (lower) [D].
○The rear view mirror locknut (upper) and rear view mirror
 stay are left-hand thread.
•Loosen the rear view mirror nut (lower), and remove it.

Rear View Mirror Installation
• Tighten the rear view mirror nut (lower) [A].
    Torque - Rear View Mirror Nuts (Lower): 30 N·m (3.1 kgf·m,
               22 ft·lb)
• Tighten  the rear view mirror stay [B] until the fully position.
• tions of therear
  Adjust the       view mirror stay to assure the safe condi-
               rear with the rider sitting on the motorcycle.
○The rear view mirror locknut (upper) and rear view mirror
    stay are left-hand thread.
•   Tighten the rear view mirror locknut (upper) [C].
    Torque - Rear View Mirror Locknuts (Upper): 18 N·m (1.8
               kgf·m, 13 ft·lb)
• Install the dust cover [D].
• mirror portion
  Adjust  the rear view mirror [E] by slightly moving only the
                 of the assembly.
○Installation and adjustment of the left side are common
    with those of the right side. Follow the procedure speci-
    fied at the right side.
